Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%)

Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%)

automatic vial filling machine

high speed liquid filling system

cosmetic liquid filling machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQZPG

Contact Us
Request A Quote
Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%)
Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%) Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%) Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%) Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%) Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%)
Product Details
Machine Speed:
80bpm Max
Pump Choosing:
XQX2 Ceramic Pump(2-25ml)
Filling Error:
±0.55%
Machine Dimension:
121*60*50cm
Weight:
76 KGS
Driven Mode:
Full Electric
Highlight:

automatic vial filling machine

,

high speed liquid filling system

,

cosmetic liquid filling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing(130*75*75cm)
Delivery Time
20 Days
Payment Terms
T/T
Supply Ability
20 SETS per Month
RELATED PRODUCTS
Good price Cosmetic Cream Filling Machine with Modbus 485 Communication No-Fill Protection and Quick Bottle Diameter Switching online video

Cosmetic Cream Filling Machine with Modbus 485 Communication No-Fill Protection and Quick Bottle Diameter Switching

Get Best Price
Good price Semi-Automatic Desktop Bottle Filling Machine with 304 Stainless Steel Frame and 0.3-2.8ml Filling Range at 32-40 BPM online video

Semi-Automatic Desktop Bottle Filling Machine with 304 Stainless Steel Frame and 0.3-2.8ml Filling Range at 32-40 BPM

Get Best Price
Good price Stainless Steel Desktop Bottle Filling Machine with Foot Pedal Control and Ceramic Pump for Compact Workspaces online video

Stainless Steel Desktop Bottle Filling Machine with Foot Pedal Control and Ceramic Pump for Compact Workspaces

Get Best Price
Good price Desktop High Speed 11998 BPH Liquid Filling Machine with Double Lane Mold Filling and Corrosion Resistant Stainless Steel 304 online video

Desktop High Speed 11998 BPH Liquid Filling Machine with Double Lane Mold Filling and Corrosion Resistant Stainless Steel 304

Get Best Price
Contact Us
Contact Now
Product Description
Desktop Automatic Small Vial Liquid Filling Machine
High-speed filling system with double ceramic piston pump designed for cosmetic liquid filling applications.
Key Features
Intelligent Control System
  • State-of-the-art touchscreen HMI (Human-Machine Interface)
  • Programmable logic controller (PLC) for precise operation parameter settings
  • Automated self-diagnosis system for real-time monitoring and fault detection
High-Precision Ceramic Pump System
  • Premium-grade ceramic pump components for exceptional chemical resistance
  • Precision liquid volume control through adjustable pump head angle (0-360° adjustable)
  • Filling accuracy of ±0.5% with repeatability within ±0.2%
  • Suitable for various viscosities from aqueous solutions to semi-viscous fluids
Premium Construction Materials
  • Main structure constructed with 304 food-grade stainless steel (SUS304)
  • Desktop design optimized for space efficiency in cleanroom environments
  • Electropolished surfaces meet sanitary standards with Ra ≤ 0.8μm
Universal Container Compatibility
  • Specialized bottle positioning system ensures stability during filling operations
  • Adaptive clamping mechanism accommodates various container shapes
  • Anti-tip design prevents container spillage during high-speed operation
Quick-Change Bottle Adaptation System
  • Tool-free adjustment system enables rapid format changeover (<5 minutes)
  • Adjustable filling heads accommodate diameter ranges from 15mm to 120mm
  • Memory function stores up to 50 different bottle parameter presets
Industrial Communication Capabilities
  • Integrated Modbus RTU 485 protocol for seamless PLC integration
  • RS-485 interface supports baud rates up to 115200bps
  • Compatible with SCADA systems and factory automation networks
Advanced Sensor Technology
  • German-made photoelectric sensors ensure reliable bottle detection
  • No-bottle-no-fill function prevents product waste and maintains cleanliness
  • Redundant sensor array guarantees 99.9% detection accuracy
Technical Specifications
Model XQZPG-2B Double channel
Pump Head High purity ceramics
Filling Accuracy ≦±0.25%
Filling Range 0.5-2ml | 1.5-5ml | 3-10ml | 2-25ml
Bottle Diameter 12-78mm
Manufacturing Speed 40-80 PCS/min
Host Machine Size 1130×430×240(mm)
Power AC 220V 50-60Hz 650W
Product Display

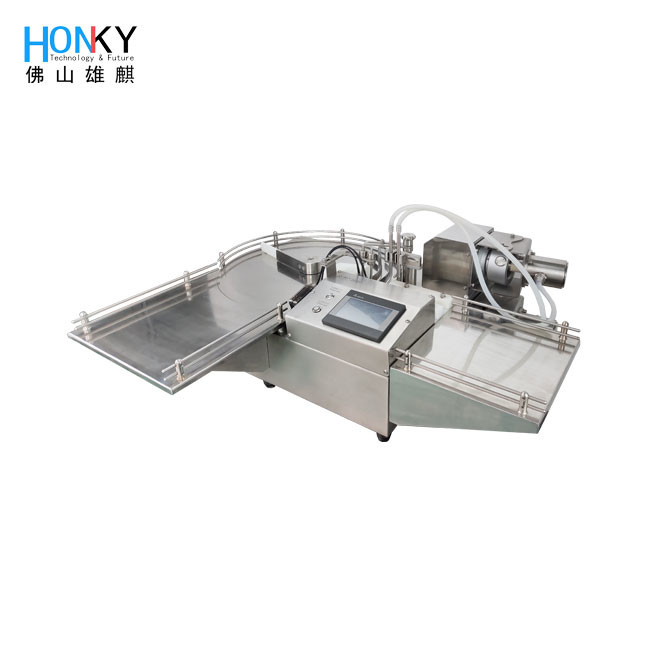

Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%) 0
Totally desktop design to cut down space cost and simplify operation

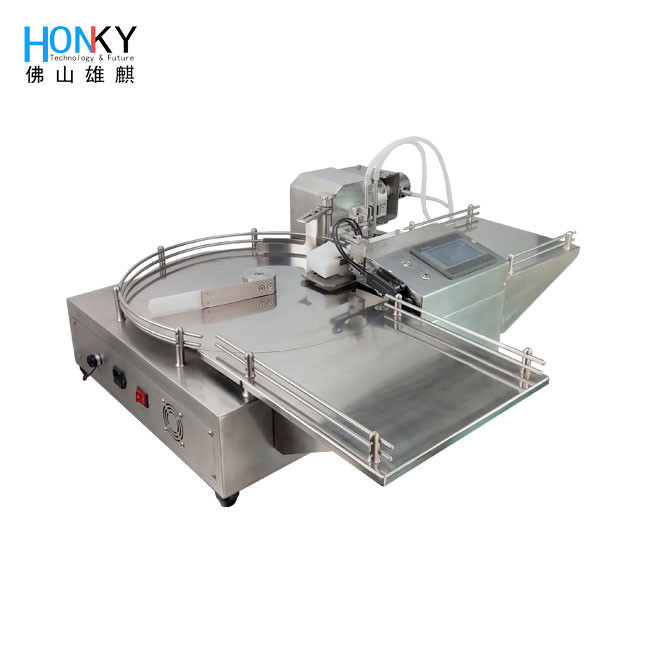

Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%) 1
Automatic dual-channel bottle loading, multi-head filling for various standing stability products

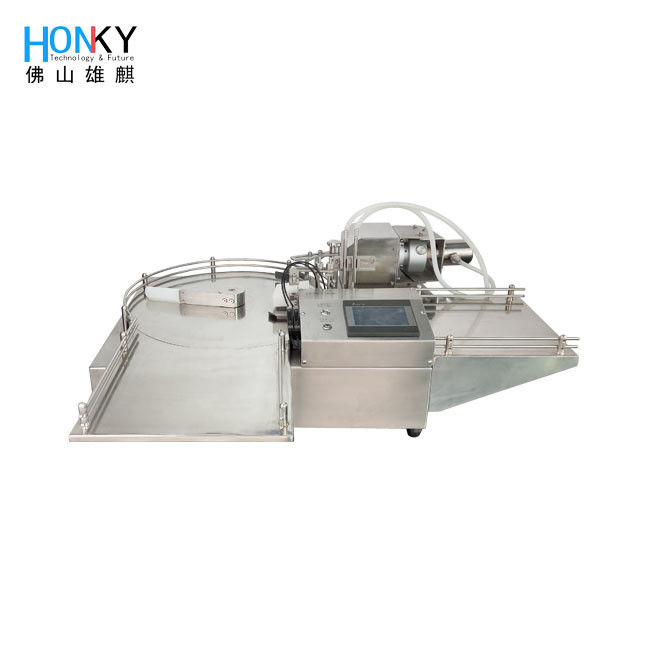

Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%) 2
Constructed from stainless steel 304 with customizable dimensions

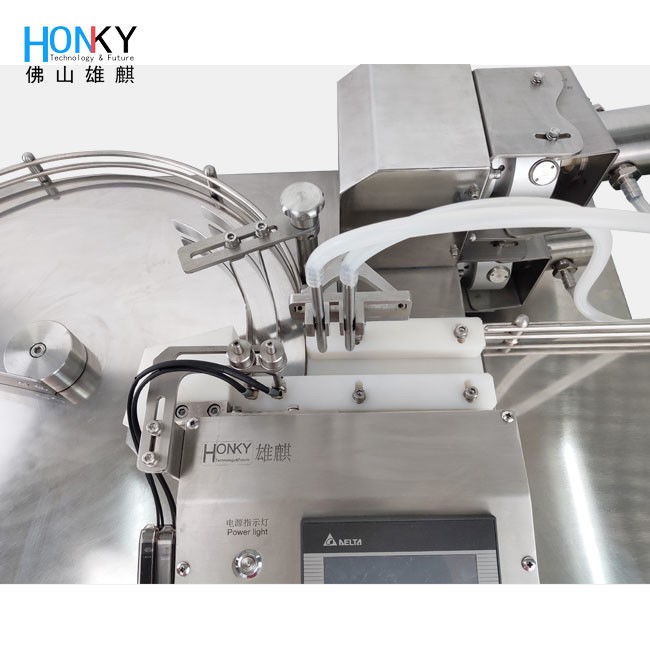

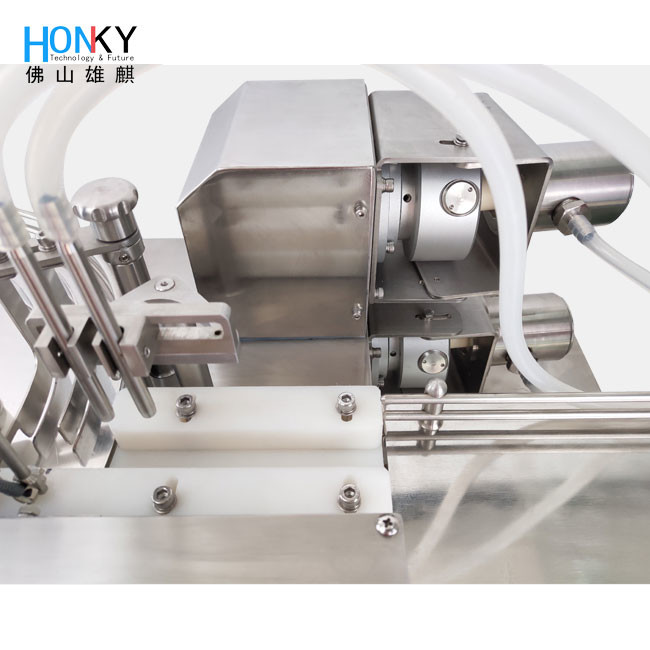

Desktop Small Vial Liquid Filling Machine with Double Ceramic Piston Pump for High Speed (80bpm) and Precision Filling (±0.55%) 3
Independent precision ceramic pump with ±0.3% repeat accuracy
