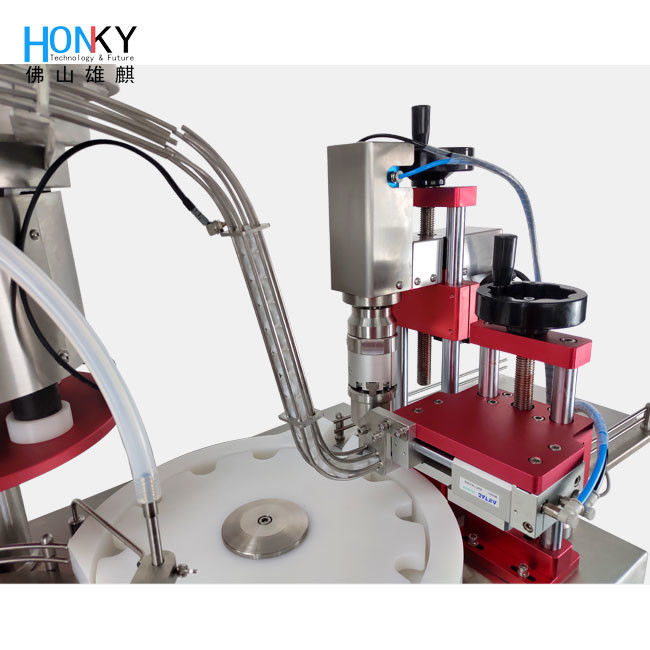

Desktop Automatic Liquid Diluent Liquid Filling Machine Capping Machine With Servo Motor Capping For Bio Reagent Packing

Desktop Automatic Liquid Diluent Liquid Filling Machine Capping Machine With Servo Motor Capping For Bio Reagent Packing

Characteristic of Desktop Automatic Liquid Diluent Liquid Filling Machine Capping Machine

XQXG-30S is a fully automatic, bench-top filling-and-capping monoblock engineered for small-batch reagent-bottle production in laboratories, R&D centers, CMOs and CROs. By integrating precision dosing, servo-driven capping and GMP-grade cleanability into a footprint smaller than 2 m², the machine converts manual or semi-automatic workflows into true “one-button” unattended operation.

Ultra-precision filling
• XQX2 ceramic pump: 99.5 % alumina, seal-less, valve-less; 0.1 % filling accuracy, 0.5 % repeatability.
• Range 0.5–30 mL without pump change; recipe-driven parameter mapping.
• Servo motor + 24-bit encoder; vacuum suck-back eliminates drips and stringing.
• Pump lifetime > 50 million cycles, maintenance-free.

Servo capping system
• 400 W servo motor with planetary reducer; torque 0.1–1.5 N·m, 0.01 N·m resolution.
• Quick-change capping heads for 13 mm, 20 mm, 28 mm and 32 mm caps (30 s swap).

• Three-step “tighten-loosen-retighten” algorithm; rejects skewed, missing or cross-threaded caps automatically.


Hygienic construction
• Full 304 stainless-steel enclosure, Ra ≤ 0.4 µm; alcohol and hypochlorite compatible.
• Sloped, screw-free table with integrated drain; complete wipe-down in < 5 min.
• Cable and pneumatic routing concealed at rear; zero dead-leg surfaces.

Throughput & flexibility
• Up to 25 bottles/min (5 mL example); 30 000 bottles/day in 24 h continuous mode.
• Ideal for PCR kits, ELISA reagents, magnetic-bead suspensions, calibrators, buffers and other high-value/low-volume liquids.


Plug-and-play convenience
• Single-phase 220 V, 600 W max; no compressed air required.
• Weight 120 kg with concealed locking casters; one person can roll the unit between lines.
• Tool-less disassembly; routine cleaning only monthly 75 % alcohol flush.

Technical data of Desktop Automatic Liquid Diluent Liquid Filling Machine Capping Machine


Product display of Desktop Automatic Liquid Diluent Liquid Filling Machine Capping Machine


The compatible design combines the filling, cap loading, and capping in one small space.

Advantages for using the ceramic pump:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface

Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;

Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
