| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX2 |
| Minimum Order Quantity: | 1 Set |
| Price: | USD 2000-2001 Per Set |
| Packaging Details: | Wooden packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 500 Sets Per Month |
| Material: | High Purity Alumina(Al2O3), Zirconia(ZrO2), Silicon Carbide(SiC), Etc. | Filling Accuracy: | ±0.5% |
|---|---|---|---|
| Power: | 75-240W | Warranty: | 1 Year |
| Filling Range: | 10ul-25ml | Type: | Ceramic Plunger Pump |
| Highlight: | X2 Serie Ceramic Filling Pump,SS316L Ceramic Filling Pump,X2 Serie Ceramic Plunger Pump |
||
High Precision X2 Serie Ceramic Filling Pump Integration Small Volume
High Precision Small Volume Corrosive-Resistance Filling Pump X2 Series Ceramic Plunger Pump Integration
The rotary ceramic plunger pump assembly is a kind of plunger precision metering pump used for metering and transporting or quantitatively filling chemical liquids and high purity liquids. In the process of plunger rotating motion, the axial linear motion is generated based on the adjustable pump head angle, and the stroke is precisely adjusted to control the input and output.
Characteristic
1. The metal part of the contact material is made of 316 stainless steel. The pump body has better corrosion resistance. The operation of the pump will not produce trace impurities to pollute the liquid. Removable pump head plunger assembly for cleaning and maintenance.
2. The metering pumps of this series have very high metering accuracy and repetitive consistency, and the accuracy is better than five -thousandths of positive and negative.
3. The X2 serie is the most widely used, simple structure.
Industry applications
It can be used for matching and reforming the filling part of the packaging machine. It is suitable for filling of electrolyte, medicinal liquid, biochemical reagent, chemical liquid, essential oil, essence liquid, emulsion, perfume, nail oil and other medium-low viscosity homogeneous liquid materials.
Technical data
| Item No. | -03 | -06 | -09 | -12 | -15 | -18 | -21 | -24 | -27 |

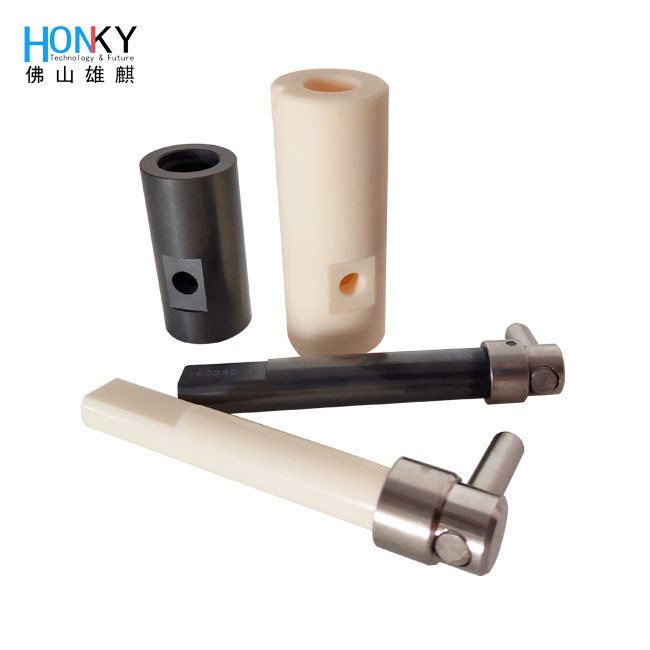

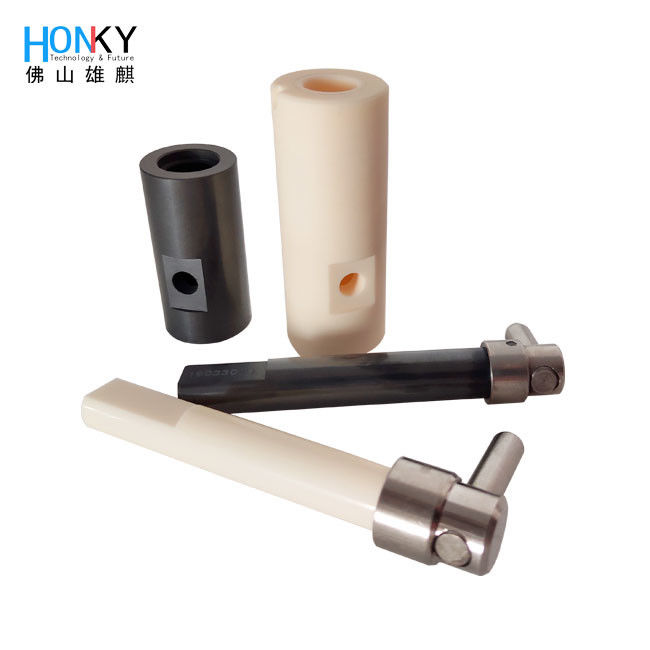

| Pump material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc. | ||||||||
| Metal part: 316L stainless steel | |||||||||
| Filling range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore diameter | φ4 | φ5 | φ7 | φ10 | φ13 | φ15 | φ22 | φ25 | φ36 |
| Motor RPM | 400 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better thatn ±0.5% | ||||||||
| Motor type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power supply | AC 220V 50/60Hz (110V optional) | ||||||||
| Power | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

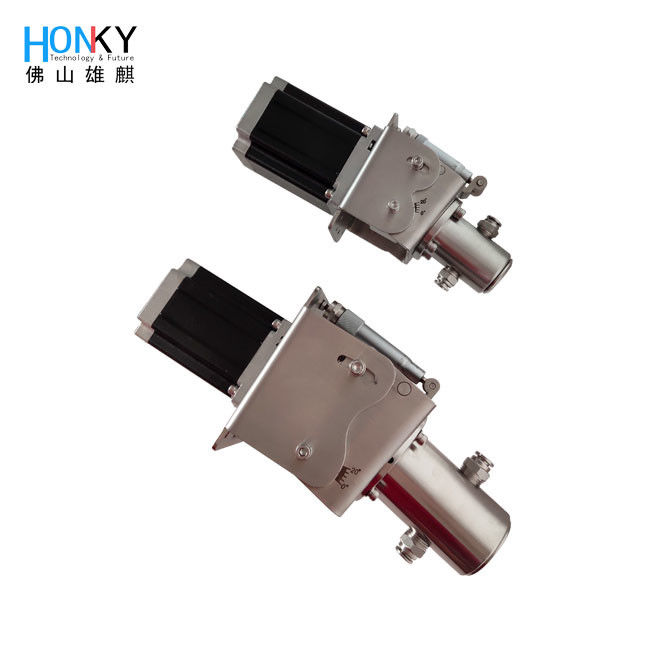

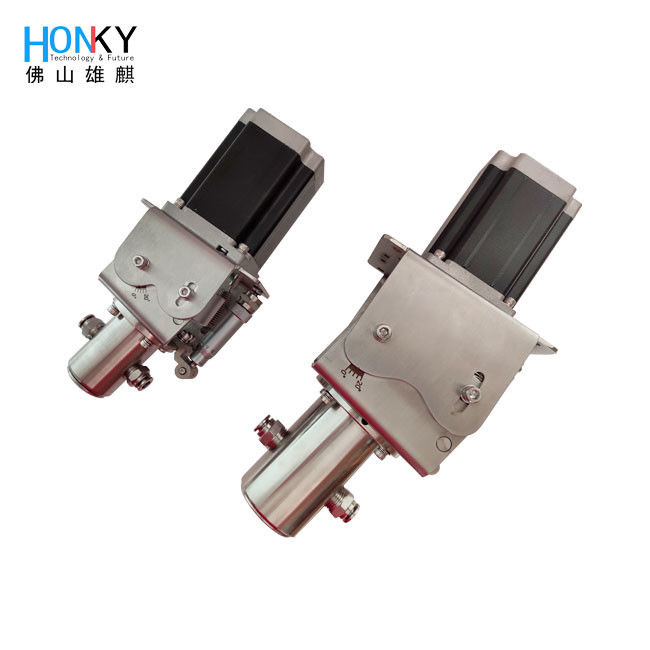

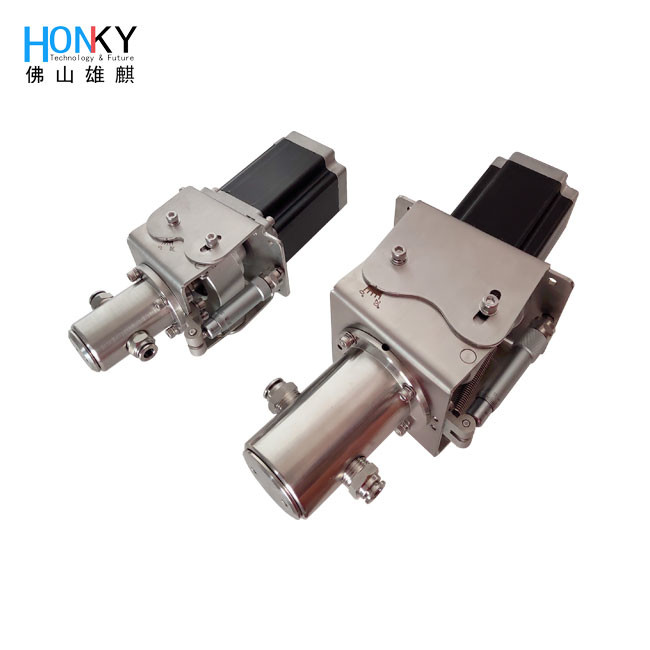

Product display
1. The metal part of the contact material is made of 316 stainless steel. The pump body has better corrosion resistance. The operation of the pump will not produce trace impurities to pollute the liquid. Removable pump head plunger assembly for cleaning and maintenance.
2. The metering pumps of this series have very high metering accuracy and repetitive consistency, and the ac- curacy is better than five-thousandths of positive and negative.
3. The X2 series is the most widely used, simple structure.
The rotary ceramic plunger pump assembly is a kind of plunger precision metering pump used for metering and transporting or quantitatively filling chemical liquids and high purity liquids. In the process of plunger rotating motion, the axial linear motion is generated based on the adjustable pump head angle, and the stroke is precisely adjusted to control the input and output.
