140ul Ceramic Filling Pump
High Precision Ceramic Filling Pump Kits For Pharma Liquid Dispensing Filling Machine Accessory
Parameter
| Item No. |
-03 |
-06 |
-09 |
-12 |
-15 |
-18 |
-21 |
-24 |
-27 |
| Pump material |

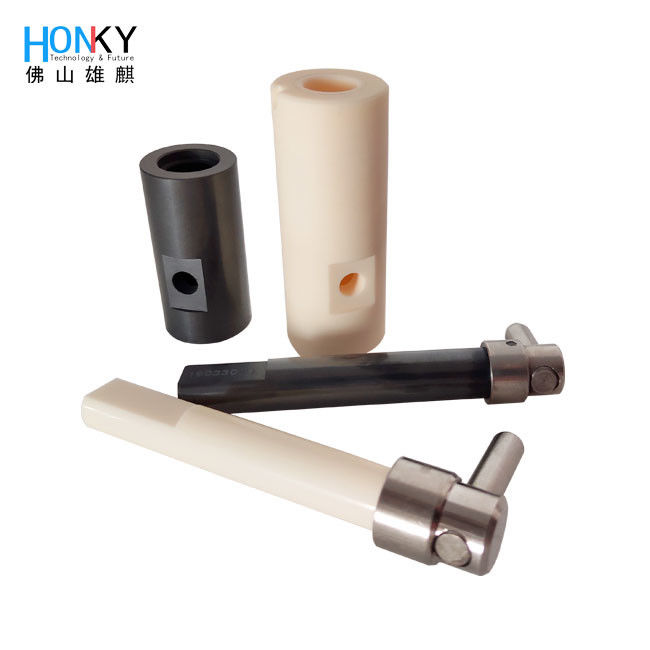

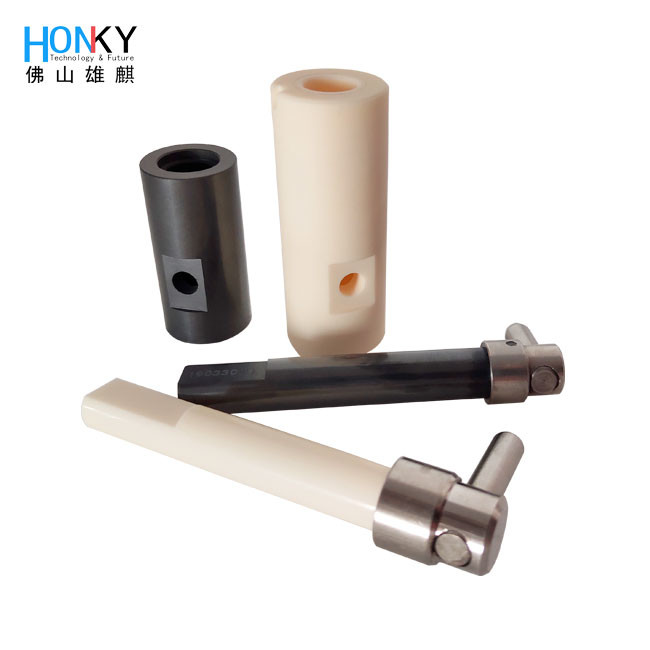

Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc. |
| Metal part: 316L stainless steel |
| Filling range |
4-80ul |
10-140ul |
20-240ul |
50-700ul |
0.2-1.5ml |
0.2-2.9ml |
0.6-6ml |
1-12ml |
2-25ml |
| Bore diameter |
φ4 |
φ5 |
φ7 |
φ10 |
φ13 |
φ15 |
φ22 |
φ25 |
φ36 |
| Motor RPM |
400 |
350 |
300 |
250 |
200 |
| Accuracy |
Better thatn ±0.5% |
| Motor type |
2 phase 4 line No.42 |
2 phase 4 line No.57 |
2 phase 4 line No.86 |
| Power supply |
AC 220V 50/60Hz (110V optional) |
| Power |
75w |
75w |
75w |
150w |
150w |
150w |
240w |
240w |
240w |
Application
1. It is widely used in precision, quantitative loading/dilution of pharmaceutical, pharmaceutical, food, chemical, cosmetic and other industries.
2. Pre-chromatography preparation, pharmaceutical QC and R&D, environmental monitoring, mineral and blood analysis, forensic identification.
3. Used for precise quantitative loading/dilution of blood, biological reagents, oral agents, injections, advanced cosmetics, flavors, fungicides and other liquids.
Product display
1. The metal part of the contact material is made of 316 stainless steel. The pump body has better corrosion resistance. The operation of the pump will not produce trace impurities to pollute the liquid. Removable pump head plunger assembly for cleaning and maintenance.
2. The metering pumps of this series have very high metering accuracy and repetitive consistency, and the ac- curacy is better than five-thousandths of positive and negative.
3. The X2 series is the most widely used, simple structure.

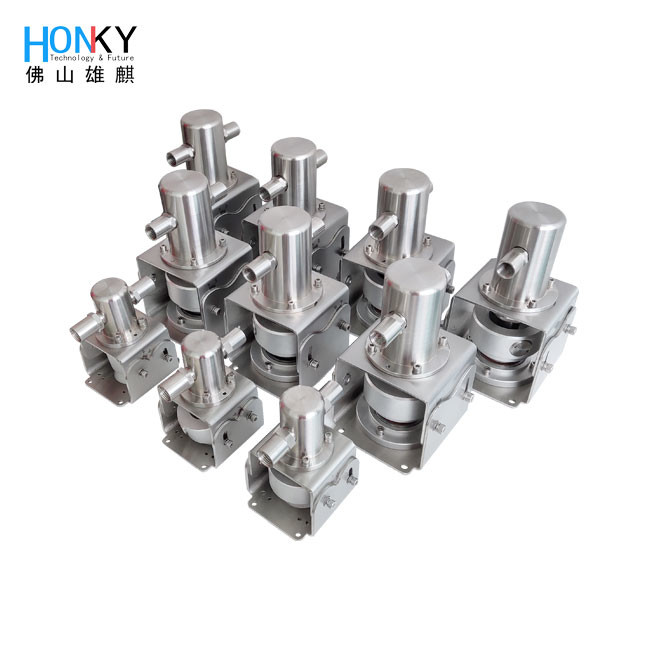

The rotary ceramic plunger pump assembly is a kind of plunger precision metering pump used for metering and transporting or quantitatively filling chemical liquids and high purity liquids. In the process of plunger rotating motion, the axial linear motion is generated based on the adjustable pump head angle, and the stroke is precisely adjusted to control the input and output.
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
