| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQJYP-2A |
| Minimum Order Quantity: | 1 |
| Price: | USD 40000-41000 PER SET |
| Packaging Details: | Wooden packing |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | 5 Set per Month |
| Filling Speed: | 40 Bottle/min | Warranty: | 12 Months |
|---|---|---|---|
| Machine Size: | 2400x1800x1760mm | Driven Mold: | Electric,Pneumatic |
| Voltage: | Customized | Certification: | CE |
| Highlight: | SUS316 Small Bottle Filling And Capping Machine,40 BPM Pneumatic Filling Machine,SUS316 Pneumatic Filling Machine |
||

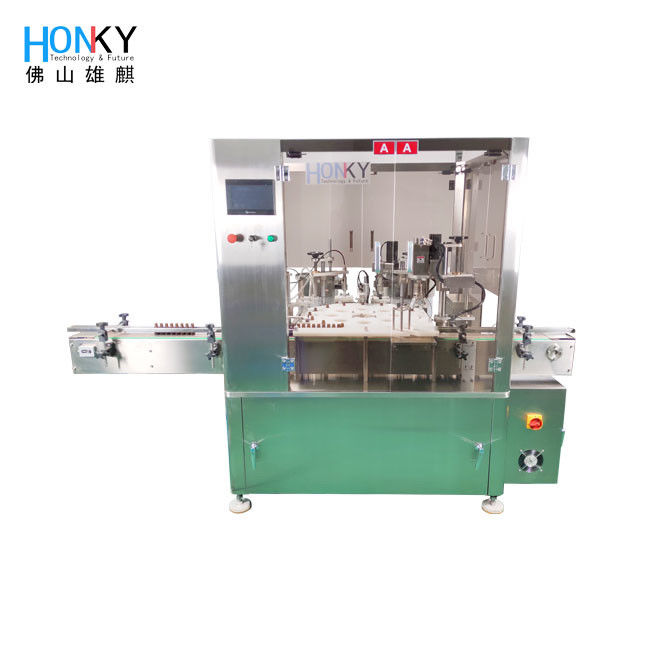

40 BPM Small Bottle Filling And Capping Machine With Pneumatic Driven Mold
2400BPH EssentialBottle Automatic Volumetric Liquid Filling And Capping Machine With Ceramic Pump For Essential Oil
Characteristic
XQJYP-2A applies an automatic filling and capping system, especially designing for filling and capping the essential oil bottle which is with the cap and plug. The filling speed is up to 40 bottles/min. The device adopts a German sensor to achieve the functions of no filling without the bottle, no capping without lids. The filling pump applies a high-precision ceramic pump to ensure filling accuracy. The capping part applies SERVO torsional screwing to ensure the tightness and no-damaging of the lid. At the same time, the machine can be connected with the labeling machine to be a filling line.
Technical data
|
Target Products |
Essential oil bottle |
|
Manufacturing speed |
40 PCS / minute |
|
Power |
AC 220V 50-60Hz / 1.5kw |
|
Air range |
0.5-0.7Mpa |
Product display

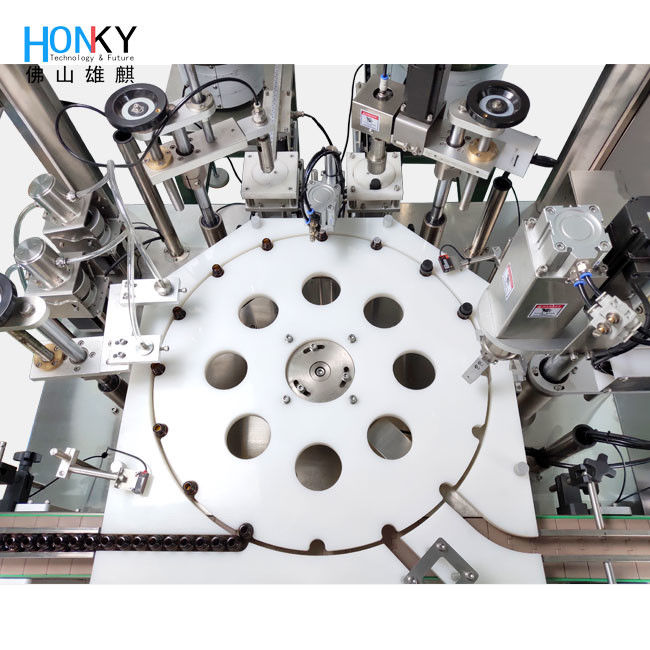

The compatible design combines the filling, cap loading and capping in one small space.
Characteristic
A. Material contact parts are made of stainless steel SUS316.
B. Adopt photoelectric control, fast and accurate automatic quantitative filling; The rotary valve adopts ceramic material without sealing ring, cleaning without dead angle.
C. Using motion controller and HMI man-machine operation interface, parameters can be called on the operation interface with one key without manual adjustment of the mechanical position.
D. Servo system is adopted, with high filling precision and precise positioning.
E. The filling action is fast so that the bottle can be filled immediately, and the production efficiency is high.
F. The whole machine adopts a stainless steel frame structure, transparent PC or plexiglass material frame, SUS304 stainless steel countertop.
G. Ultrasonic liquid level control.
H. Adopting motion control system and servo motor for tracking capping, the bottle does not need to be stopped, and the position of the bottle is automatically tracked for automatic capping, and the torque can be adjusted
