| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQQG |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(180*120*120cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Speed: | 8000 BPH | Filling Range: | Ceramic Pump(1-100ml) |
|---|---|---|---|
| Filling Error: | ±0.8% | Machine Heads: | Make As Customer's Need |
| After-sales Service Provided: | Video Technical Support,Free Spare Parts,Online Support | Certification: | CE |
| Highlight: | 8000 BPH Olive Oil Bottling Machine,8000 BPH 6 Head Liquid Filling Machine,8000 BPH Olive Oil Filling Machine |
||
6 Head 8000 BPH Olive Oil Bottling Machine With Ceramic Pump
6 Head cooking Oil Olive Oil Filling Machine With Ceramic Pump For Oil Vertical Packing Machine
Characteristic
XQQG adopts a horizontal pneumatic filling machine design, which is specially designed for supporting vertical bag packaging machines. The filling speed is fast and the range is wide. The filling part uses a high-precision ceramic piston metering pump to ensure filling accuracy, and the single pump is small in size. The number of filling pumps can be designed according to customer requirements.
Technical parameters
| Model | XQQG-12 | XQQG-25 | XQQG-50 | XQQG-100 | |
| Pump head | High purity ceramics | ||||
| Filling accuracy | ≦±0.8% | ||||
| Filling range | 1-12ml | 2-25ml | 5-50ml | 10-100ml | |
| Manufacturing speed | 0-40 Bottle/min | ||||
| Size of Host Machine | Customized | ||||
| Power | AC 220V 50-60Hz 500W | ||||
| Air pressure | 0.4-0.6Mpa | ||||

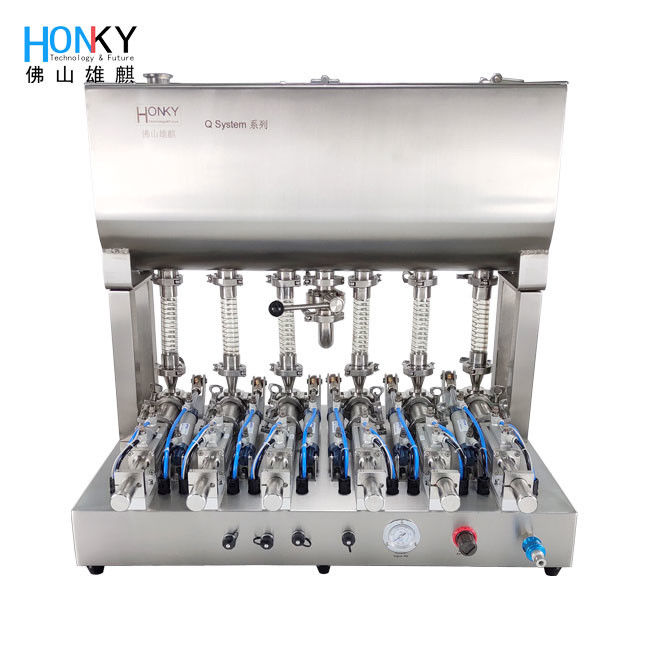

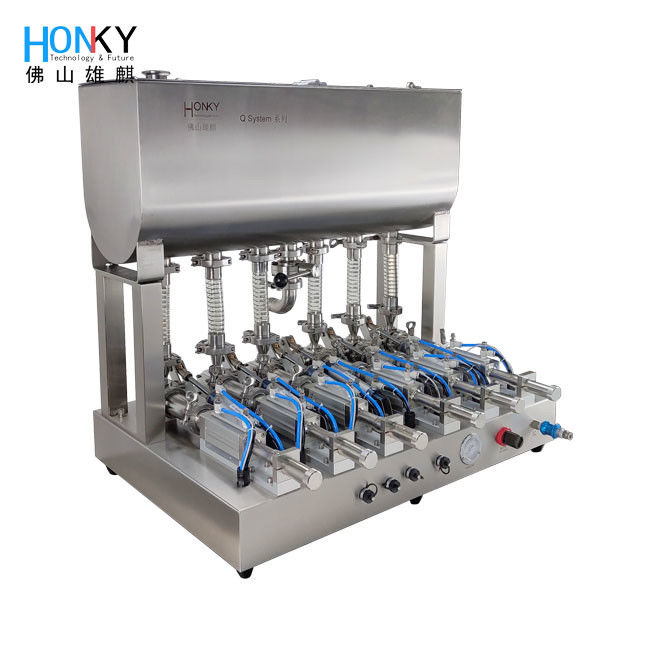

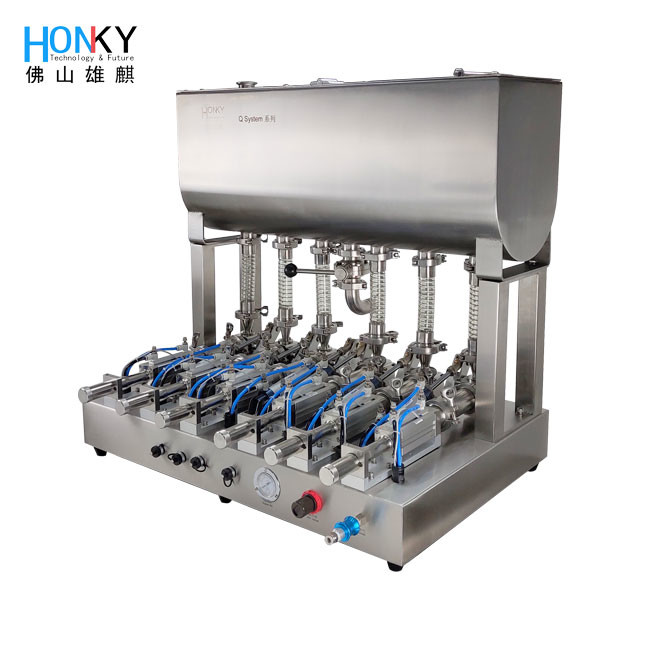

Product display
This equipment has been tested to meet the requirements of GMP certification.
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
