Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQGX-30A |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（130*85*75cm 125KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Pump Range: | 1-10 Ml | Speed: | 25 PCS Per Minute |
|---|---|---|---|
| Suitable Material: | Bio Reagents | Suitable Bottle: | Round Bottle |
| Filling Pump: | XQX2 Ceramic Pump | Weight: | 85 Kg |
| Highlight: | 1500 BPH Automatic Filling Machine,Volumetric Bottle Automatic Filling Machine,1500 BPH Volumetric Bottle Filling Machine |
||
1500 BPH Automatic Filling Machine Round Volumetric Bottle
1500BPH Round Bottle Automatic Volumetric Liquid Filling And Capping Machine With Ceramic Pump For Biological Reagents
Characteristic
XQGX-30A adopts a desktop filling and capping design, specially designed to fill and capping the bio reagent bottle. The filling part uses XQX2 high-precision ceramic pump to ensure filling accuracy(within ±0.5%). The appearance adopts desktop design, the volume is small and exquisite, the material is 304 stainless steel, easy to clean. The filling speed is up to 25 PCS per minute, suitable for small batch production. The Capping part adopts the servo motor which can ensure the cap tight. At the same time, the machine is with the bottle feeder which can save the working labor.
Technical data
| Model | XQGM-30A | |||
| Filling range | 0.2-6ml | 1-12ml | 2-25ml | |
| Filling accuracy | ≤0. 5% | |||
| Bottle diameter | φ20 - φ45mm | |||
| Manufacturing speed | 12-22 PCS/min | |||
| Power | AC 220V 50-60Hz 600W | |||
| Air pressure | 0.4-0.5Mpa | |||
| Size of Host Machine | 1230*780*600(mm) | |||

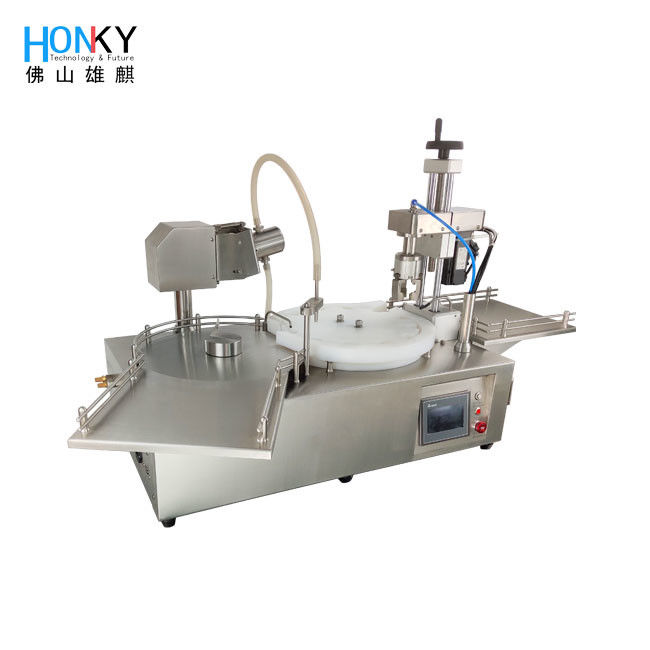

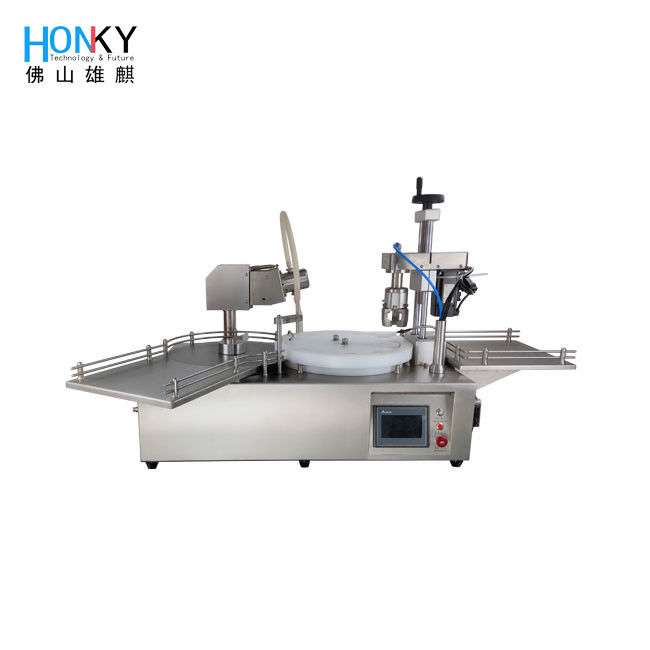

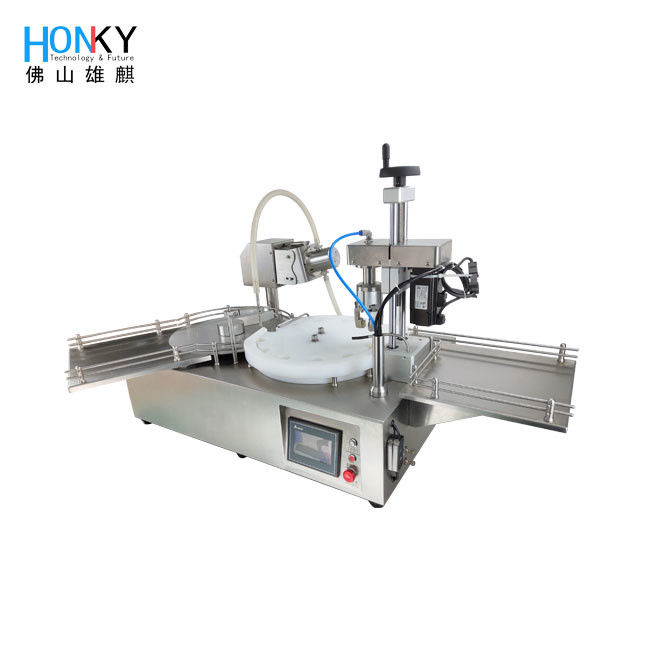

Volumetric Bottle Filling Machine display
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
The capping part adopts SERVO torsional screwing to ensure the tightness and no-damaging of the lid.
Fully desktop design to make operation easy.
