| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQGM-30A |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（130*85*75cm 125KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Pump Range: | 1-10 Ml | Efficiency: | 1800 Bottle Per Hour |
|---|---|---|---|
| Material Type: | Liquid Or Oil | Function: | Filling And Cap Crimping |
| Voltage: | 220V,50Hz | Packaging Type: | Bottles |
| Highlight: | Vial Pneumatic Capping Machine,1500 BPH Pneumatic Capping Machine,1500 BPH Electric Bottle Capper |
||
Semi Auto 1500 BPH Vial Pneumatic Capping Machine With Ceramic Filling Pump
1500BPH Vial Semi Automatic Capping Machine With Ceramic Filling Pump For Essential Oil Packing
Characteristic
XQGM-30A is designed to fill and crimp the penicillin bottle. The filling part uses XQX2 high-precision ceramic pump to ensure filling accuracy which is within ±0.5%. The appearance adopts 304 stainless steel, which is easy to clean. Air crimping head is applied for crimping aluminum cap. The filling speed is up to 1800 bottles per hour, suitable for small batch production.
Technical data
| Model | XQGM-30A | |||
| Filling range | 0.2-6ml | 1-12ml | 2-25ml | 5-60ml |
| Filling accuracy | ≤0. 5% | |||
| sealing diameter | φ13mm / φ15mm / φ20mm | |||
| Manufacturing speed | 12-22 PCS/min | |||
| Power | AC 220V 50-60Hz 600W | |||
| Air pressure | 0.4-0.5Mpa | |||
| Size of Host Machine | 1230*780*600(mm) | |||

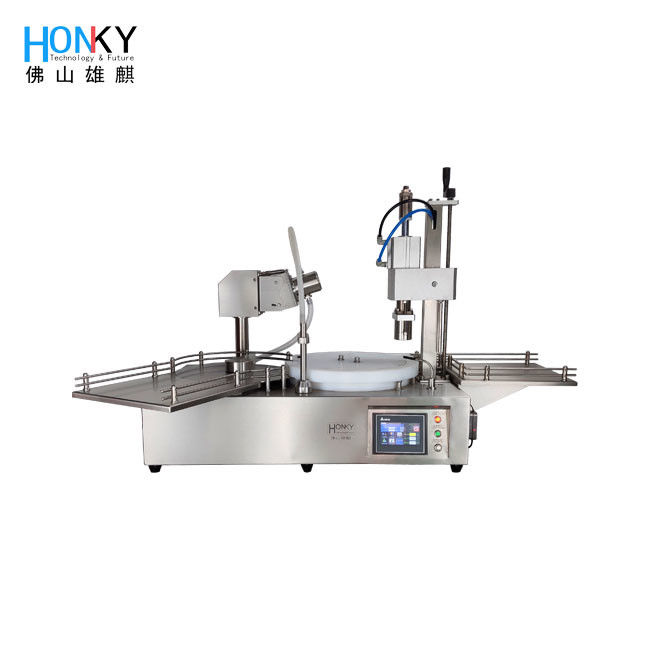

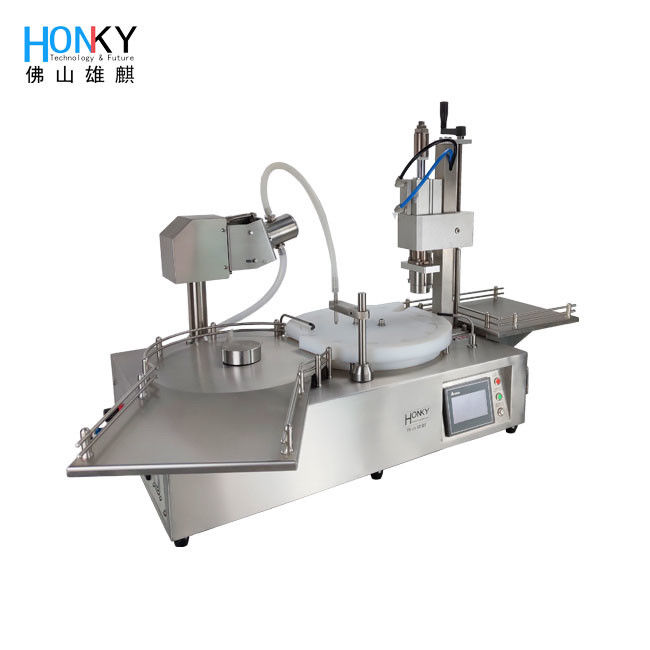

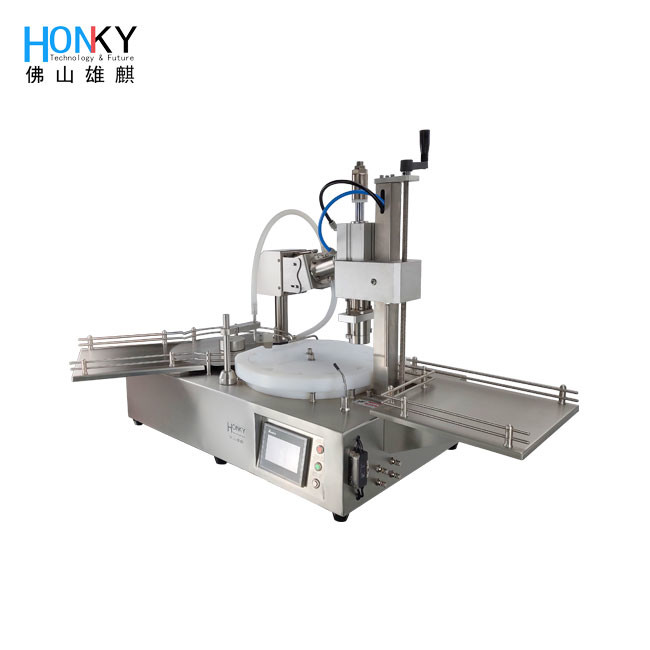

Product display
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
