| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQGX-30A |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（130*85*75cm 125KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Pump Range: | 1-10 Ml | Efficiency: | 25 Bottle Per Minute |
|---|---|---|---|
| Suitalbe Material: | Liquid Or Oil | Bottle Type: | Round Bottle |
| Filling Pump: | XQX2 Ceramic Pump | Voltage: | 220V |
| Highlight: | 25 BPM Semi Auto Capping Machine,1500 BPH Semi Auto Capping Machine,25 BPM Oil Bottle Sealing Machine |
||
Oil Bottle 25 BPM Semi Auto Capping Machine For Bio Reagent Packing
1500BPH Round Bottle Semi Automatic Capping Machine With Ceramic Pump For Biological Reagents Packing
Characteristic
XQGX-30A is designed to fill and capping the essential oil bottle. The filling part uses XQX2 high-precision ceramic pump to ensure filling accuracy which can make it within ±0.5%. The appearance adopts 304 stainless steel, which is easy to clean. The filling speed is up to 25 PCS per minute, suitable for small batch production. At the same time, the machine is with the bottle feeder which can save the working labor. What's more, the capping head is the servo motor type and the torque is adjustable.
Technical data
| Model | XQGM-30A | |||
| Filling range | 0.2-6ml | 1-12ml | 2-25ml | |
| Filling accuracy | ≤0. 5% | |||
| Bottle diameter | φ20 - φ45mm | |||
| Manufacturing speed | 12-22 PCS/min | |||
| Power | AC 220V 50-60Hz 600W | |||
| Air pressure | 0.4-0.5Mpa | |||
| Size of Host Machine | 1230*780*600(mm) | |||

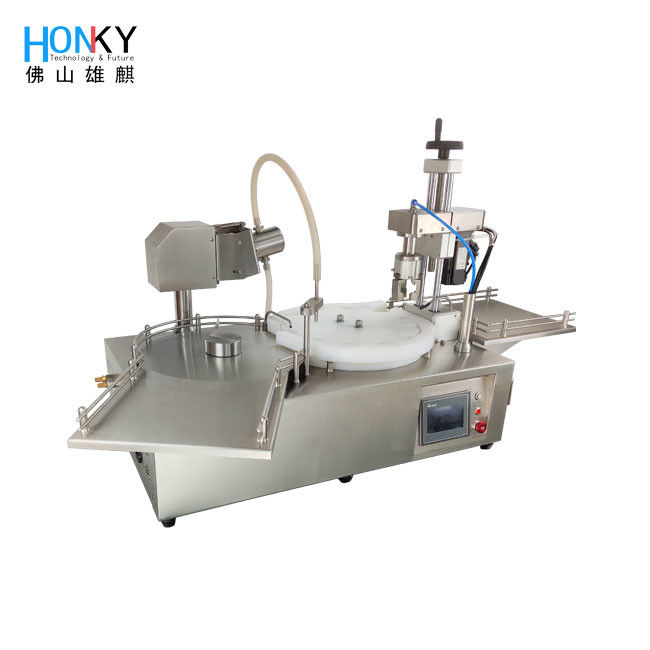

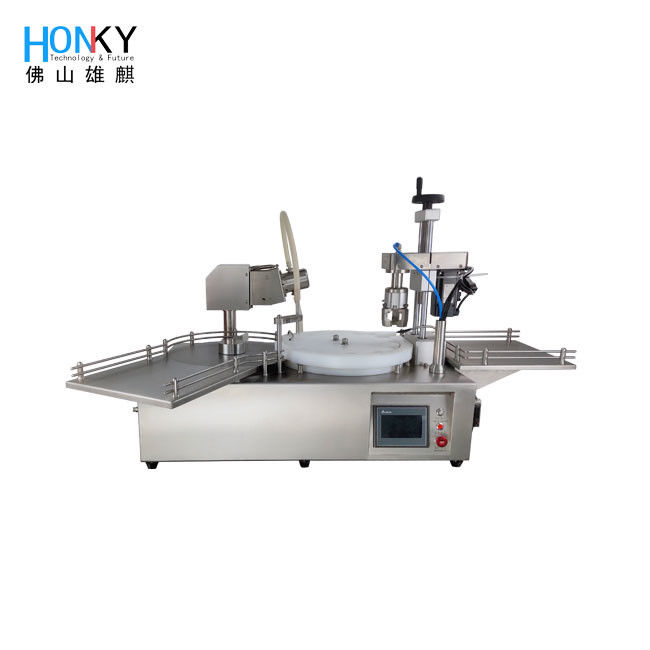

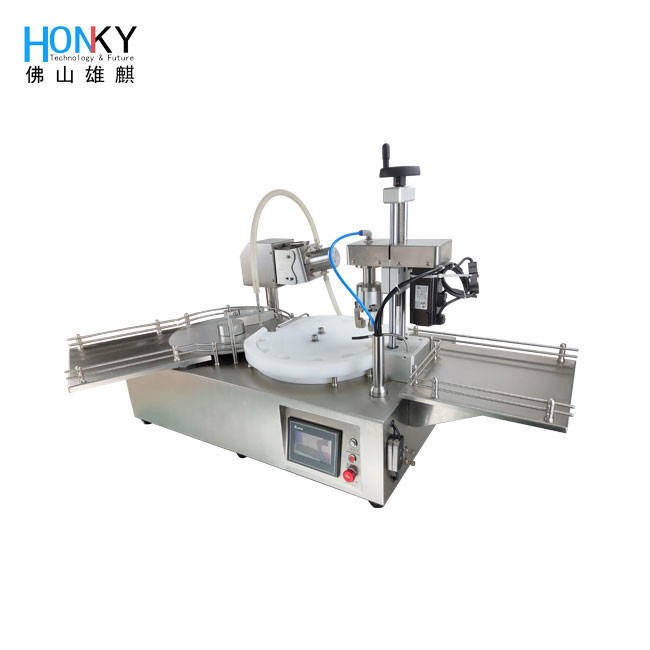

Product display
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
The capping part adopts SERVO torsional screwing to ensure the tightness and no-damaging of the lid.
Fully desktop design to make operation easy.
