| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQZGX-12A |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（76*76*83cm 90KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Pump Range: | 1-10ml | Filling Speed: | 0-30 Bottle Per Minute |
|---|---|---|---|
| Application: | Food, Chemical, Medical | Voltage: | 220V,50Hz |
| Weight: | 87kg | Dimension(l*w*h): | 65*65*70cm |
| Highlight: | 30 BPM Automatic Capping Machine,50Hz Automatic Capping Machine,30 BPM Glass Bottle Capping Machine |
||
Glass Bottle 30 BPM Automatic Capping Machine With Filling Function
2000BPH Glass Bottle Capping Machine With Ceramic Pump For Essential Oil Packing
Characteristic

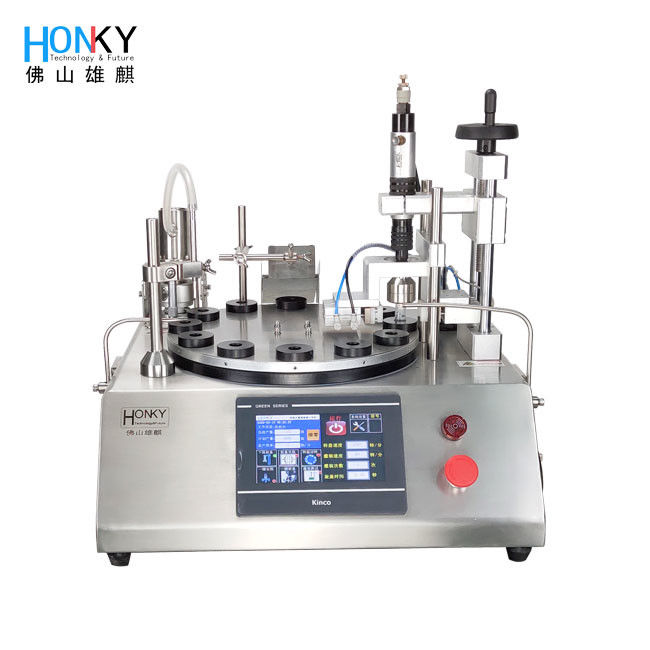

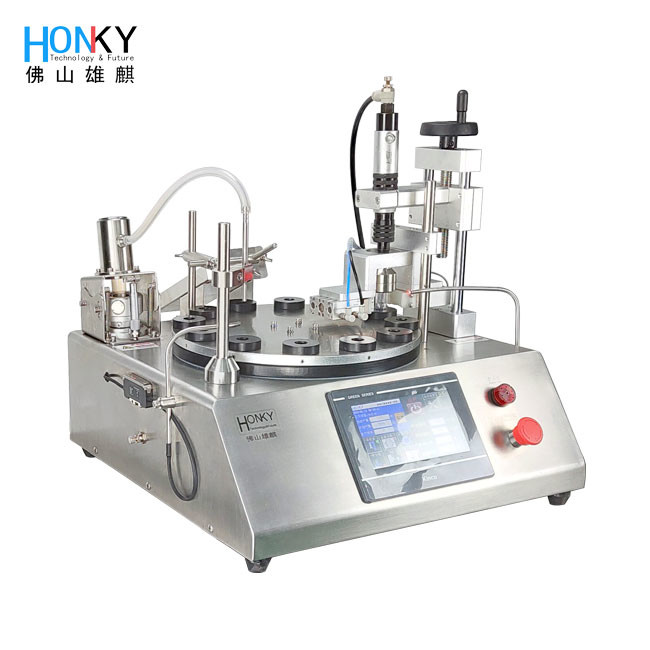

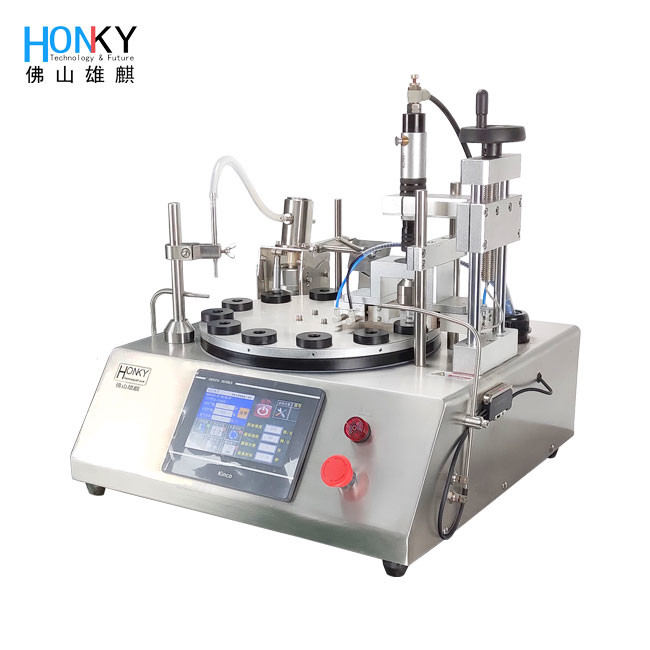

XQZGX-12A applies a desktop filling and capping design which is mainly for filling and capping the small bottle. The appearance adopts 304 stainless steel which is easy to clean. The filling pump applies XQX2 high-precision ceramic pump to ensure filling accuracy(within ±0.5%). The filling speed is up to 30 pcs/min. The machine adopts the bottle mold fast loading method, different bottle types can be changed quickly and conveniently. At the same time, the capping part uses the air capping head to make sure the tightness of the capping.
Technical data
| Model | XQZGX-12A |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±0.5% |
| Filling range | 0.6-6ml |
| Manufacturing speed | 25-30 PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 710*660*670mm (Main machine roughly) |
Product display
mp For Reagent
This equipment has been tested to meet the requirements of GMP certification.
The capping part adopts AIR torsional screwing to ensure the tightness of the lid.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easy.
