| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQAB-2B |
| Minimum Order Quantity: | 1 |
| Price: | USD 40000-41000 PER SET |
| Packaging Details: | Wooden packing |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | 5 Set per Month |
| Pump Size: | 1-12ml/ 2-25ml/ 5-50ml | Air Range: | 0.4-0.6 MPA |
|---|---|---|---|
| Pump Type: | XQQG Series Ceramic Piston Pump | Automatic Grade: | Fully Automatic |
| Power: | AC 220V 50-60Hz / 1.5kw | Driven Type: | Electric,Pneumatic |
| Highlight: | AC220V Automatic Filling And Capping Machine,1.5kw Automated Bottle Filling Machine,AC220V Automated Bottle Filling Machine |
||

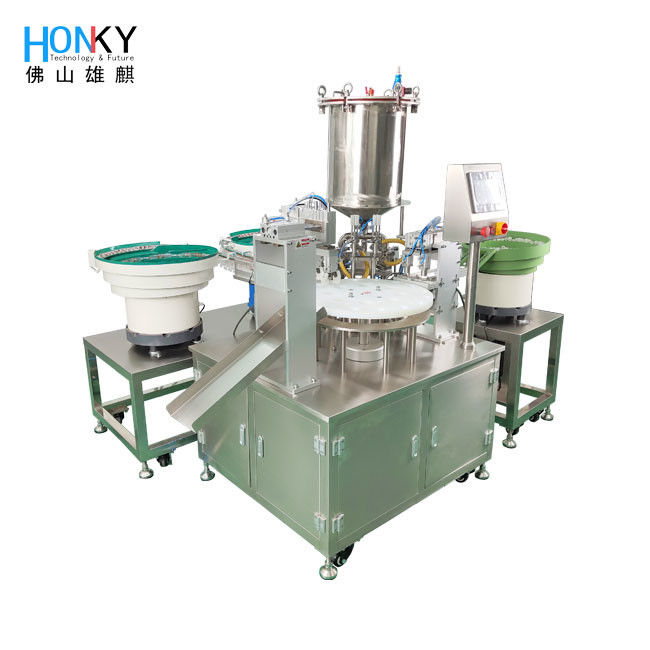

1.5kw AC220V Automatic Filling And Capping Machine For Massage Cream
AC 220V Essential Oil Automatic Filling And Capping Machine With Ceramic Pump For Massage Cream
Characteristic

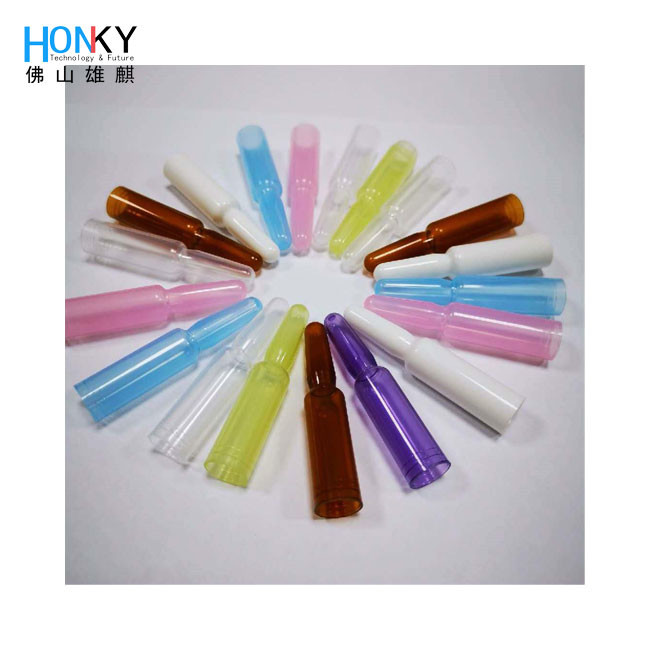

XQAB-2G is designed for filling and capping plastic ampoule skincare cream automatically. The filling part uses high-precision ceramic piston pumps(XQQG series) to ensure filling accuracy which is within ±0.8%, fast filling speed, wide range, and simple adjustment. The capping part adopts the pneumatic capping method, which is simple and fast. The compatible design of the whole machine has a small space occupation and is easy to operate and maintain. The equipment includes functions such as automatic bottle feeding, automatic filling, automatic capping, and automatic bottle discharging.
Technical data
|
Target Products |
Essential oil bottle |
|
Manufacturing speed |
40 PCS / minute |
|
Power |
AC 220V 50-60Hz / 1.5kw |
|
Air range |
0.5-0.7Mpa |

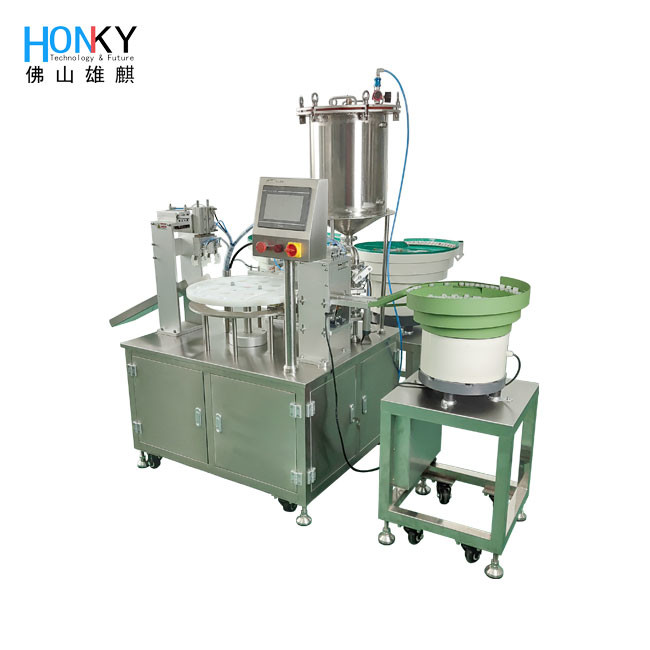

Automated Bottle Filling Machine display
Compactiable design which combine the filling, cap loading and crimp in one small space.
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and Bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
