Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX3 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 500-2000 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Application Area: | MEDICAL, Chemical, Machinery & Hardware Accessary, Comestic | Pump Range: | 4-80ul, 10-140ul, 20-240ul, 50-700ul, 0.2-1.5ml, Etc |
|---|---|---|---|
| Material: | Stainless Steel 316L And High Purity Ceramic | Ceramic Part Material: | High Purity Ceramic(Al2O3 Or ZrO2) |
| Suitable For: | Filling Machine Pump Upgrading | Volume Adjustment: | Fully Automatic |
| Highlight: | Φ10 Ceramic Filling Pump,Φ 22mm Ceramic Filling Pump,Φ10 Filling Pump Machine |
||
Fully Auto Φ10 Ceramic Filling Pump For Pharma Dispensing Filling Machine
High Precision Ceramic Filling Pump Integration For Pharma Dispensing Filling Machine Accessory
It can be used for matching and modification of the filling part of the packaging machine. Suitable for filling electrolyte, medicine, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, finger
Homogeneous liquid materials with medium and low viscosity such as nail polish.
Features:
The automatic adjustment electric rotary ceramic plunger pump is an electric metering pump that can quickly and accurately control the filling volume, and it is also one of our company's patented products.
It is suitable for scenarios with higher automation requirements, especially when there are a large number of pump heads and frequent adjustments are required.
Application:
--Using a high-performance motor to realize extremely fast and automatic adjustment of the filling volume, which is accurate and stable.
--The operation of the pump will not produce trace impurities to pollute the liquid and can be quickly disassembled and assembled.
Industry application:
--It can be used for matching and modification of the filling part of the packaging machine. Suitable for filling electrolyte, medicine, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume.
--Homogeneous liquid materials with medium and low viscosity such as nail polish.
Parameter
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump Material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
||||||||
Metal part: 316L stainless steel |
|||||||||
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
RPM |
450 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better than ±0.5% | ||||||||
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power Supply | AC220V 50/60Hz (110V can be customized) | ||||||||
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

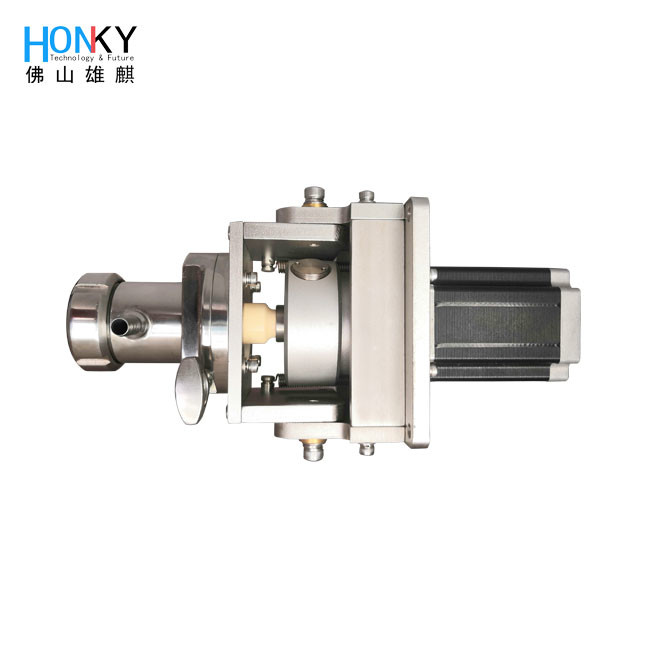

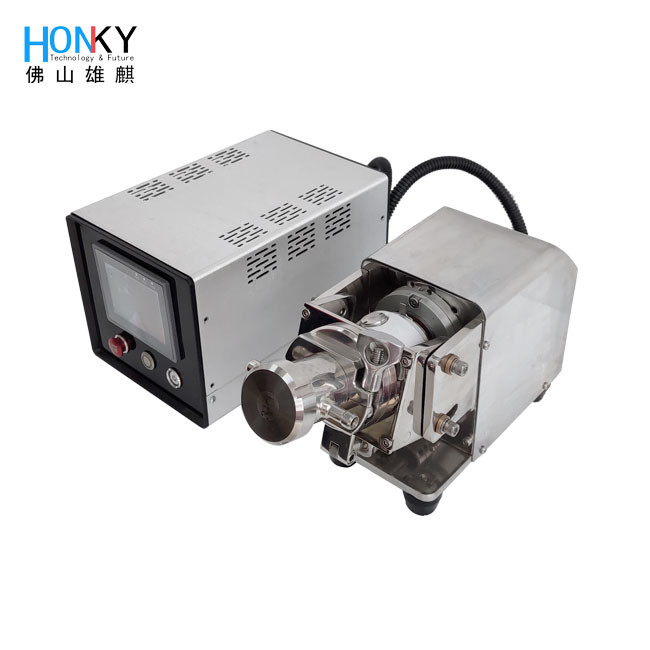

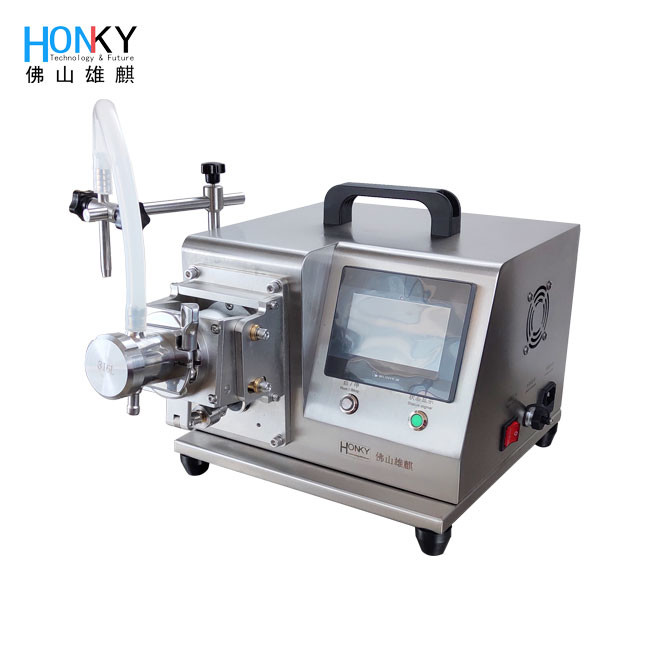

Product display
