XQX3 System 6ml Ceramic Filling Pump For Pharma Liquid Dispensing Filler
High Precision Ceramic Filling Pump System For Bio Reagent Dispensing Filling Machine Accessory
Features:
1. The metal part of the contact material is made of 316 stainless steel, the pump body has better corrosion resistance.
2. This series of metering pumps have very high metering accuracy and repeat consistency, and the accuracy is better than plus or minus five thousandths.
3. The X1 series is based on the lateral differential angle, and the adjustment is more sensitive. The X2 series is the most widely used and has a simple structure.
4. The X1/X2 SYSTEM series is an implanted device that integrates the X1/X2 series ceramic pump and control system, with reasonable structure, compact design, and simple operation. It is an ideal matching solution for high-end packaging equipment.
Application:
It can be used for matching and modification of the filling part of the packaging machine. Suitable for filling electrolyte, medicine, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, finger
Homogeneous liquid materials with medium and low viscosity such as nail polish.
Parameter
| Item No. |
-3 |
-6 |
-9 |
-12 |
-15 |
-18 |
-21 |
-24 |
-27 |
| Pump Material |
Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
Metal part: 316L stainless steel |
| Filling Range |
4-80ul |
10-140ul |
20-240ul |
50-700ul |
0.2-1.5ml |
0.2-2.9ml |
0.6-6ml |
1-12ml |
2-25ml |
| Bore Diameter |
Φ4 |
Φ5 |
Φ7 |
Φ10 |
Φ13 |
Φ15 |
Φ22 |
Φ25 |
Φ36 |
RPM |
450 |
350 |
300 |
250 |
200 |
| Accuracy |
Better than ±0.5% |
| Motor Type |
2 phase 4 line No.42 |
2 phase 4 line No.57 |
2 phase 4 line No.86 |
| Power Supply |
AC220V 50/60Hz (110V can be customized) |
| Power Rate |
75w |
75w |
75w |
150w |
150w |
150w |
240w |
240w |
240w |

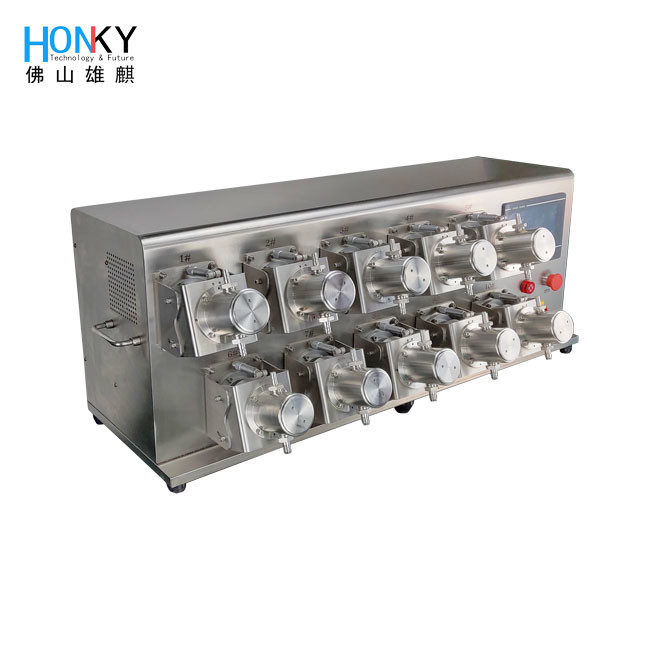

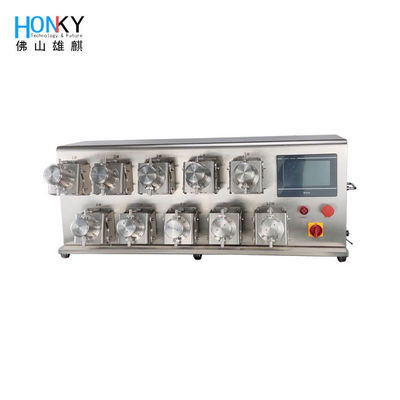

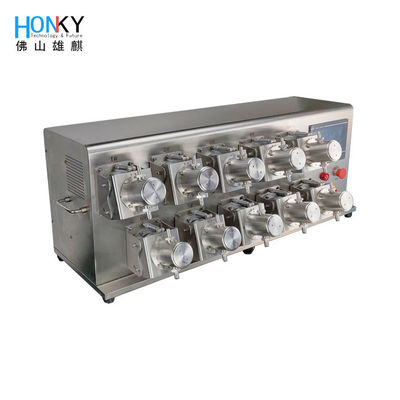

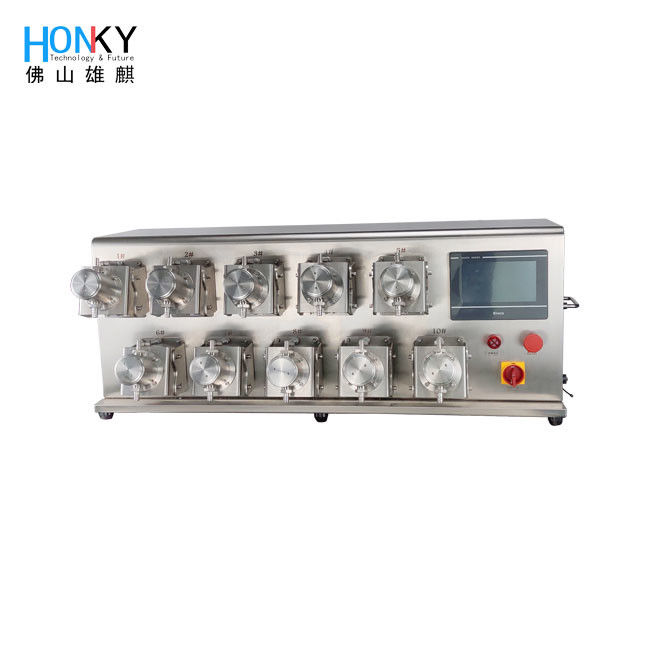

Product display
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
