Reagent Tube 2ml 25ml Desktop Filling Machine 40 Bottle Per Min
Semi-Automatic Desktop Filling Machine Reagent Tube Desktop Filling Machine Essential Oil Desktop Filling Machine
Characteristic
XQZGX-12A adopts a rotary table design, which is specially designed for filling and plugging various small bottles. The self-developed control system is adopted to make the machine work smoothly and efficiently. The capping part adopts the pneumatic capping method, which is simple and efficient. The filling part uses XQX2 Series high-precision ceramic piston metering pumps to ensure filling accuracy, fast filling speed, and wide range. The bottle-out part can be used for bottle-out by a robot hand, which can be adapted to products of various sizes. The whole machine has a compact design and is made of sanitary stainless steel, which is clean and hygienic.
Technical data
| Model |
XQZGX-12A |
| Pump type |
Ceramic pump |
| Filling accuracy |
≦±0.5% |
| Filling range |
0.6-6ml |
| Manufacturing speed |
25-30 PCS / minute |
| Power |
AC 220V 50-60Hz 550W |
| Air pressure |
0.4-0.6Mpa |
| Machine size |
710*660*670mm (Main machine roughly) |

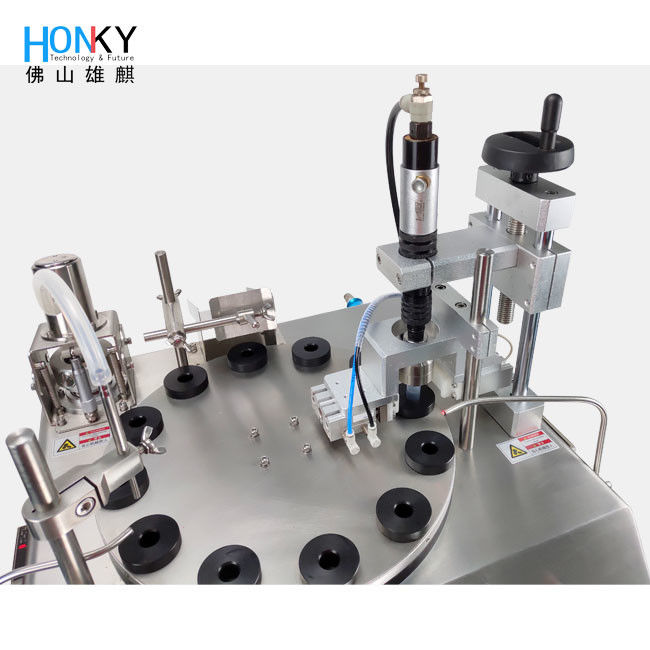

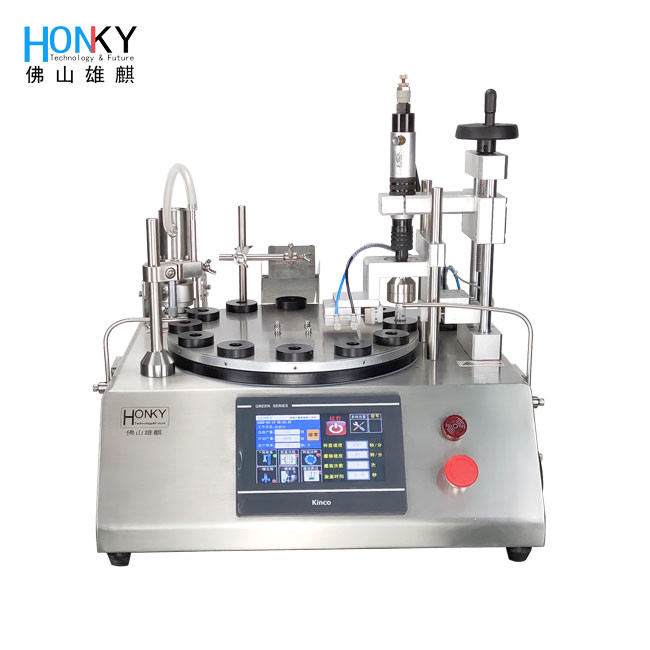

Semi Automatic Tube Filling Machine display
This equipment has been tested to meet the requirements of GMP certification.
The capping part adopts AIR torsional screwing to ensure the tightness of the lid.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
Advantages for using the ceramic pump:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
