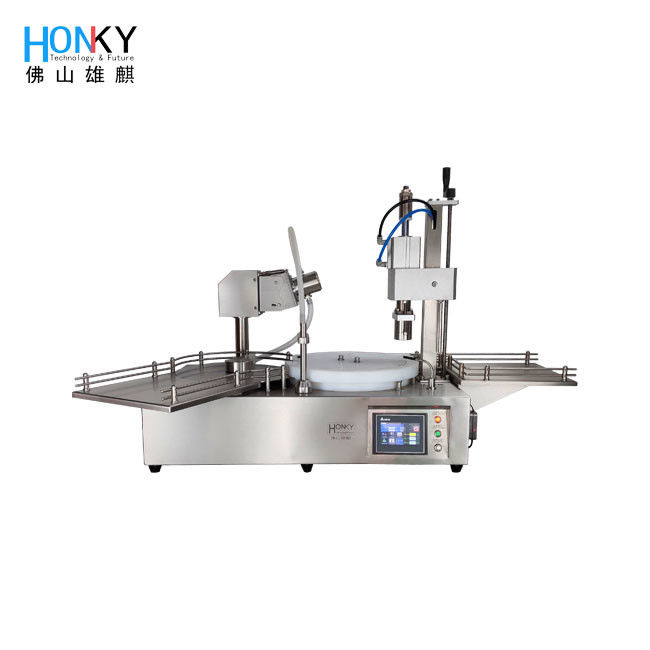

Glass Vial PDRN Injection Desktop Filling Machine
Compact desktop filling machine designed for precise injection of PDRN and skin care liquids into glass vials, combining filling and cap crimping functions for efficient small-batch manufacturing.
Key Features
The XQGM-30A model integrates injection liquid filling and cap crimping with an efficiency of 25 BPM, ideal for small-batch production. Features include:
- XQX2 series filling pump with exceptional measuring accuracy and repeat consistency
- High purity ceramic pump material specifically designed for pharmaceutical applications
- Self-developed control system with renowned brand air components for stable operation
- GMP certification compliant after rigorous testing
Technical Specifications
| Model |
XQGM-30A |
| Filling Range |
0.2-6ml | 1-12ml | 2-25ml |
| Filling Accuracy |
≤0.5% |
| Sealing Diameter |
φ13mm / φ15mm / φ20mm |
| Manufacturing Speed |
12-22 PCS/min |
| Power |
AC 220V 50-60Hz 600W |
| Air Pressure |
0.4-0.5Mpa |
| Host Machine Dimensions |
1230*780*600(mm) |
Product Overview
This equipment has been tested to meet the requirements of GMP certification.
The separation part utilizes high purity ceramic pump technology, controlling injection volume per cycle by adjusting pump head angle, delivering exceptional measuring accuracy and repeat consistency.
Fully desktop design ensures easy operation and space efficiency.
Application Areas
- ODM and OEM products design
- Automatic manufacturing line design
- Cosmetic product packaging
- Pharmaceutical and bio-reagent product packaging
- Laboratory liquid dispensing
- Lithium battery liquid dispensing
- Ceramic pump and ceramic pump part design
- Other material filling applications
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we provide both OEM services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine includes a 1-year warranty with lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation services are available with all new machine purchases. We provide comprehensive user manuals and instructional videos for installation, debugging, and operation to ensure optimal machine performance.
Q: What info will be needed to confirm machine models?
A: Required information includes material status, filling range requirements, manufacturing speed specifications, and production process requirements.
