| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQGM-30A |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（130*85*75cm 125KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Pump Size: | 1-10 Ml | Manufacturing Speed: | 25 Bottle Per Minute |
|---|---|---|---|
| Material Type: | Injection Liquid | Packing Type: | Glass Vial |
| Filling Pump: | XQX2 Ceramic Pump | Dimension: | 120*65*65 Cm |
| Highlight: | Pdrn Injection Liquid Desktop Filling Machine,Glass Vial Desktop Filling Machine,0.5Mpa Desktop Filling Machine |
||
DDesktop Filling Machine Pdrn Injection Liquid Filling Machine Glass Vial Filling Machine For Skin Care Liquidsktop Filling Machine Pdrn Injection Liquid Filling Machine Glass Vial Filling Machine For Skin Care Liquid
Characteristic

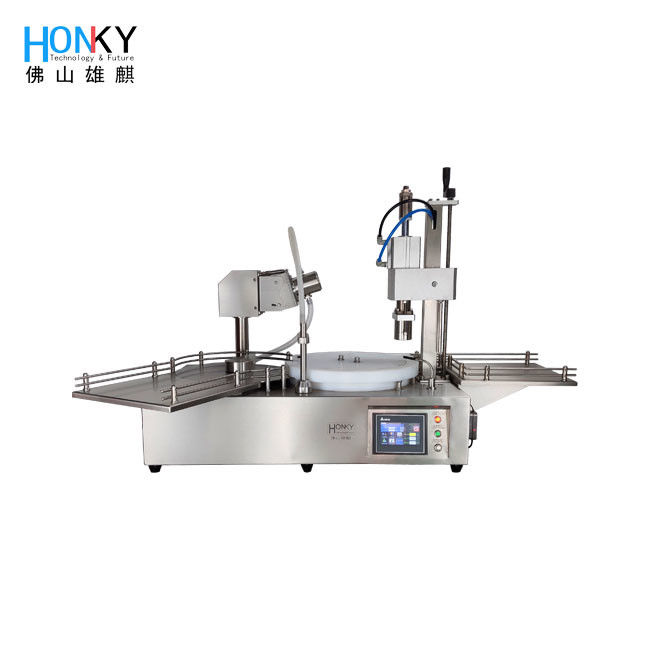

XQGM-30A is a machine that combines the injection liquid filling and cap crimping function. It has an efficiency of 25 BPM, which can handle small-batch manufacturing. The Filling pump applies the XQX2 series which has extremely high measuring accuracy and repeated consistency. And the pump material is high purity ceramic pump which is mainly for the pharma area. At the same time, the self-developed control system and famous brand air components are adopted to make the machine work stably. And this equipment has been tested to meet the requirements of GMP certification.
Technical data
| Model | XQGM-30A | |||
| Filling range | 0.2-6ml | 1-12ml | 2-25ml | |
| Filling accuracy | ≤0. 5% | |||
| sealing diameter | φ13mm / φ15mm / φ20mm | |||
| Manufacturing speed | 12-22 PCS/min | |||
| Power | AC 220V 50-60Hz 600W | |||
| Air pressure | 0.4-0.5Mpa | |||
| Size of Host Machine | 1230*780*600(mm) | |||
Product Display
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
