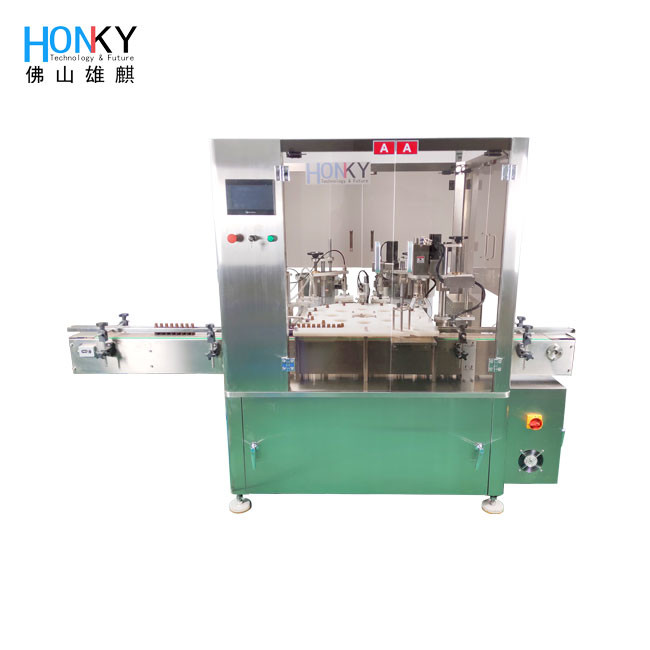

Massage Oil Automatic Filling Capping Machine 2400 PCS / Hour 40BPM For Glass Bottle

40 BPM Massage Oil Automtaic Filling And Capping Machine With High Precision Filling Pump For Glass Bottle

40 BPM Massage Oil Automtaic Filling And Capping Machine With High Precision Filling Pump For Glass Bottle

Characteristic

XQJYP-2A applies an automatic filling and capping system, especially designing for filling and capping the essential oil or massage oil bottle which is with the cap and plug. The filling speed is up to 2000-2400 bottles/hour. The device adopts a German sensor to achieve the functions of no filling without the bottle, no capping without lids. The filling pump applies a high-precision ceramic pump to ensure filling accuracy. The capping part applies SERVO torsional screwing to ensure the tightness and no-damaging of the lid. At the same time, the machine can be connected with the labeling machine to be a filling line.

Technical data

Product display

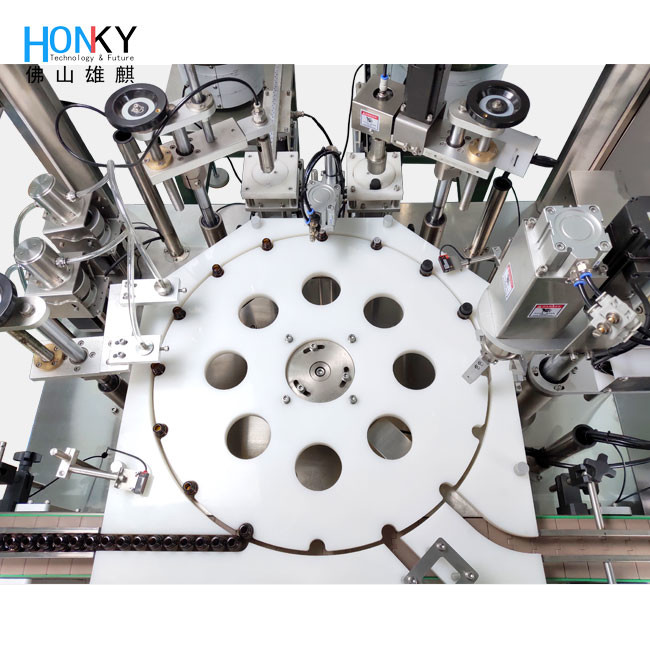

The compatible design combines the filling, cap loading and capping in one small space.

Characteristic
A. Material contact parts are made of stainless steel SUS316.
B. Adopt photoelectric control, fast and accurate automatic quantitative filling; The rotary valve adopts ceramic material without sealing ring, cleaning without dead angle.
C. Using motion controller and HMI man-machine operation interface, parameters can be called on the operation interface with one key without manual adjustment of the mechanical position.
D. Servo system is adopted, with high filling precision and precise positioning.
E. The filling action is fast so that the bottle can be filled immediately, and the production efficiency is high.
F. The whole machine adopts a stainless steel frame structure, transparent PC or plexiglass material frame, SUS304 stainless steel countertop.
G. Ultrasonic liquid level control.
H. Adopting motion control system and servo motor for tracking capping, the bottle does not need to be stopped, and the position of the bottle is automatically tracked for automatic capping, and the torque can be adjusted

Q & A

Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.

Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.

Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.

Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
