1L Shampoo Automatic Filling Machine With Pump 50 Bottle Per Minute

1L Shampoo Auto Liquid Filling Machine with high precision pump for Shampoo filling 50 Bottle Per Minute1L Shampoo Auto Liquid Filling Machine With High Precision Pump For Shampoo Filling 50 Bottle Per Minute

Characteristic

XQSRG-2S is designed for various cosmetic bottles, which can be filled and capped for liquid and cream Paste products. Its working method is manual bottle feeding, automatic filling, automatic stopper screwing, and automatic bottle discharge all in one rotary table. The filling part uses XQQG ceramic piston pumps to ensure filling accuracy, fast filling speed, and wide range. The capping part adopts the servo capping method, and the torque is adjustable to prevent the cap from being damaged. The self-developed system is to make the whole machine operation easy. The whole machine has a compact design. What's more, the machine can connect the conveyor to finish the packing in the box process or quality check process.

Characteristic
A. Material contact parts are made of stainless steel SUS316.
B. Adopt photoelectric control, fast and accurate automatic quantitative filling; The rotary valve adopts ceramic material without sealing ring, cleaning without dead angle.
C. Using motion controller and HMI man-machine operation interface, parameters can be called on the operation interface with one key without manual adjustment of the mechanical position.
D. Servo system is adopted, with high filling precision and precise positioning.
E. The filling action is fast so that the bottle can be filled immediately, and the production efficiency is high.
F. The whole machine adopts a stainless steel frame structure, transparent PC or plexiglass material frame, SUS304 stainless steel countertop.
G. Ultrasonic liquid level control.
H. Adopting motion control system and servo motor for tracking capping, the bottle does not need to be stopped, and the position of the bottle is automatically tracked for automatic capping, and the torque can be adjusted

Technical data

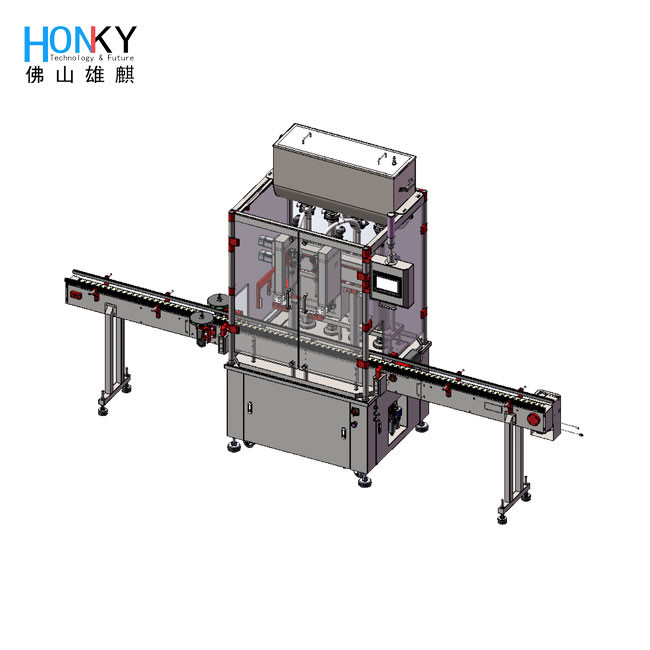

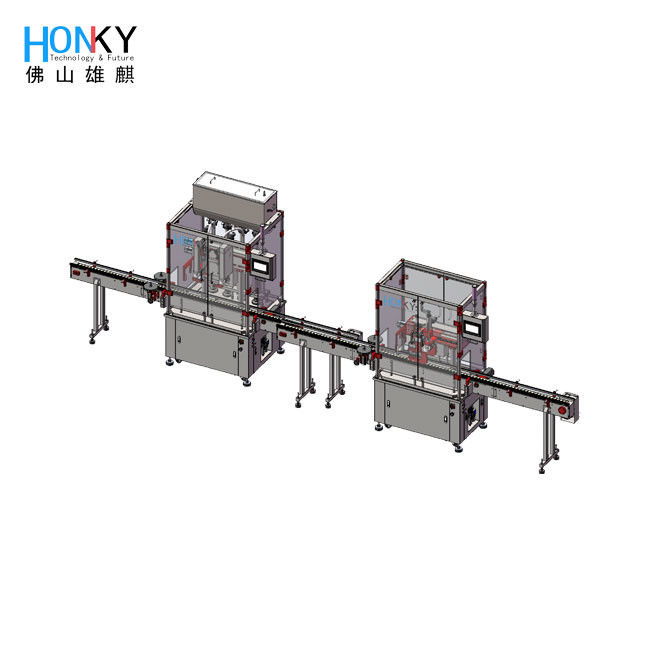

Product display

Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;


Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.

Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.

Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.

Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
