| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQLXG -2S |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（76*76*83cm 90KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Name: | Desktop Virus Test Tube Filling Machine | Pump Type: | XQX2 Ceramic Pump |
|---|---|---|---|
| Power Supply: | 0.4-0.6 MPa AC 220V 680W | Packing Efficiency: | 50 PCS Per Minute |
| Machine Size: | 65*65*500 Cm | Application: | IVD Diagnostic Reagent; Virus Test |
| Highlight: | Desktop Virus Test Tube Filling Machine,40PCS / Min Tube Filling Machine,Automatic 1.5ml Desktop Filling Machine |
||

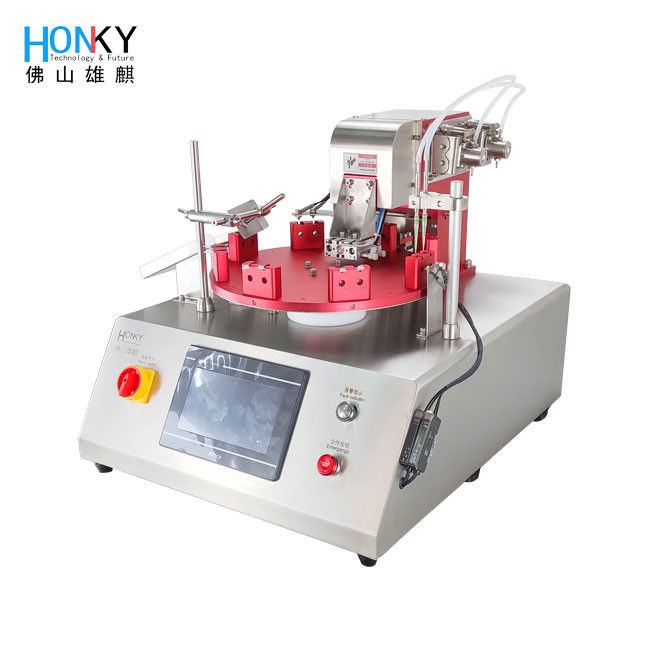

AAutomatic 40PCS / Min 1.5ml Desktop Virus Test Tube Filling Machineutomatic 40PCS / Min 1.5ml Desktop Virus Test Tube Filling Machine
Characteristic
XQLXG-2S is a rotary desktop design filling machine, which is specially designed for test tube filling and plugging. Self-developed plug pressing structure, simple and efficient. The filling part uses XQX2 high-precision ceramic pump to ensure filling accuracy(±0.5%), fast filling speed and wide range. With its own bottle-out mechanism, the whole machine can be operated by one person. The whole machine has a compact design and is made of sanitary stainless steel, which is clean and hygienic.
Technical data
| Model | XQLXG-2S |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±0.5% |
| Filling range | 0.2-1.5ml |
| Manufacturing speed40 | PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 710*660*670mm (Main machine roughly) |
Characeristic
1.Automatic dual-channel bottle loading, filling, capping and discharging.
2.The machine is made of stainless steel 304.
3.This equipment adopts Japanese sensor, Taiwan precision cam for the accurate positioning;
4.The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
5.Sensor recognition to realize the function of stopping filling without bottle.
6.The size of the machine can be customized according to the customer’s need.

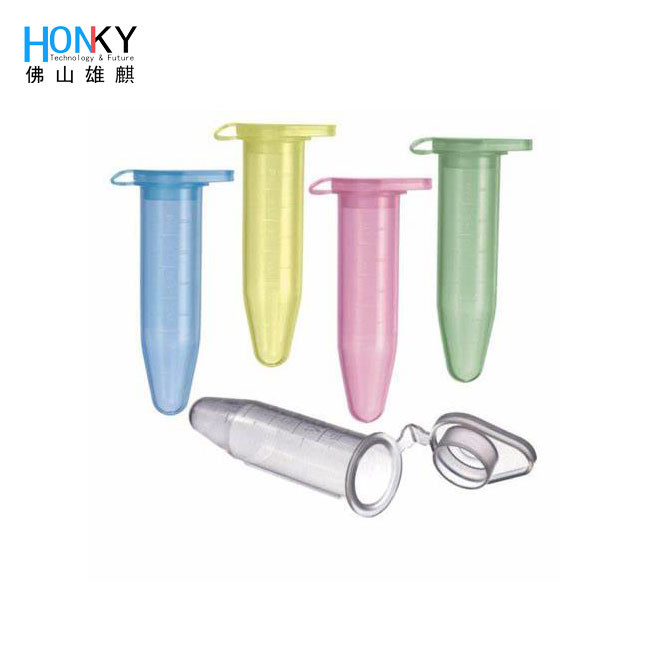

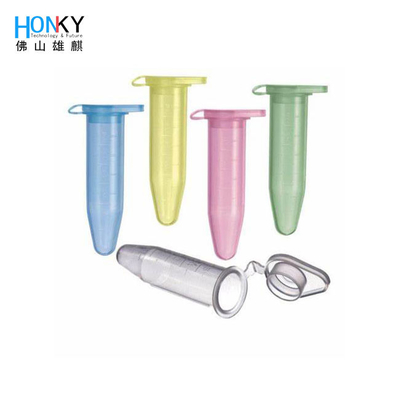

Product display
2al Reagents
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
