Home > Products > Liquid Filling Machine >
10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design

10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design

Diagnostic Reagent Liquid Filling Machine

10 Plate / Min Liquid Filling Machine

550W Liquid Filling Machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQIVD-96

Contact Us
Request A Quote
10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design
10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design 10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design
Product Details
Filling Efficiency:
10 Plate/min
Pump Choosing:
XQX2-06 CERAMIC PUMP With 8 Sets
Filling Accuracy:
±0.8%
Machine Size:
1200*700*500mm
Driven Mode:
No Need Air
Condition:
New
Highlight:

Diagnostic Reagent Liquid Filling Machine

,

10 Plate / Min Liquid Filling Machine

,

550W Liquid Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing(70*70*70 cm)
Delivery Time
20 Days
Payment Terms
T/T
Supply Ability
20 SETS per Month
RELATED PRODUCTS
Good price High Speed Desktop Liquid Filling Machine with Ceramic Piston Pump and PLC Control for Perfume Bottles online video

High Speed Desktop Liquid Filling Machine with Ceramic Piston Pump and PLC Control for Perfume Bottles

Get Best Price
Good price High Speed 250BPM 2ml Precision Filling Desktop Liquid Filling Machine with XYZ Filling System for Perfume Industry online video

High Speed 250BPM 2ml Precision Filling Desktop Liquid Filling Machine with XYZ Filling System for Perfume Industry

Get Best Price
Good price Desktop Explosion Proof Liquid Perfume Filling Machine With High Filling Speed And Ceramic Pump System online video

Desktop Explosion Proof Liquid Perfume Filling Machine With High Filling Speed And Ceramic Pump System

Get Best Price
Good price High-Precision Desktop Liquid Filling Machine with 0.1-50ml Capacity and 304 Stainless Steel for Small-Batch Cosmetics and Pharmaceuticals online video

High-Precision Desktop Liquid Filling Machine with 0.1-50ml Capacity and 304 Stainless Steel for Small-Batch Cosmetics and Pharmaceuticals

Get Best Price
Contact Us
Contact Now
Product Description
10 Plate/Min Diagnostic Reagent Liquid Filling Machine With Ceramic Pump

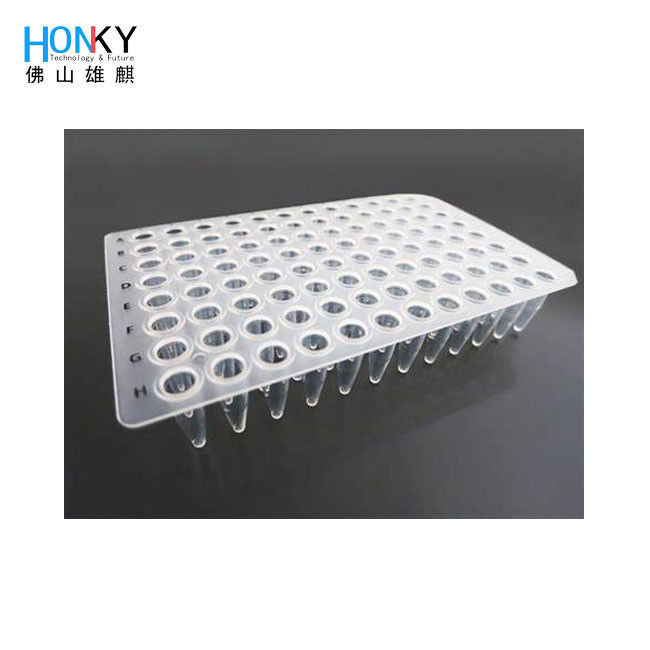

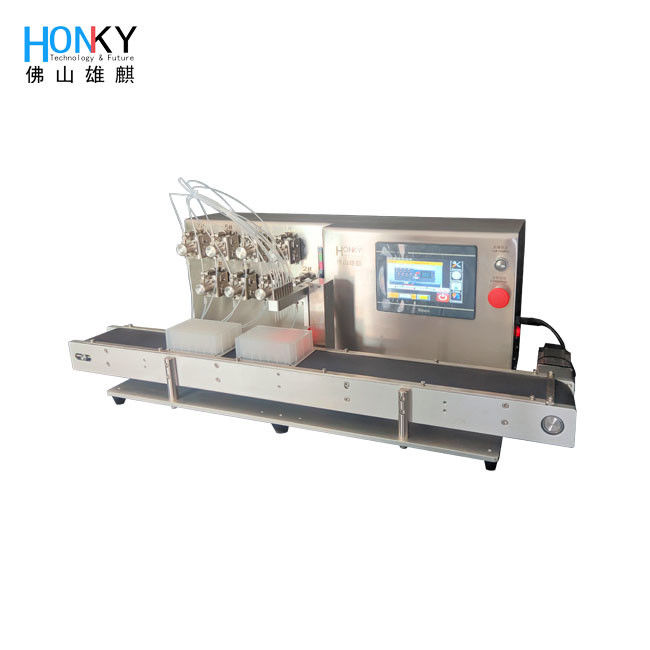

The XQIVD-96 desktop filling machine is specifically engineered for precise filling of 96 deep well plates. Featuring a compact desktop design constructed from corrosion-resistant 304 stainless steel, this machine ensures easy cleaning and maintenance. Equipped with high-precision XQX2 ceramic pumps, it delivers exceptional filling accuracy within 0.8% and achieves production speeds of up to 96 cells * 10 plates per minute.
Key Features
  • Desktop design with compact footprint for space efficiency
  • 304 stainless steel construction for superior corrosion resistance
  • High-precision ceramic pump technology
  • Rapid bottle mold loading system for quick changeovers
  • GMP certification compliant
  • User-friendly self-development operating system
Technical Specifications
Model XQIVD-96
Pump Type Ceramic pump
Filling Accuracy ±0.5%
Filling Range 0.01-0.5ml
Manufacturing Speed 10-12 PCS / minute
Power AC 220V 50-60Hz 550W
Air Pressure 0.4-0.6Mpa
Machine Size 1200*500*500mm (Main machine roughly)
Product Display
10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design 0
This equipment has been tested to meet the requirements of GMP certification. A self-development system is applied to make the machine easy to operate.
10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design 1 10 Plate/min Diagnostic Reagent Liquid Filling Machine with Ceramic Pump and 304 Stainless Steel Desktop Design 2
The machine adopts a bottle mold fast loading method, allowing different bottle types to be switched quickly and conveniently. Fully desktop design ensures easy operation and accessibility.
Packing Information
Dimension Gross Weight
130*60*60 CM 120 kg
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine includes a 1-year warranty. We provide lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We provide comprehensive user manuals, instructional videos, and technical support for installation, debugging, and operation.
Q: What info will be needed to confirm machine models?
A: 1. The material status
2. Filling range
3. Manufacturing speed
4. Requirements for the production process
