Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX2 |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 9500-9600 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Application: | Packing Machine Filling System Upgrade | Pump Range: | 0.5-25ML |
|---|---|---|---|
| Pump Material: | SS316L/ High Purity Ceramic | Ceramic Part: | Al2O3/ ZrO2/ Sic |
| Air Range: | No Need | ||
| Highlight: | Ceramic Filling Metering Pump Kits,25ML Metering Pump Kits,Packing Machine Metering Pump Kits |
||
hihigh purity alumina Ceramic Filling Metering Pump Kits With high precision for Filling Machine Spare Partsgh purity alumina Ceramic Filling Metering Pump Kits With high precision for Filling Machine Spare Parts
Characteristic
1. The metal part of the contact material is made of 316 stainless steel. The pump body has better corrosion resistance. The operation of the pump will not produce trace impurities to pollute the liquid. Removable pump head plunger assembly for cleaning and maintenance.
2. The metering pumps of this series have very high metering accuracy and repetitive consistency, and the accuracy is better than 5,000 of positive and negative.
3. The X2 series is the most widely used, simple structure.
Application
1. Suitable for ceramic pump manufacturing and upgrading.
2. It can be used for matching and reforming the filling part of the packaging machine. It is suitable for filling of electrolyte, medicinal liquid, biochemical reagent, chemical liquid, essential oil, essence liquid, emulsion, perfume, nail oil and other medium-low viscosity homogeneous liquid materials.
Technical data
| Item No. | -03 | -06 | -09 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc. | ||||||||
| Metal part: 316L stainless steel | |||||||||
| Filling range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore diameter | φ4 | φ5 | φ7 | φ10 | φ13 | φ15 | φ22 | φ25 | φ36 |

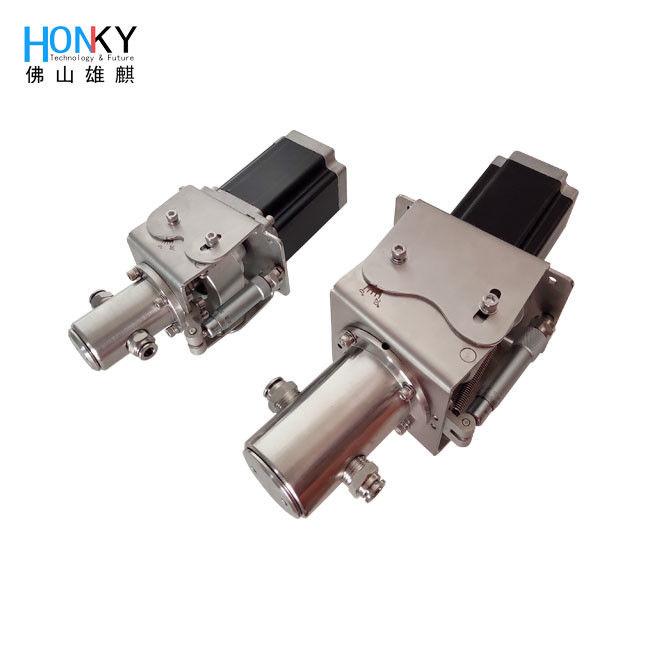

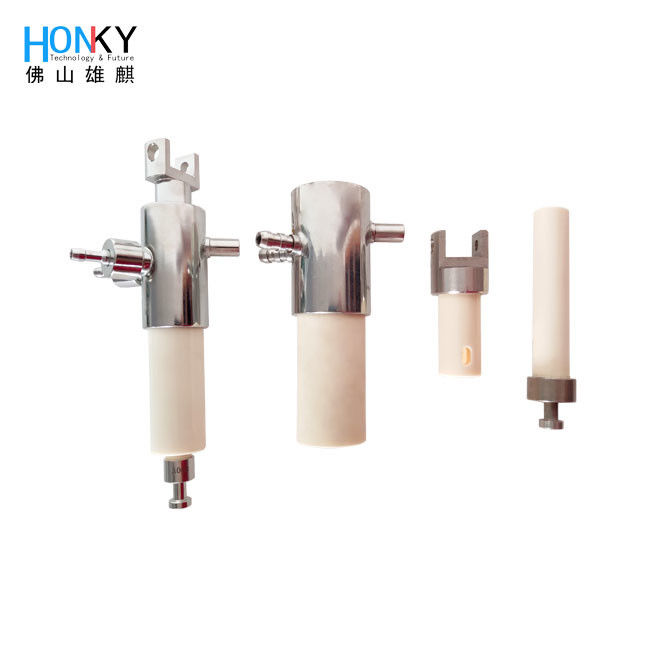

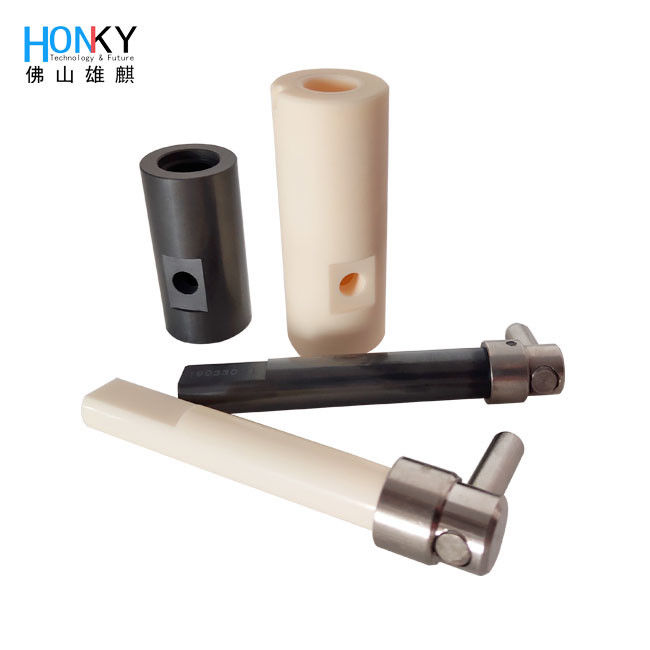

Product display
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
