| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX3 system |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 500-2000 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Application: | Pharma Filling Machine Upgrading | Filling Range: | 0.6-6ml |
|---|---|---|---|
| Pump Kit Material: | Stainless Steel 316L | Ceramic Part Material: | High Purity Zirconium |
| Volume Adjustment: | Full Automatic Adjusting Via Screen | Power: | Customizing |
| Highlight: | Pharma Liquid Filling Machine,Zirconium Ceramic Liquid Filling Machine,6ml Ceramic Filling Pump |
||
Pharma Liquid Filling Ceramic Plunger Pump System With High Purity Zirconium Ceramic For Filling Machine UpgradingPharma Liquid Filling Ceramic Plunger Pump System With High Purity Zirconium Ceramic For Filling Machine Upgrading
Features:
XQX3 system applies the newest XQX3 full auto-adjustment system. The automatic adjustment electric rotary ceramic plunger pump is an electric metering pump that can quickly and accurately control the filling volume, and it is also one of our company's patented products. At the same time, It keeps the XQX2 series's high filling precision which is within 0.5%. It is an ideal filling system for fully automatic filling machine upgrading.
Application:
--Using a high-performance motor to realize extremely fast and automatic adjustment of the filling volume, which is accurate and stable.
--The operation of the pump will not produce trace impurities to pollute the liquid and can be quickly disassembled and assembled.
Industry application:
--It can be used for matching and modification of the filling part of the packaging machine. Suitable for filling electrolyte, medicine, biochemical reagent, chemical liquid, etc.
Parameter
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump Material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
||||||||
Metal part: 316L stainless steel |
|||||||||
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
RPM |
450 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better than ±0.5% | ||||||||
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power Supply | AC220V 50/60Hz (110V can be customized) | ||||||||
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

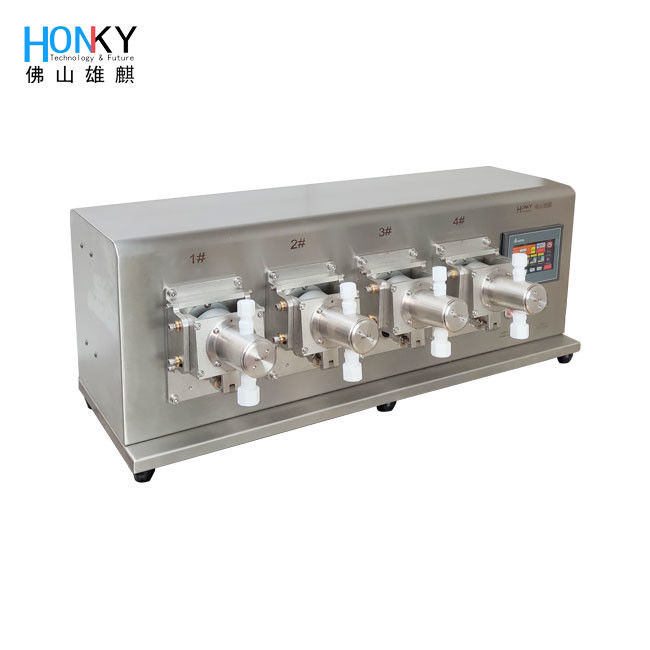

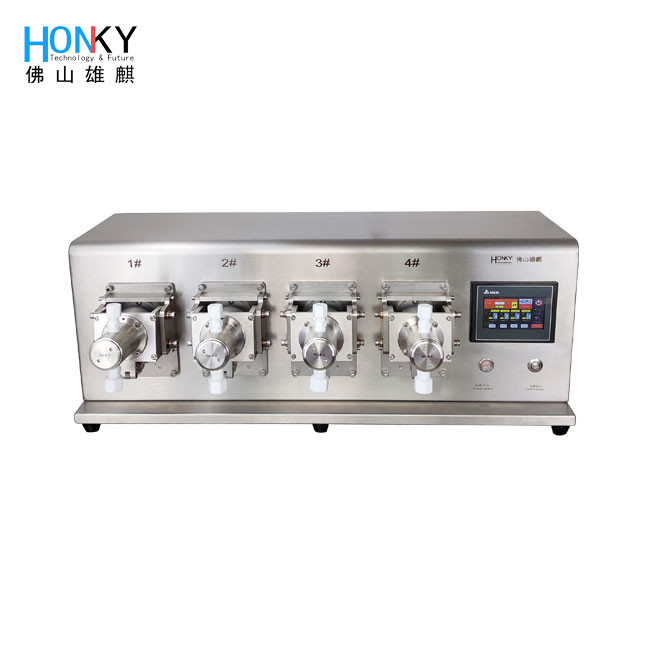

Product display
H

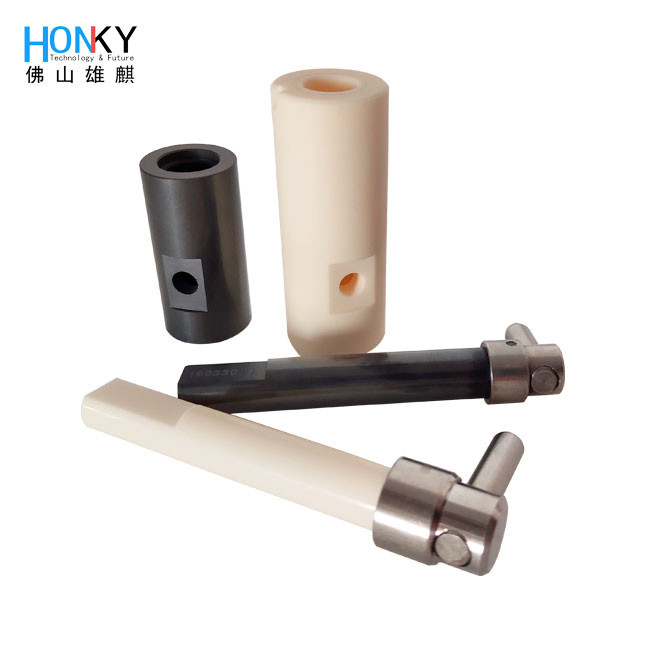

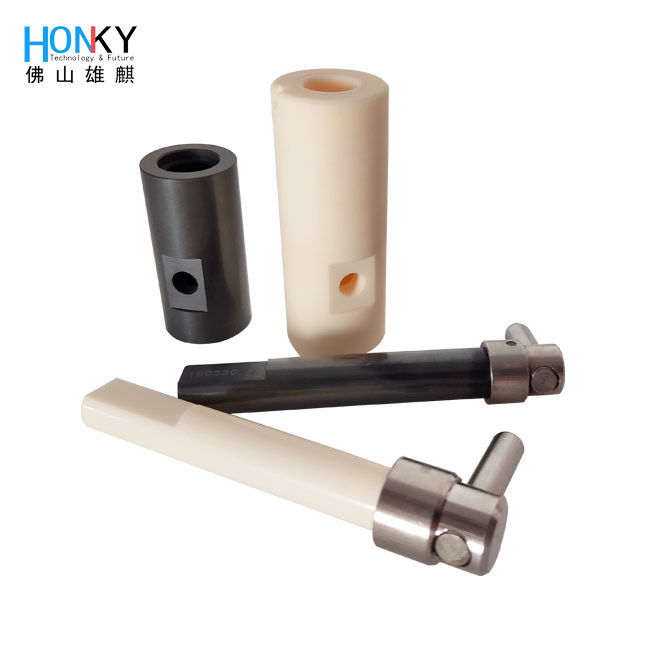

Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
