| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQIVD-96 |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(70*70*70 cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Machine Speed: | 12 Pcs/min | Pump Type: | XQX2 CERAMIC PUMP With 8 Sets Or More |
|---|---|---|---|
| Filling Accuracy: | Within ±0.5% | Weight: | 40 KGS |
| Driven Mode: | No Need Air | Power(w): | 15Kw |
| Highlight: | Bio Reagent Desktop Filling Machine,PCR Tube Desktop Filling Machine,Clean Bench Desktop Filling Machine |
||
DDesktop clean bench using PCR Tube Strip Bio Reagent Filling Machine For Line Type 96 Deep Well Plateesktop PCR Tube Strip Bio Reagent Filling Machine For Line Type 96 Deep Well Plategnostic Reagent Filling Machine 10 Plates / Min

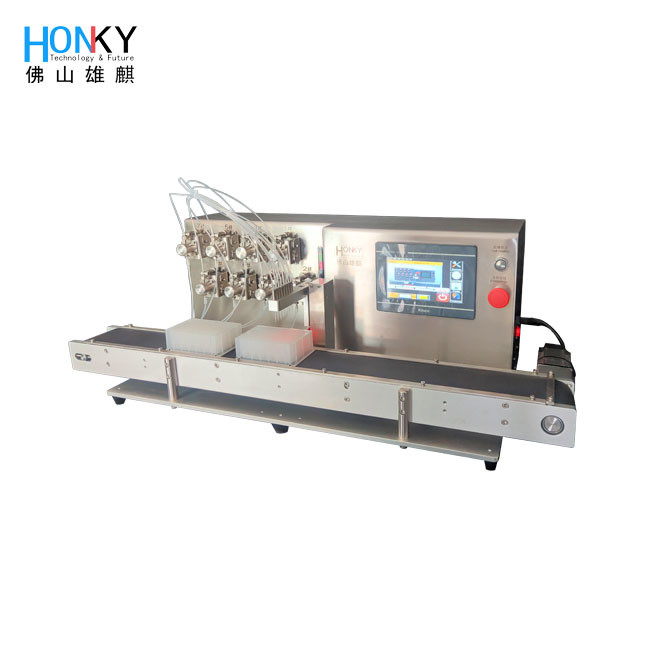

XQIVD-96 is a desktop filling machine which is mainly for the PCR Tube Strip filling or 96 deep well plate. Its size is small and the material is 304 stainless steel which is easy to clean and can be put on the clean bench to use. The filling pump applies a high-precision ceramic pump to ensure filling accuracy. The filling speed is up to 96 cells*10 PCS per minute The machine adopts the bottle mold fast loading method, different bottle types can be changed quickly and conveniently.
Technical data
| Model | XQIVD-96 |
| Pump type | Ceramic pump |
| Filling accuracy | ±0.5% |
| Filling range | 0.01-0.5ml |
| Manufacturing speed | 10-12 PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 1200*500*500mm (Main machine roughly) |
Full automatic desktop 96 deep well plate high precision ceramic pump filling machine for bio reagent

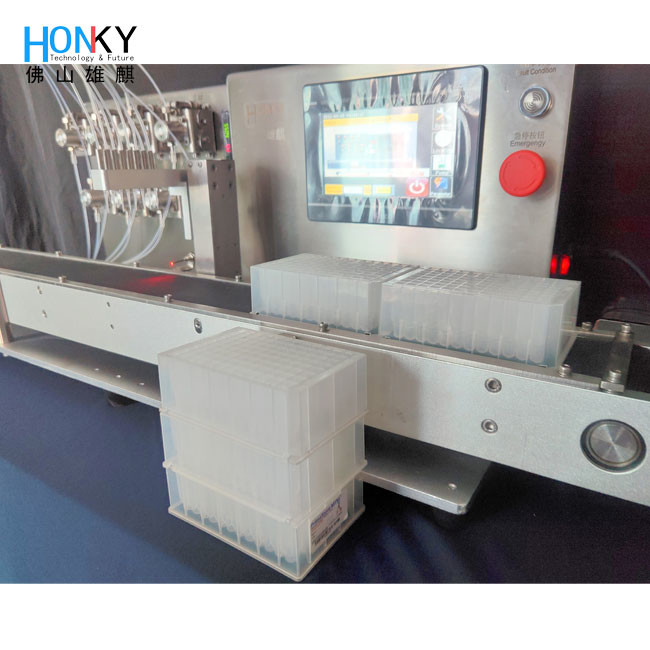

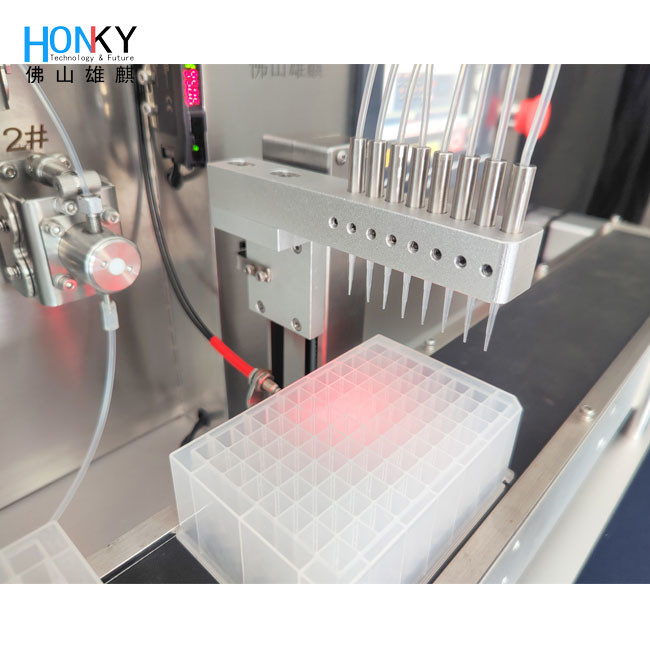

Product Display
This equipment has been tested to meet the requirements of GMP certification. A self-development system is applied to make the machine easy to operate.
the machine adopts a bottle mold fast loading method, different bottle types can be switched quickly and conveniently. Fully desktop design to make operation easy.
Packing Size
| Dimension | G.W. |
| 130*60*60 CM | 120 kg |
Line type 96 Deep Well Plate Desktop Diagnostic Reagent Filling Machine 10 Plates / Min
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
