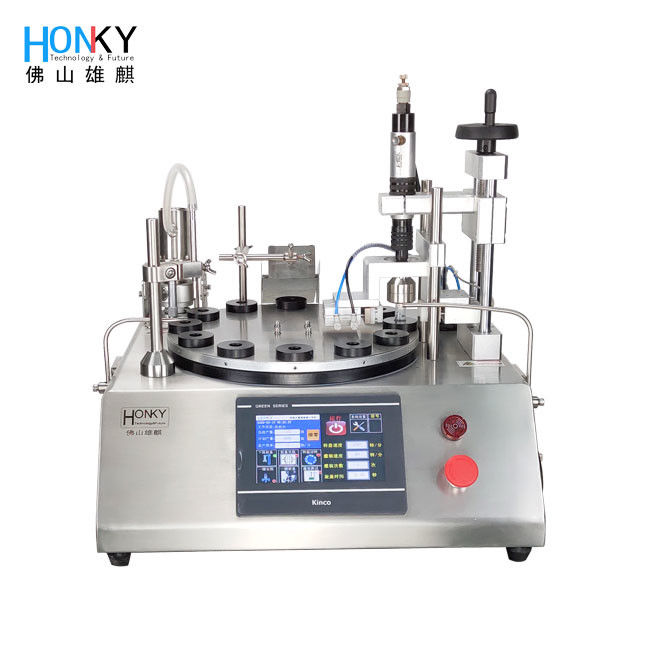

Antigen Test Kit Desktop Filling Machine For Reagent Cryo Tube Capping
Desktop Type Antigen Test Kit High Speed Filling Machine for reagent cryo tube filling and capping operations, designed for precision and efficiency in laboratory and manufacturing environments.
Key Features
- Rotary table design optimized for small bottle filling and plugging operations
- Pneumatic capping system for simple and efficient sealing
- High-precision ceramic piston metering pumps ensure accurate filling
- Fast filling speed with wide range capability
- Robot-compatible bottle-out system adaptable to various product sizes
- Compact design constructed from sanitary stainless steel for clean, hygienic operation
Technical Specifications
| Model |
XQZGX-12A |
| Pump Type |
Ceramic pump |
| Filling Accuracy |
≤±0.5% |
| Filling Range |
0.6-6ml |
| Manufacturing Speed |
25-30 PCS / minute |
| Power |
AC 220V 50-60Hz 550W |
| Air Pressure |
0.4-0.6Mpa |
| Machine Size |
710×660×670mm (Main machine roughly) |
Machine Features & Operation
This equipment has been tested to meet the requirements of GMP certification.
The capping part utilizes AIR torsional screwing to ensure optimal lid tightness and seal integrity.
The separation system employs high purity ceramic pumps, controlling injection volume per cycle by adjusting pump head angle, delivering exceptional measuring accuracy and repeatable consistency.
Compact desktop design ensures easy operation and minimal space requirements.
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we provide comprehensive OEM services and technical support. We welcome distributors to establish OEM partnerships.
Q: How about the after-sales service?
A: The machine includes a 1-year warranty with lifetime after-sales service and technical support.
Q: What are your Installation Services?
A: Installation support is included with all new machine purchases. We provide detailed user manuals, instructional videos, and technical guidance for installation, debugging, and optimal machine operation.
Q: What info will be needed to confirm machine models?
A: To determine the appropriate machine model, we require: 1. Material status, 2. Filling range requirements, 3. Manufacturing speed specifications, 4. Production process requirements.
