High Precision Full Automatic Piston Ceramic Filling Pump For biochemical reagent fillingHigh Precision Full Automatic Piston Ceramic Filling Pump For Filling Machine Accessory
Parameter
| Model |
XQQGS-12 |
XQQGS-25 |
XQQGS-50 |
XQQGS-100 |
| Pump head |
High purity ceramics |
| Filling accuracy |
≦±0.5% |
| Filling range |
1-12ml |
2-25ml |
5-50ml |
10-100ml |
| Manufacturing speed |
0-50 Bottle/min |
| Size of the pump |
500*100*100 mm |
| Power |
AC 220V 50-60Hz 50W |
| Air pressure |
0.4-0.6Mpa |
| Motor type |
Step motor/ servo motor |
The ceramic plunger pneumatic pump assembly adopts a precision ceramic plunger design, which is suitable for the quantitative infusion of medium and high viscosity liquids, creams, and creams (1000-100,000CPS) and materials containing certain particles.
Feature:
1. Full automatic adjustment structure and motor-driven type design make the pump have high metering accuracy and repeat consistency, and the accuracy is within ±0.8%.
2. The metal part of the contact material is made of 316L stainless steel and high purity ceramic, which has better corrosion resistance.
3. The pump body is connected in a quick-disassembly mode, which is convenient for disassembly, assembly, and cleaning, and meets the cleaning requirements of food hygiene standards.
Application:
It can be used for the matching and transformation of the filling part of the packaging machine. It is very suitable for filling cream, honey, electrolyte, medicinal solution, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, nail polish and other medium and high viscosity homogeneous liquid materials.

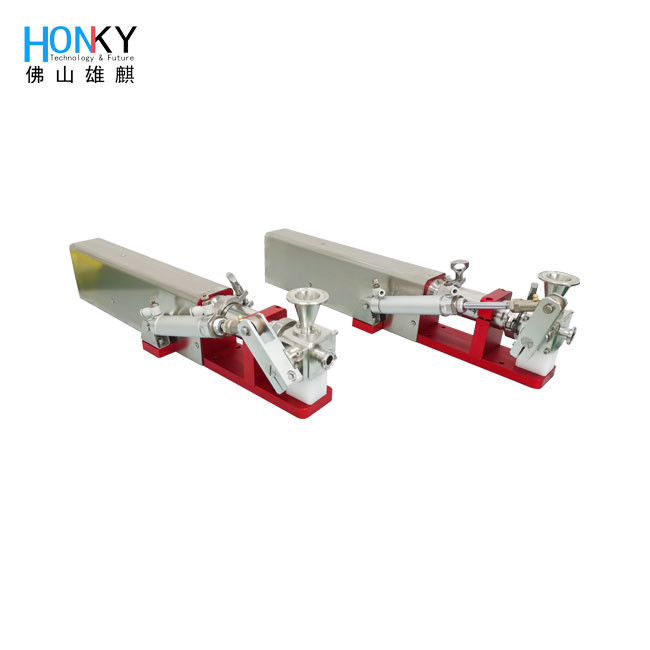

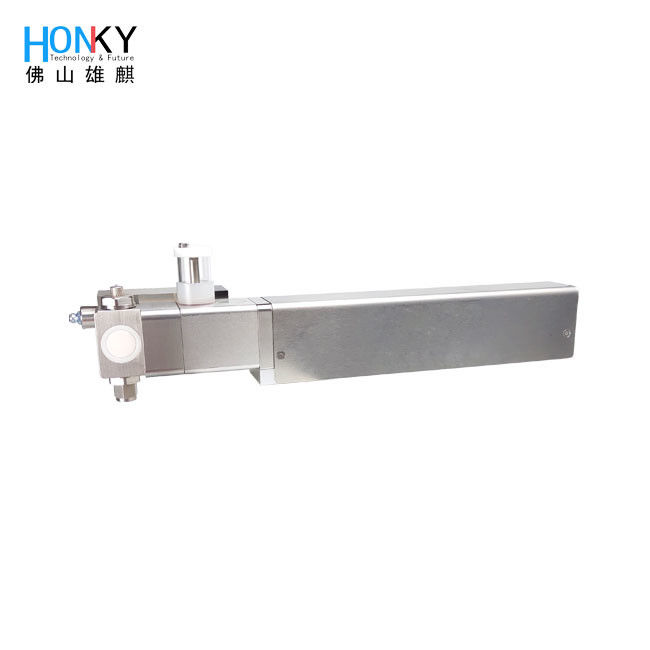

Product display
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
