Multiple Channel 1-10ml Paste Ceramic Filling Pump For Sachet Filling Machine Upgrading
ultiple Channel 1-10ml Paste Ceramic Filling Pump For Sachet Filling Machine Upgrading
The ceramic plunger pneumatic pump assembly adopts a precision ceramic plunger design, which is suitable for the quantitative infusion of medium and high viscosity liquids, creams, and creams (1000-100,000CPS) and materials containing certain particles.
Features:
1. The tail screw fine adjustment structure makes the pump have high metering accuracy and repeat consistency, and the accuracy is better than ±0.5%.
2. The metal part of the contact material is made of 316L stainless steel, which has better corrosion resistance.
3. The pump body is connected in a quick-disassembly mode, which is convenient for disassembly, assembly, and cleaning, and meets the cleaning requirements of food hygiene standards.
Application:
It can be used for the matching and transformation of the filling part of the packaging machine. It is very suitable for filling cream, honey, electrolyte, medicinal solution, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, nail polish, and other medium and high viscosity homogeneous liquid materials.
Parameter
| Model | XQHB-10 | XQHB-20 | XQHB-50 | ||
| Pump head | High purity ceramics | ||||
| Filling accuracy | ≦±0.5% | ||||
| Filling range | 1-12ml | 2-25ml | 5-50ml | ||
| Manufacturing speed | 0-40 Bottle/min | ||||
| Size of the pump | 250*150*400 cm | ||||
| Power | Full air driven | ||||
| Air pressure | 0.4-0.6Mpa | ||||

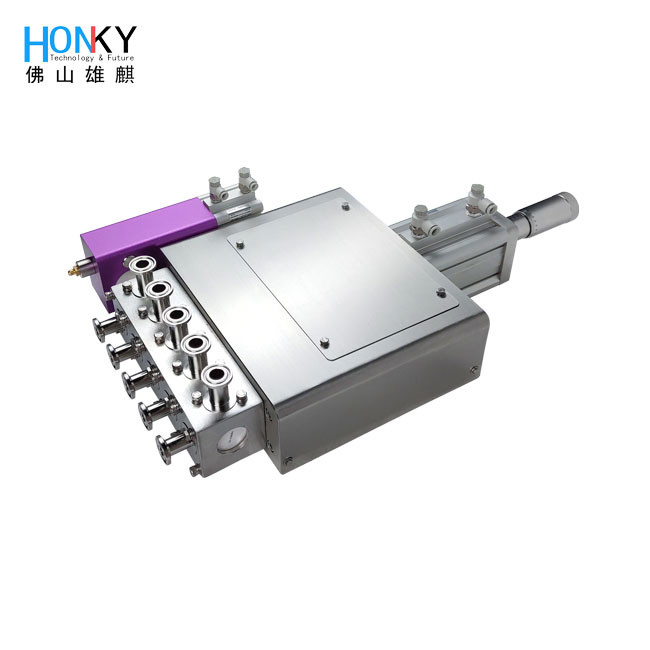

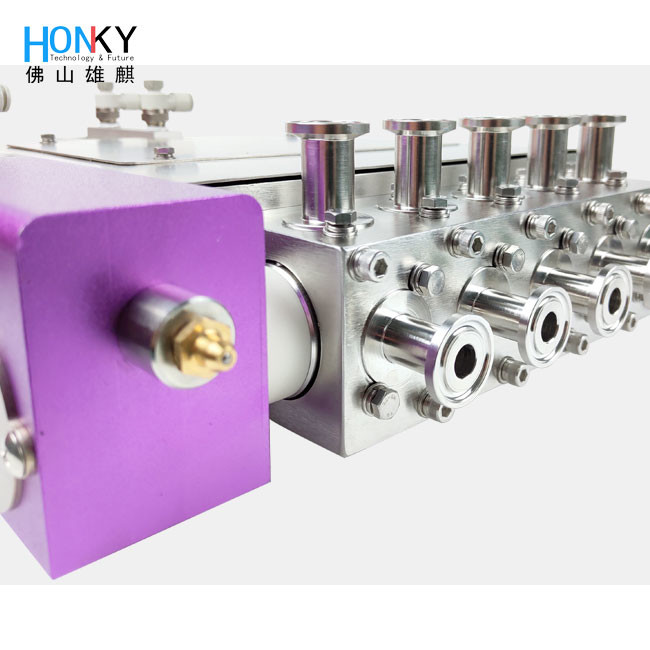

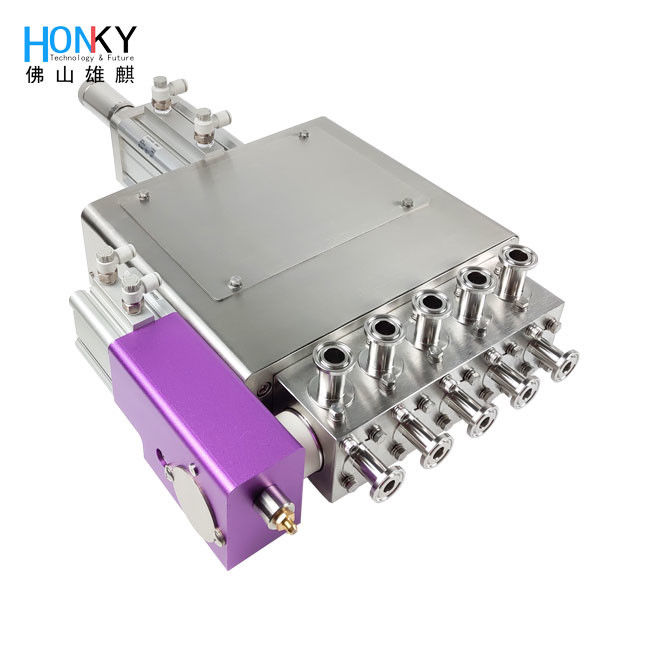

Product display
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
