| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQJZ-2S-XYZ |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(75*93*100 cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Filling Speed: | 200BPM For 2ml | Pump Type: | XQX2 Ceramic Pump(0.6-6ml) |
|---|---|---|---|
| Filling Accuracy: | Less Than ±0.5% | Machine Size: | 650*830*850mm |
| Machine Weight: | 85KGS | Power Supply: | 220V 50/60Hz 670w |
| Highlight: | POD Tube Filling Machine,12000BPH Tube Filling Machine,Dual Channel Tube Filling Machine |
||

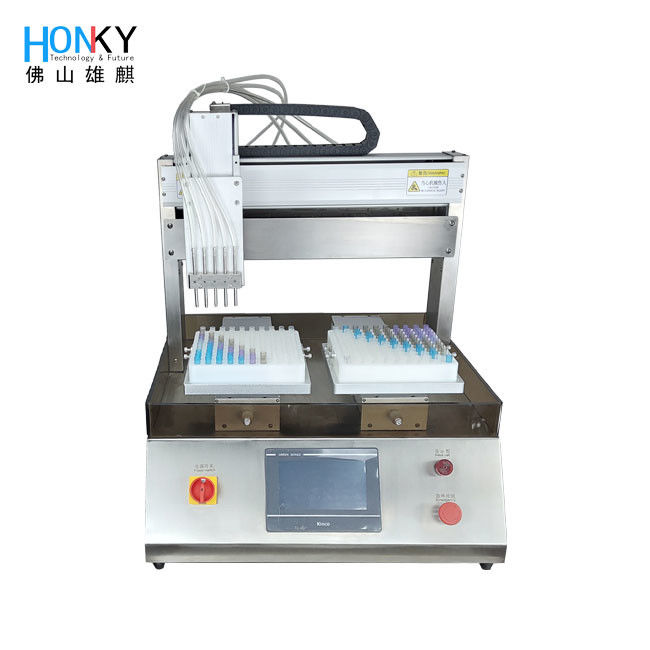

High Speed 12000 BPH 1.5ml E-Liquid POD Tube Filling Machine manufacturer with high precision ceramic pumpHigh Speed 12000 BPH 1.5ml E-Liquif Tube POD Filling Machine With High Precision Ceramic Pump Full Electric
Characteristic:
XQJZ-2S-XYZ adopts a dual-channel and XYZ axis design for filling small bottle that is non-stand-well such as the tube and the plastic ampoule. The filling speed is pretty fast, up to 250 PCS/min. The filling part uses the XQX2 series ceramic pumps to ensure filling accuracy which is within ±0.5%. The appearance adopts a desktop design, and the material is made of 304 stainless steel, which is easy to clean.
Technical parameters
| Target Products | Test tube/ampule/water needle/E-liquid bottle |
| Manufacturing speed | 130-140 PCS/min |
| Power | AC 220V 50-60Hz / 680w |
| product type | High Speed Filler |
Product display

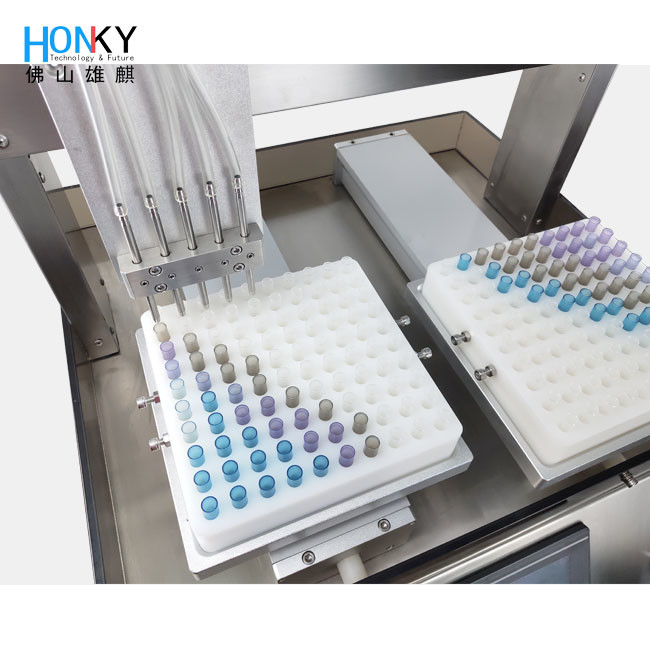

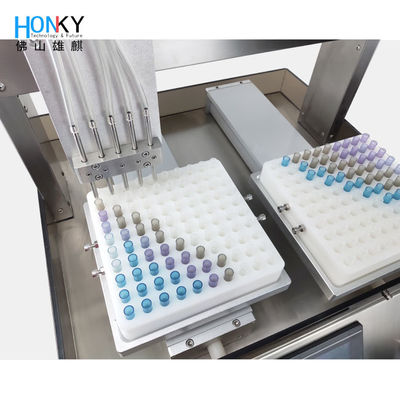

This equipment adopts XYZ three-axis linkage method, using Japanese sensor, Taiwan rail, which makes the positioning precise.
The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
