Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQZGX-12S |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（76*76*83cm 90KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Mainly For: | Bio Reagent Packing | Filling Range: | 0.2-2.8 Ml |
|---|---|---|---|
| Power Supply: | AC 220V 50/60Hz 670w | Air Pressure: | 3-6kg/cm2 |
| Filling Speed: | 35 B/m | Filling Pump: | XQX2 Ceramic Pump |
| Highlight: | 35BPM Vial Filling Machine,Bio Reagent Vial Filling Machine,2.8ml Vial Filling Machine |
||
DesDesktop 35BPM Rotary Reagent Vial Filling Machine With High Precision Filling For Bio Reagent Fillingktop 35BPM Rotary Reagent Vial Filling Machine With High Precision Filling For Bio Reagent Filling
Characteristic

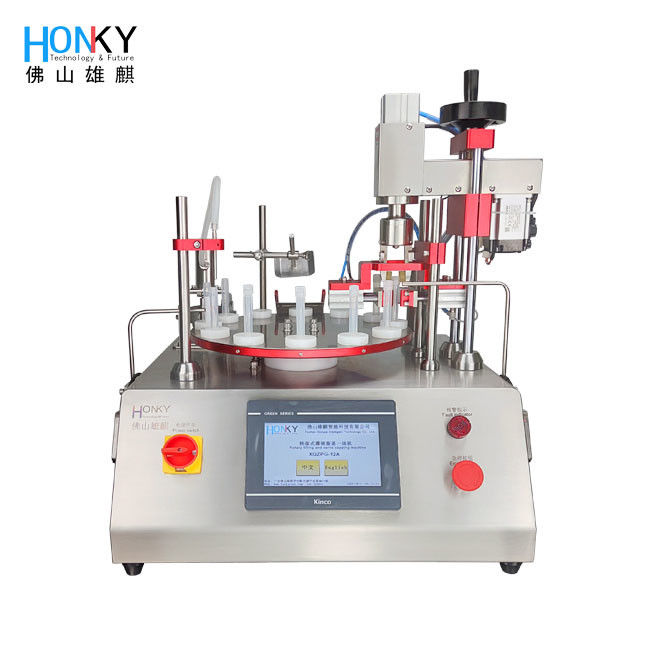

XQZGX-12S is desktop design liquid filling packing machine for the bio reagent filling and capping. it work with a speed of 35 to 40 bottles per minute which can handle big batch production. The core part of the machine is the pump which applies the XQX2 high-precision ceramic piston metering pumps to ensure filling accuracy. The capping part adopts the servo capping method to make the torque adjustable and different type caps can tight up easily. The whole machine is made of sanitary stainless steel, which is good and sanitary.
Technical data
| Model | XQZXG-12S |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±0.5% |
| Filling range | 0.6-6ml |
| Manufacturing speed | 25-30 PCS / minute |
| Power | AC 220V 50-60Hz 680w |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 710*660*670mm (Main machine roughly) |
Vial Filler display
This equipment has been tested to meet the requirements of GMP certification.

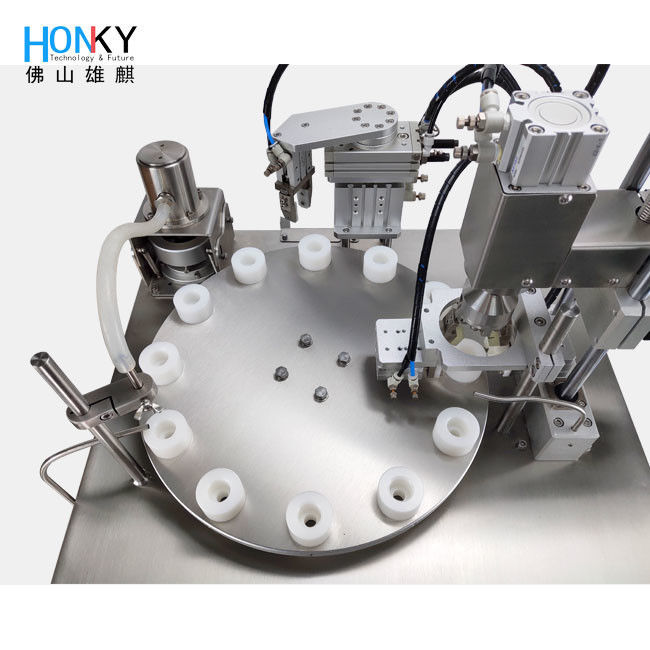

The capping part adopts SERVO torsional screwing to ensure the tightness and no-damaging of the lid.

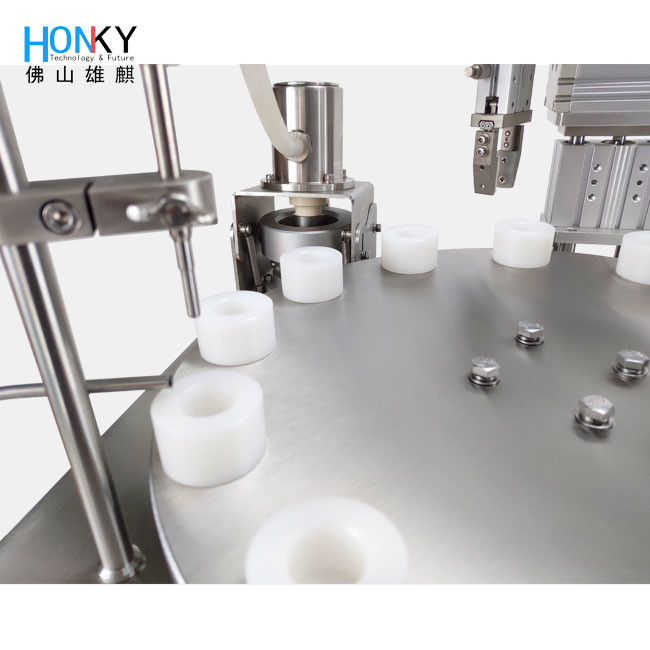

The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easy.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
