| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQQGS |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 2000 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Driven Mode: | Air Control And Electric Control | After Warranty Service: | Video Technical Support |
|---|---|---|---|
| Filling Speed: | 45-50 Pcs/min | Air Pressure: | 0.35-0.6Mpa |
| Application Area: | Food, MEDICAL, Chemical, Comestic | Size: | 60*15*15 Cm |
| Highlight: | Servo Motor Driven Ceramic Filling Pump,High Precision Plunger Ceramic Filling Pump |
||

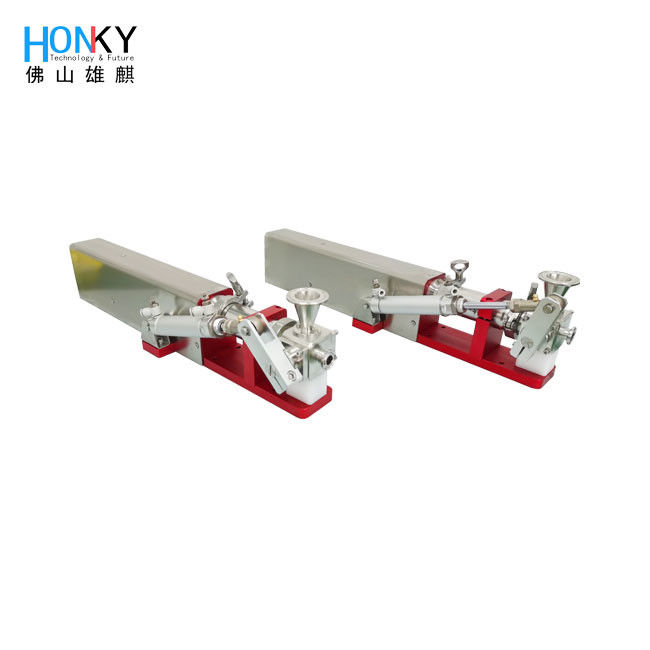

SeServo Motor Driven Ceramic Filling Pump Accessory with High precision ceramic plunger for high viscosity liquids Fillingrvo Motor Driven Ceramic Filling Pneumatic Pump Accessory With Ceramic Plunger For High Viscosity Liquids Filling
Parameter
| Model | XQQGS-12 | XQQGS-25 | XQQGS-50 | XQQGS-100 | |
| Pump head | High purity ceramics | ||||
| Filling accuracy | ≦±0.5% | ||||
| Filling range | 1-12ml | 2-25ml | 5-50ml | 10-100ml | |
| Manufacturing speed | 0-50 Bottle/min | ||||
| Size of the pump | 500*100*100 mm | ||||
| Power | AC 220V 50-60Hz 50W | ||||
| Air pressure | 0.4-0.6Mpa | ||||
| Motor type | Step motor/ servo motor | ||||
Feature:
1. Servo motor-driven mold is applied to make the adjustment free and only operate on the screen.

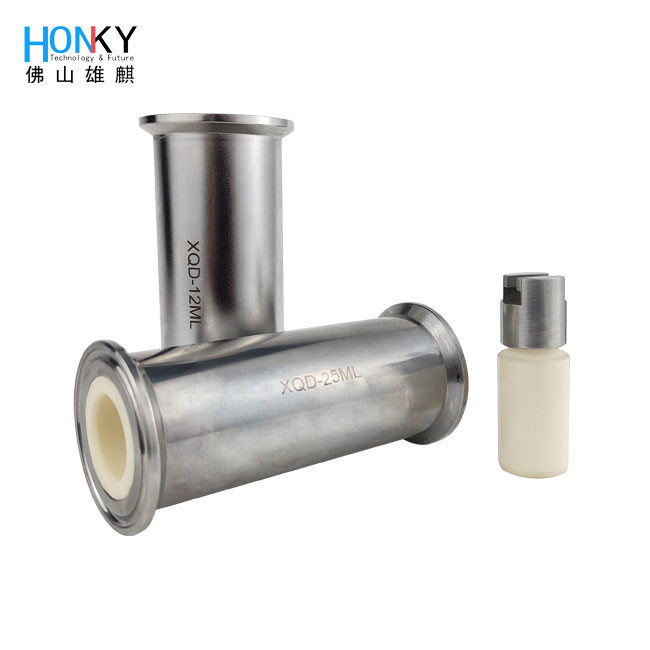

2. Ceramic plunger and piston are with high precision and let the filling accuracy super high and the accuracy is within ±0.8%.
3. The pump body is connected in a quick-disassembly mode, which is convenient for disassembly, assembly, and cleaning, and meets the cleaning requirements of food hygiene standards.
Application:
It can be used for the matching and transformation of the filling part of the packaging machine. It is very suitable for filling cream, honey, electrolyte, medicinal solution, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, nail polish and other medium and high viscosity homogeneous liquid materials.
Product display
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
