Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQ |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 9500-9600 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Application Area: | Food, MEDICAL, Chemical, Machinery & Hardware, Comestic | Pump Range: | 0.2-30ml |
|---|---|---|---|
| Material: | SS316/ceramic | Ceramic Part: | Al2O3/ ZrO2/ Sic |
| Mainly For: | Ceramic Pump Manufacturing And Upgrading | Common Size: | 0.2~2ml, 0.5~5ml, 1~10ml, 1~12ml, 3~30ml |
| Highlight: | 25ml Ceramic Filling Pump,SS316 Ceramic Filling Pump |
||
0.0.5 To 25ml Ceramic Pump With High Precision Ceramic Parts For Filling Machine Spare Parts5 To 25ml Ceramic Pump With High Precision Ceramic Parts For Filling Machine Spare Parts
Characteristic
| Specification | Ceramic pump kit |
| Type | Customizable as required |
| Common size | 0.2~2ml, 0.5~5ml, 1~10ml, 1~12ml, 3~30ml |
| Material contact part | high purity alumina(Al2O3), zirconia(ZrO2), etc. |
| Metal part | 316L stainless steel |
| Common application | Suitable for piston pump manufacturing and upgrading |

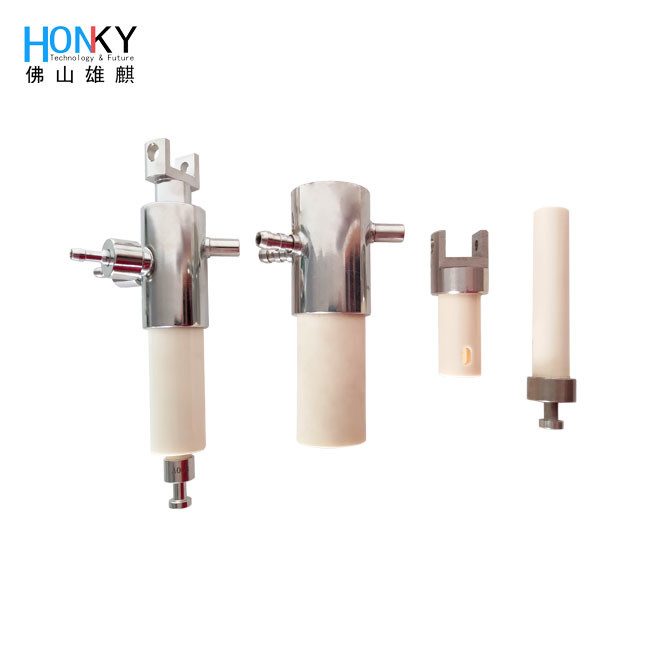

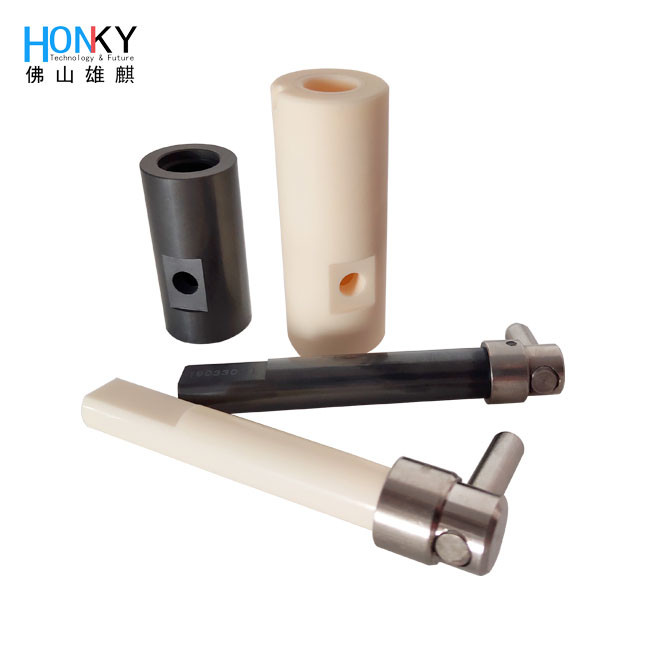

Product display
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
Application area
1. ODM and OEM products design;
2. Automatic manufacturing line design;
3. Cosmetic product packing;
4. Pharmaceutical and bio-reagent product packing;
5. Laboratory Liquid dispensing;
6. Lithium Battery Liquid dispensing;
7. Ceramic pump and ceramic pump part design;
8. Other area's material filling;
Advantage of our piston pump:
1.The working pressure, volumetric efficiency and total efficiency are all the highest. Because the plunger and cylinder bore are easy to process, the dimensional accuracy and surface quality can reach very high requirements, so the matching accuracy is high, the oil leakage is small, and the working pressure that can be achieved is generally 20-40 MPa, and the highest can reach 100 MPa.
2.The transmittable power is the largest. As long as the plunger diameter or the number of plungers is increased appropriately, the flow rate will increase. High pressure and high current can transmit high power.
3.Wide speed range.
4.Long service life and high power density. The main parts of the plunger pump are under pressure, so that the material strength can be fully utilized, so use long life, and low weight per unit power.
5.Good bidirectional variable capacity. Changing the stroke of the plunger can change the flow rate, making it easy to make various variable types.
