| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQIVD-96 |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(70*70*70 cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Packing Speed: | 9-10 Pcs/min | Pump Model: | XQX2-09 |
|---|---|---|---|
| Filling Accuracy: | ±0.55% | Machine Weight: | 41 KGS |
| Work For: | 96 Deep Well Plate | Driven Mode: | Full Electric Control |
| Highlight: | Diagnostic Reagent Filling Machine,Desktop Diagnostic Reagent Filling Machine,Full Electric Diagnostic Reagent Filling Machine |
||
FFull Electric DesktopDiagnostic Reagent Filling Machine Line Type Filling Machine For 96 Deep Well Plateull Electric DesktopDiagnostic Reagent Filling Machine Line Type Filling Machine For 96 Deep Well Plate
XQIVD-96 uses a desktop filling design, specially designed to fill 96 deep well plate. The appearance adopts desktop design, whose size is small and the material is 304 stainless steel which is easy to clean. The filling pump applies a high-precision ceramic pump to ensure filling accuracy. The filling speed is up to 96 cells*10 PCS per minute The machine adopts the bottle mold fast loading method, different bottle types can be changed quickly and conveniently.
Technical data of full electric desktop filling machine
| Model | XQIVD-96 |
| Pump type | Ceramic pump |
| Filling accuracy | ±0.5% |
| Filling range | 0.01-0.5ml |
| Manufacturing speed | 10-12 PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 1200*500*500mm (Main machine roughly) |
Full automatic desktop 96 deep well plate high precision ceramic pump filling machine for bio reagent

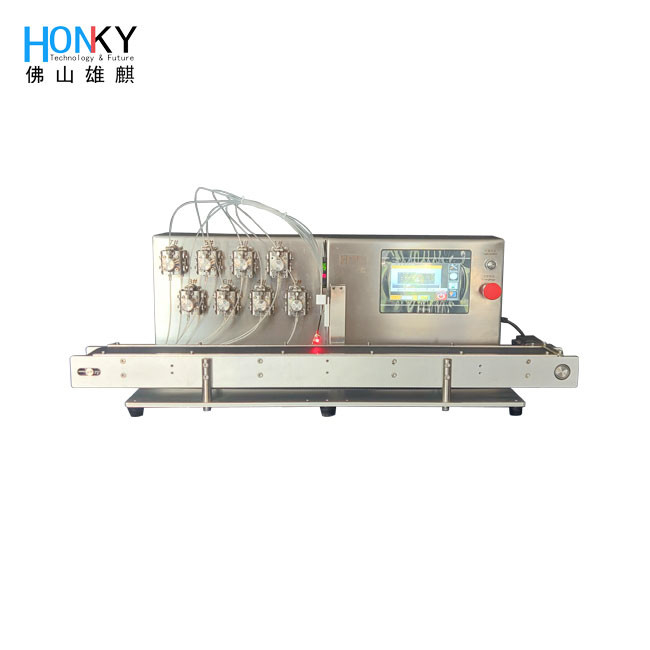

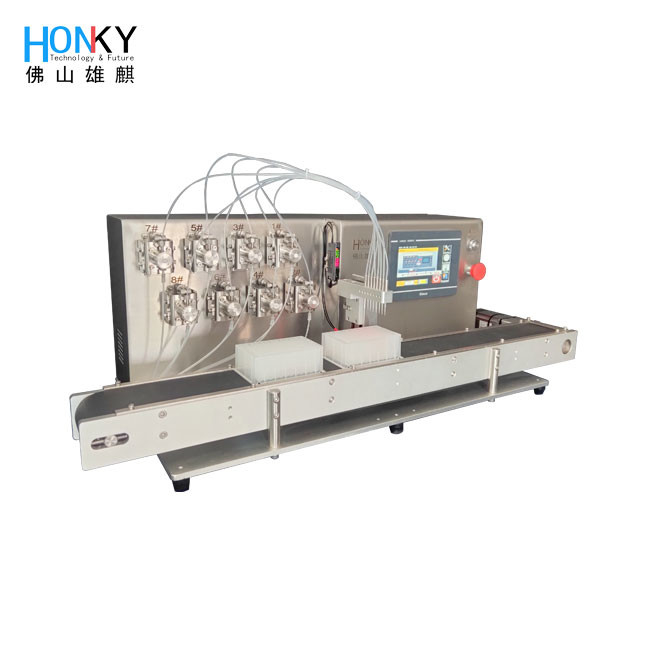

Product Display
This equipment has been tested to meet the requirements of GMP certification. A self-development system is applied to make the machine easy to operate.
the machine adopts a bottle mold fast loading method, different bottle types can be switched quickly and conveniently. Fully desktop design to make operation easy.
Packing Size of full electric desktop filling machine
| Dimension | G.W. |
| 130*60*60 CM | 120 kg |
