| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQZSG-30 |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing(70*70*70 cm) |
| Delivery Time: | 20 Days |
| Payment Terms: | T/T |
| Supply Ability: | 20 SETS per Month |
| Filling Speed: | 50 PCS/MIN | Filling Accuracy: | ±0.55% |
|---|---|---|---|
| Machien Size: | 430×550×380 Mm | Machine Weight: | 19 KGS |
| Pump Range: | 1-30ML | Application: | LIQUID FILLING |
| Highlight: | Desktop Liquid Filling Machine,Portable Liquid Filling Machine,50PCS / Min Desktop Filling Machine |
||
Desktop Using portable type liquid filling machine with piston pump for liquid fillingDesktop Using portable type liquid filling machine with piston pump for liquid filling
Characteristic:
1.The intelligent operating system is used to set up the corresponding loading capacity directly through the touch screen. It has high measurement precision and repetition consistency and avoids the cost of overfilling.
2.The sub-parts adopt high-purity ceramic pumps or SS316L.
3.304 stainless steel appearance, desktop structure, practical and convenient.
4.this equipment is suitable for quantitative filling of medium and low-viscosity liquids.
5.Precise and quantitative filling of various acid and caustic liquids.
Technical parameters
| Model | XQZSG-30-1 | XQZSG-30T-1 | |||
| Material of pump head | SS 316L | High purity industrial ceramics | |||
| Filling accuracy | 0.5-1% | ||||
| Pump head type | According to the needs | ||||
| Filling range | 1-30ml | 2-50ml | 1-5ml | 2-12ml | 2-30ml |
| Filling times per minute | 0-50 PCS / minute | ||||
| Size of Host Machine | 430×550×380 mm | ||||
| Power supply | AC 220V 50/60Hz 400W | ||||
Product display

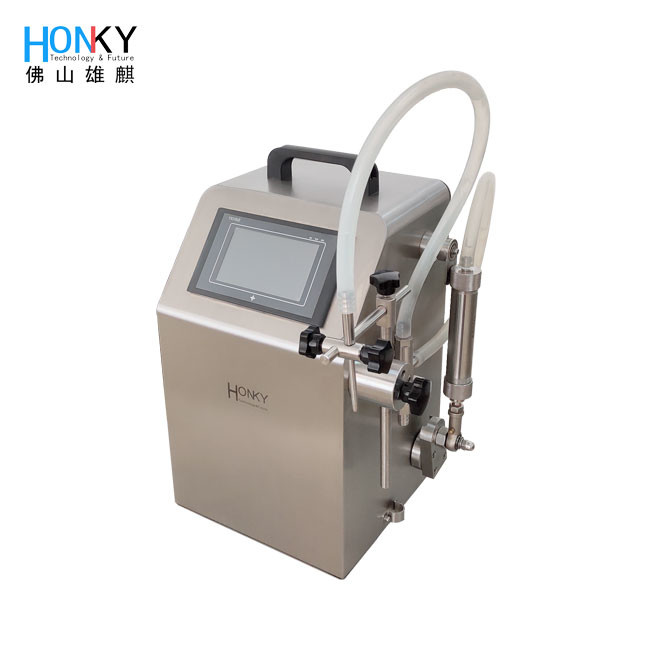

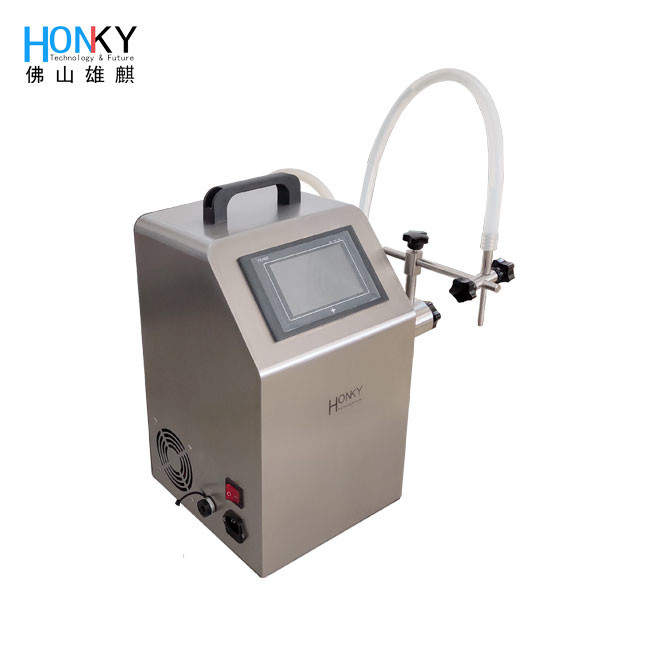

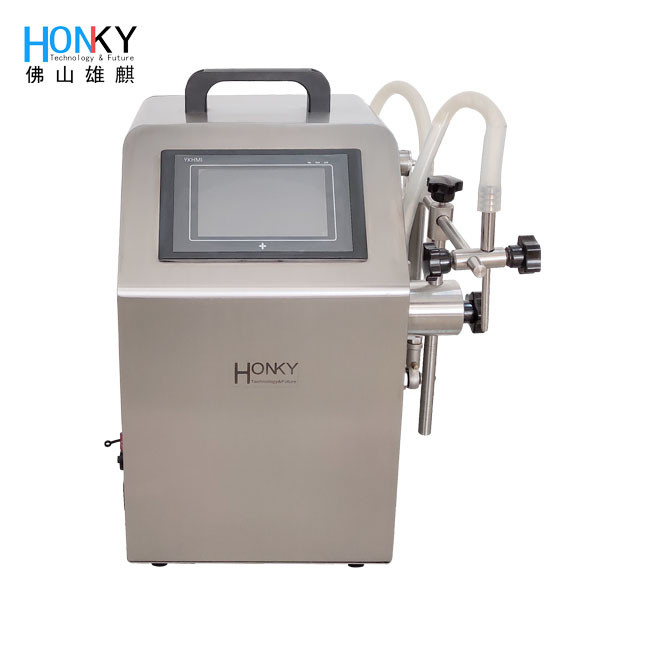

Front showing, Easy operating mode. It can be worked with pedal or works automatically.
The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
