Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX1/X2 system |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 500-2000 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Application Area: | Lithium Battery Liquid | Filling Range: | 10ml |
|---|---|---|---|
| Material Contact Part: | Stainless Steel 316L And Ceramic | Ceramic Part Material: | High Purity Alumina |
| Suitable For: | Filling Machine Upgrading | Volume Adjustment: | Manual Adjusting |
| Highlight: | Manual Adjusting Ceramic Filling Pump,10ml Ceramic Filling Pump |
||
DesktDesktop Type 10ml High End Piston Pump Ceramic Filling Pump For Lithium Battery Liquid Dispensingop Type 10ml High End Piston Pump Ceramic Filling Pump For Lithium Battery Liquid Dispensing
Features of 10ml High End Piston Pump:
1. The metal part of the contact material is made of 316 stainless steel, the pump body has better corrosion resistance.
2. This series of metering pumps have very high metering accuracy and repeat consistency, and the accuracy is better than plus or minus five thousandths.
3. The X1 series is based on the lateral differential angle, and the adjustment is more sensitive. The X2 series is the most widely used and has a simple structure.
4. The X1/X2 SYSTEM series is an implanted device that integrates the X1/X2 series ceramic pump and control system, with reasonable structure, compact design, and simple operation. It is an ideal matching solution for high-end packaging equipment.
Parameter of 10ml High End Piston Pump
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump Material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
||||||||
Metal part: 316L stainless steel |
|||||||||
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
RPM |
450 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better than ±0.5% | ||||||||
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power Supply | AC220V 50/60Hz (110V can be customized) | ||||||||
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

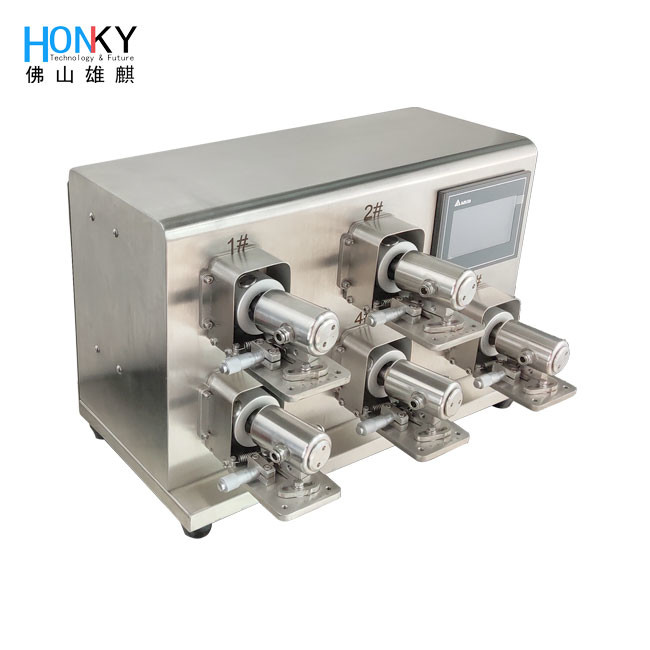

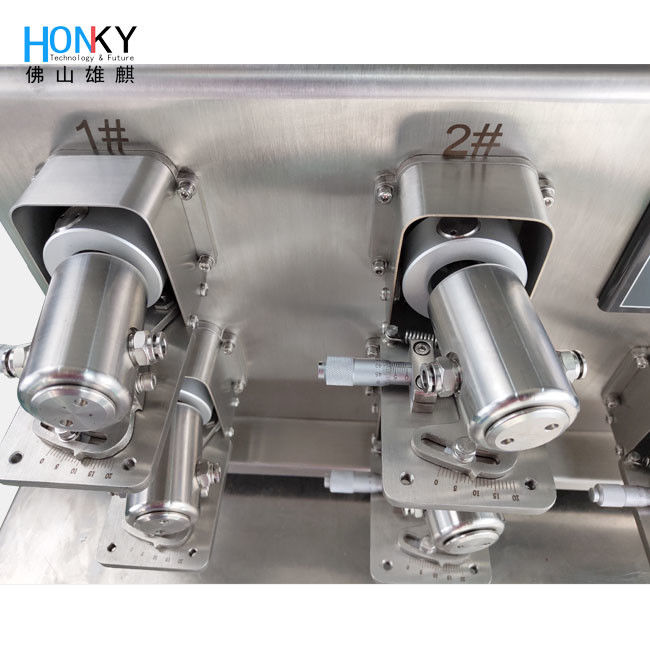

Product display of 10ml High End Piston Pump
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
