DDesktop Cream Jar Filling Machine With Ceramic rotary valve Piston Pump For Cosmetic Cream Fillingesktop Cream Jar Filling Machine With Ceramic Piston Pump For Cosmetic Cream Filling
Characteristic of Cream Jar Filling Machine
This equipment has been tested to meet the requirements of GMP certification.
1. Adopt intelligent operating system.
2. High precision ceramic rotary valve is used to control liquid input and output, and precise ceramic plunger and cavity are ensured to be stable and accurate.
3. 304 stainless steel appearance, desktop structure, practical and convenient.
4. Especially suitable for stable bottle shape.
5. Convenient and rapid change of bottle species with different diameters.
6. Support Modbus 485 communication protocol.
7. This equipment adopts German sensor to realize the function of no filling without bottle.
Technical parameters Cream Jar Filling Machine
| Model |
XQZPG-C1 |
| Pump |
High purity ceramics |
| Filling accuracy |
≤ ±1% |
| Filling range |
1-12ml |
2-25ml |
5-50ml |
10-100ml |
| Bottle diameter |
12-78mm |
| Manufacturing speed |
≤ 35 PCS/min |
| Size of Host Machine |
1130*430*550 mm 1-desktop ceramic pump filling machine |

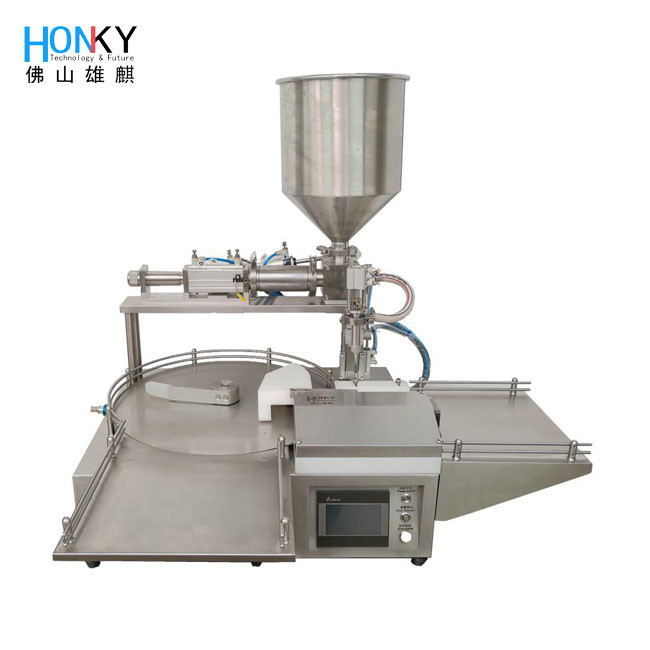

Product display of Cream Jar Filling Machine
Totally desktop design to cut down the space cost and make the operation easy.

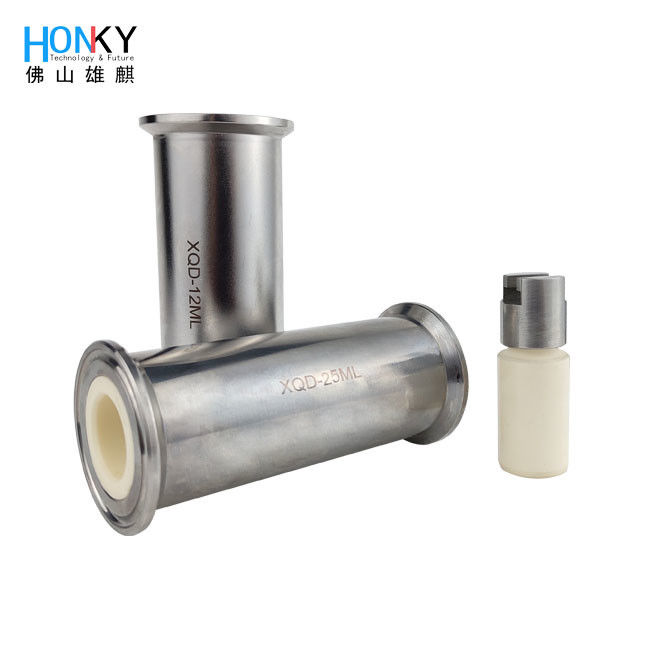

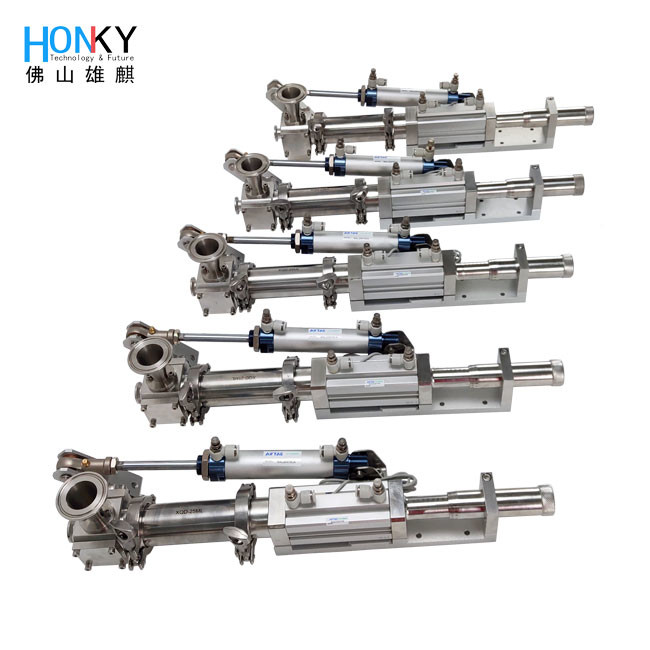

Advantage of our piston pump:
1.The working pressure, volumetric efficiency and total efficiency are all the highest. Because the plunger and cylinder bore are easy to process, the dimensional accuracy and surface quality can reach very high requirements, so the matching accuracy is high, the oil leakage is small, and the working pressure that can be achieved is generally 20-40 MPa, and the highest can reach 100 MPa.
2.The transmittable power is the largest. As long as the plunger diameter or the number of plungers is increased appropriately, the flow rate will increase. High pressure and high current can transmit high power.
3.Wide speed range.
4.Long service life and high power density. The main parts of the plunger pump are under pressure, so that the material strength can be fully utilized, so use long life, and low weight per unit power.
5.Good bidirectional variable capacity. Changing the stroke of the plunger can change the flow rate, making it easy to make various variable types.
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
