Home > Products > Desktop Filling Machine >
5ml Essential Oil Hand Held Desktop Filling Machine With High Precision Pump and 120 PCS/MIN Speed

5ml Essential Oil Hand Held Desktop Filling Machine With High Precision Pump and 120 PCS/MIN Speed

5ml Essential Oil Desktop Filling Machine

Hand Held Desktop Filling Machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQX2 system

Contact Us
Request A Quote
5ml Essential Oil Hand Held Desktop Filling Machine With High Precision Pump and 120 PCS/MIN Speed
5ml Essential Oil Hand Held Desktop Filling Machine With High Precision Pump and 120 PCS/MIN Speed 5ml Essential Oil Hand Held Desktop Filling Machine With High Precision Pump and 120 PCS/MIN Speed 5ml Essential Oil Hand Held Desktop Filling Machine With High Precision Pump and 120 PCS/MIN Speed
Product Details
Filling Speed:
120 PCS/MIN
Filling Accuracy:
Smaller Than ±0.55%
Machine Dimension:
36*36*36 Cm
Machine Weight:
16 KGS
Pump Range:
0.2-1.3 Ml XQX2 SERIES Pump
Application Area:
Medical,Chemical,Cosmetic
Highlight:

5ml Essential Oil Desktop Filling Machine

,

Hand Held Desktop Filling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing(70*70*70 cm)
Delivery Time
20 Days
Payment Terms
T/T
Supply Ability
20 SETS per Month
RELATED PRODUCTS
Good price Compact Hygienic Desktop Filling Machine with Ceramic Pump for High-Speed 960 Wells/Min PCR Deep Well Plate Bio Reagent Filling online video

Compact Hygienic Desktop Filling Machine with Ceramic Pump for High-Speed 960 Wells/Min PCR Deep Well Plate Bio Reagent Filling

Get Best Price
Good price Desktop Vial Filling Machine with High Precision Ceramic Pump 45-70 BPM and 304 Stainless Steel Construction online video

Desktop Vial Filling Machine with High Precision Ceramic Pump 45-70 BPM and 304 Stainless Steel Construction

Get Best Price
Good price High Precision Ceramic Pump Desktop Filling Machine for Bio Reagent with 50 PCS per minute Efficiency and Stainless Steel 304 Construction online video

High Precision Ceramic Pump Desktop Filling Machine for Bio Reagent with 50 PCS per minute Efficiency and Stainless Steel 304 Construction

Get Best Price
Good price 1500 BPH 0.6MPa Desktop Filling Machine With Ceramic Pump For Round Bottles online video

1500 BPH 0.6MPa Desktop Filling Machine With Ceramic Pump For Round Bottles

Get Best Price
Contact Us
Contact Now
Product Description
5ml Essential Oil Hand Held Desktop Filling Machine
The Desktop Type 5ml Essential Oil Hand Held Filling Machine features a high precision pump specifically designed for essential oil filling applications. This compact, laboratory-grade equipment delivers exceptional accuracy and efficiency for small-volume chemical filling operations.
Key Features
  • XQX2 SYSTEM lab-type desktop design for bio reagent tube filling
  • Handheld manual operation for sample bottle or tube filling
  • Filling capacity up to 100 PCS per minute
  • High precision ceramic pump ensures superior filling accuracy
  • Self-developed operating system for simple, intuitive operation
  • Compatible with honkyTech lab type capping and recapping machines
  • Can operate with foot pedal or in automatic mode
Technical Specifications
Item No. -3 -6 -9 -12 -15 -18 -21 -24 -27
Pump Material Ceramic parts: high purity alumina (Al2O3), zirconia (ZrO2), silicon carbide (SiC), etc.
Metal part: 316L stainless steel
Filling Range 4-80ul 10-140ul 20-240ul 50-700ul 0.2-1.5ml 0.2-2.9ml 0.6-6ml 1-12ml 2-25ml
Bore Diameter Φ4 Φ5 Φ7 Φ10 Φ13 Φ15 Φ22 Φ25 Φ36
RPM 450 | 350 | 300 | 250 | 200
Accuracy Better than ±0.5%
Motor Type 2 phase 4 line No.42 2 phase 4 line No.57 2 phase 4 line No.86
Power Supply AC220V 50/60Hz (or 110V)
Power Rate 75w 150w 240w
Product Display

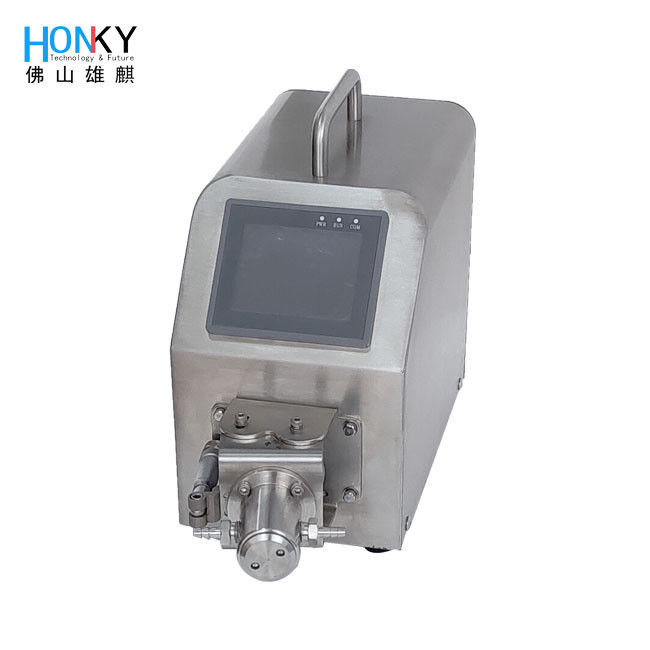

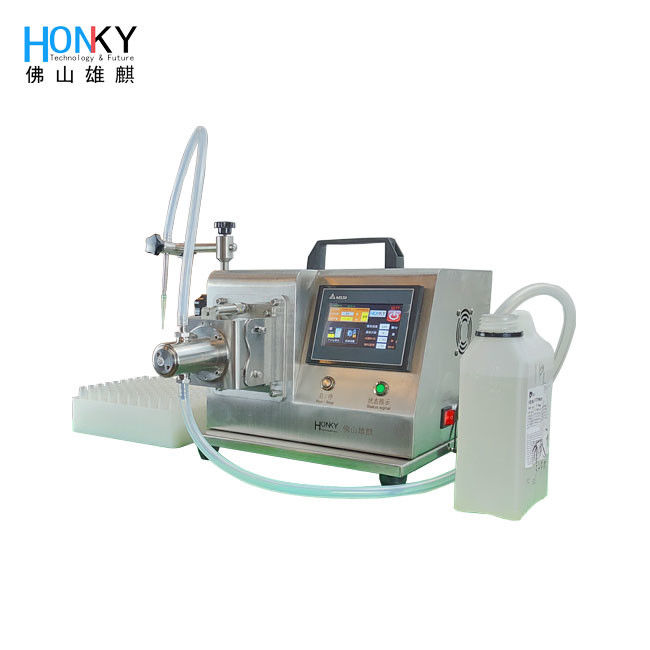

5ml Essential Oil Hand Held Desktop Filling Machine With High Precision Pump and 120 PCS/MIN Speed 0
Front showing, Easy operating mode. It can be worked with pedal or works automatically.

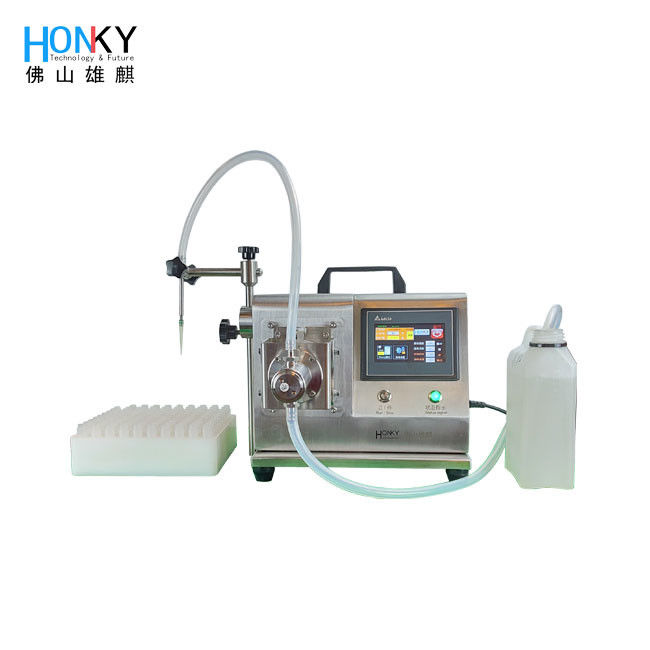

5ml Essential Oil Hand Held Desktop Filling Machine With High Precision Pump and 120 PCS/MIN Speed 1
Ceramic Pump Advantages
  • Low Friction, Increased Packing Life
  • Extreme Wear Resistance
  • Increased Corrosion Resistance
  • Improved Anti-Galling Surface
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd (HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
