| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQJYP-2A |
| Minimum Order Quantity: | 1 |
| Price: | USD 40000-41000 PER SET |
| Packaging Details: | Wooden packing |
| Delivery Time: | 35 Days |
| Payment Terms: | T/T |
| Supply Ability: | 5 Set per Month |
| Packing Speed: | 45 Bottle Per Minute | Machine Size: | 2410x1810x1750mm |
|---|---|---|---|
| Driven Mode: | Both Electric And Pneumatic | Power Need: | AC 220V 50-60Hz / 1.6kw |
| Bottle Type: | 30ml Essential Oil Bottle | Machine Weight: | 810kg |
| Highlight: | 30ml Bottle Filling Machine,Herbal Essential Oil Bottle Filling Machine |
||
Automatic Essentail Oil 30ml Bottle Filling Machine With High Precision Pump For Herbal Essential Oil PackingAutomatic Essentail Oil 30ml Bottle Filling Machine With High Precision Pump For Herbal Essential Oil Packing
Characteristic of 30ml bottle filling machine
XQJYP-2A applies an automatic filling and capping system, especially designing for filling and capping the essential oil bottle which is with the cap and plug. The filling speed is up to 2400 bottles per hour. The device adopts a German sensor to achieve the functions of no filling without the bottle, no capping without lids. The filling pump applies a high-precision ceramic pump to ensure filling accuracy. The material contact part is SS316L and ceramic which has good corrosive resistance. The capping part applies SERVO torsional screwing to ensure the tightness and no-damaging of the lid. At the same time, the machine can be connected with the labeling machine to be a filling line.
Technical data of 30ml bottle filling machine
|
Target Products |
Essential oil bottle |
|
Manufacturing speed |
40 PCS / minute |
|
Power |
AC 220V 50-60Hz / 1.5kw |
|
Air range |
0.5-0.7Mpa |

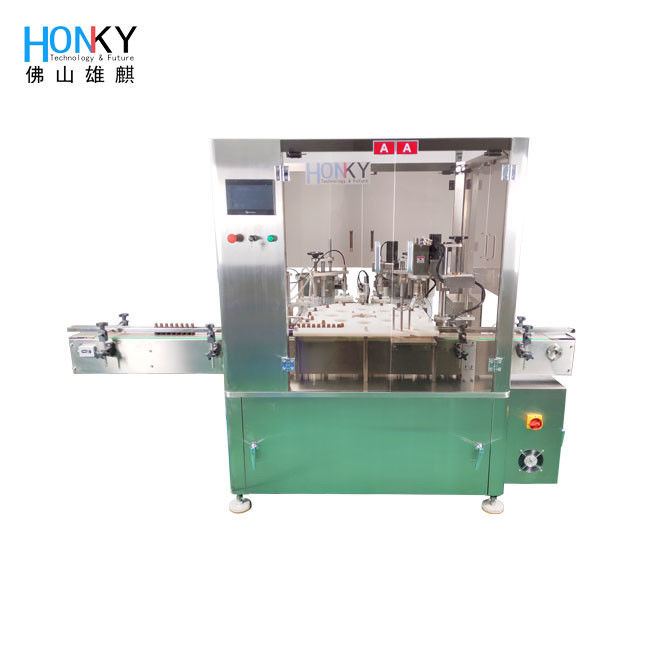

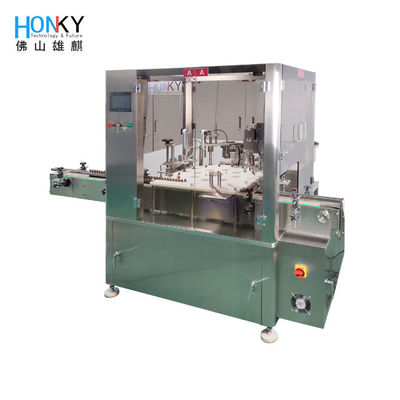

Product display of 30ml bottle filling machine

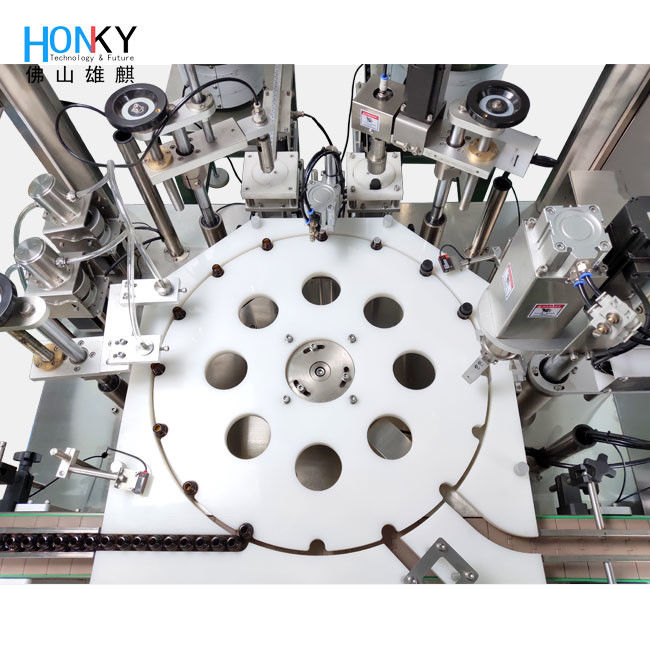

The compatible design combines the filling, cap loading and capping in one small space.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
