1010ml Glass Vial table top liquid filling machine semi automatic With the speed 80BPM AND High Precision Filling Systemml Glass Vial Table Top Liquid Filling Machine Semi Automatic For 10ml Glass Vial With High Precision Filling System
Characteristic of Table Top Liquid Filling Machine:
Characteristic: This equipment has been tested to meet the requirements of GMP certification.
1. Adopt an intelligent operating system.
2. The liquid separation part is high purity ceramic pump, which controls the amount of liquid injected in each circle by adjusting the Angle of the pump head.
3. 304 stainless steel appearance, desktop structure, practical and convenient.
4. Especially suitable for stable bottle shape.
5. Convenient and rapid change of bottle species with different diameters.
6. Support Modbus 485 communication protocol.
7. This equipment adopts a German sensor to realize the function of no filling without the bottle.
Technical parameters of Table Top Liquid Filling Machine:
| Model |
XQZPG-2B Double channel
|
| Pump head |
High purity ceramics |
| Filling accuracy |
≦±0.25% |
| Filling range |
0.5-2ml |
1.5-5ml |
3-10ml |
2-25ml |
|
| Bottle Diameter |
12-78mm |
| Manufacturing speed |
40-80 PCS/min |
| Size of Host Machine |
1130*430*240(mm) |
| Power |
AC 220V 50-60Hz 650W |

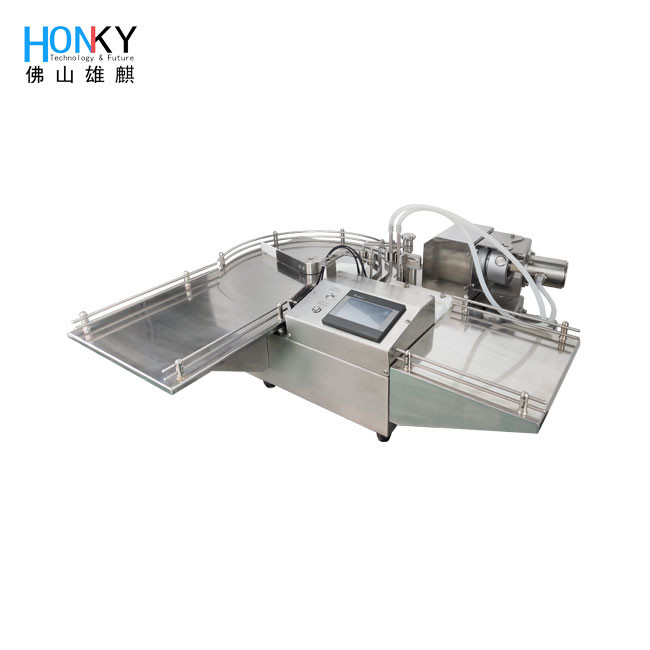

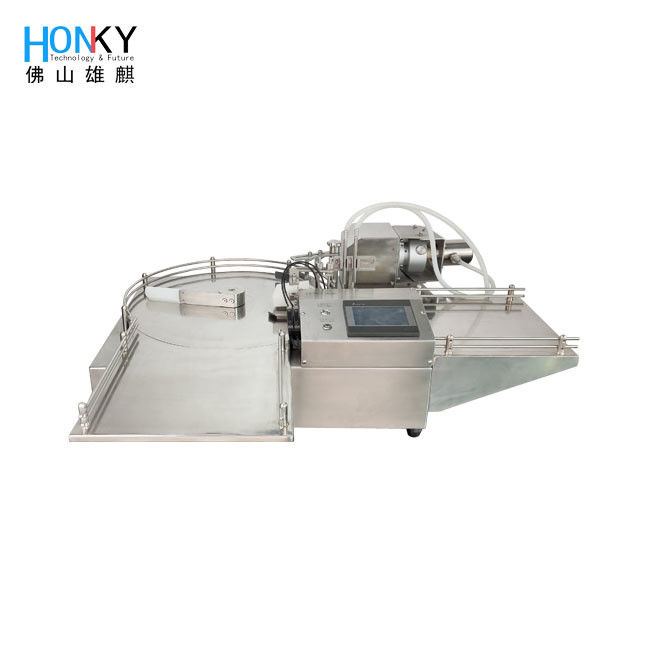

Machines display of Table Top Liquid Filling Machine:
Automatic dual-channel bottle loading, multi-head filling. Suitable for a variety of standing stability products.
The machine is made of stainless steel 304. AndThe size of the machine can be customized according to the customer’s need.

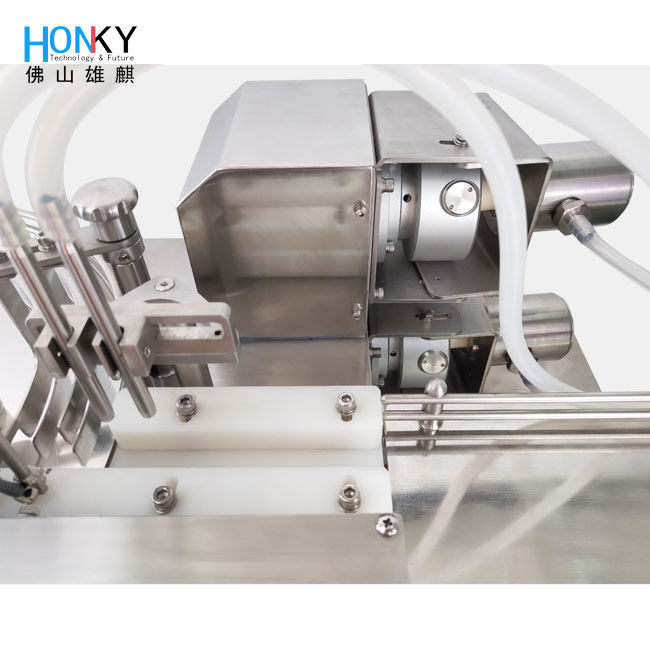

The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
Advantages for using the ceramic pump:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
