| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQQG |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 9500-9600 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Driven Type: | Air Driven | Warranty: | 13 Months |
|---|---|---|---|
| Filling Speed: | 40-55 Times Per Minute | Air Pressure: | 0.43-0.6Mpa |
| Application: | Food, MEDICAL, Chemical, Machinery & Hardware, Comestic | Filling Range: | 1-10 Ml |
| Highlight: | Single Way Valve Ceramic Filling Pump,-10ml Liquid Ceramic Filling Pump |
||
1-10ml Single-Way Valve Liquid Ceramic Filling Pump With High Precision ceramic plunger and Piston For E-Liquid FillingSingle-way valve liquid ceramic filling pump for high precision ion e-liquid filling
Parameter of Single-way valve liquid ceramic filling pump
| Model | XQQG-12 | XQQG-25 | XQQG-50 | XQQG-100 | |
| Pump head | High purity ceramics | ||||
| Filling accuracy | ≦±0.5% | ||||
| Filling range | 1-12ml | 2-25ml | 5-50ml | 10-100ml | |
| Manufacturing speed | 0-40 Bottle/min | ||||
| Size of the pump | 500*100*100 mm | ||||
| Power | AC 220V 50-60Hz 50W | ||||
| Air pressure | 0.4-0.6Mpa | ||||
The ceramic plunger pneumatic pump assembly adopts a precision ceramic plunger design, which is suitable for the quantitative infusion of medium and high viscosity liquids, creams, and creams (1000-100,000CPS) and materials containing certain particles.
Features of Single-way valve liquid ceramic filling pump
1. The tail screw fine adjustment structure makes the pump have high metering accuracy and repeat consistency, and the accuracy is better than ±0.5%.
2. The metal part of the contact material is made of 316L stainless steel, which has better corrosion resistance.
3. The pump body is connected in a quick-disassembly mode, which is convenient for disassembly, assembly and cleaning, and meets the cleaning requirements of food hygiene standards.
Industry application:
It can be used for the matching and transformation of the filling part of the packaging machine. It is very suitable for filling cream, honey, electrolyte, medicinal solution, biochemical reagent, chemical liquid, essential oil, essence, lotion, perfume, nail polish and other medium and high viscosity homogeneous liquid materials.

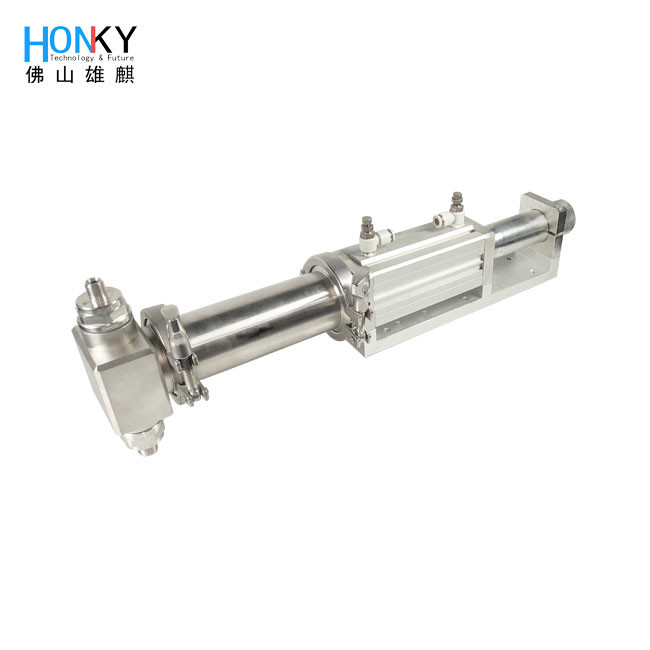

Product display of Single-way valve liquid ceramic filling pump

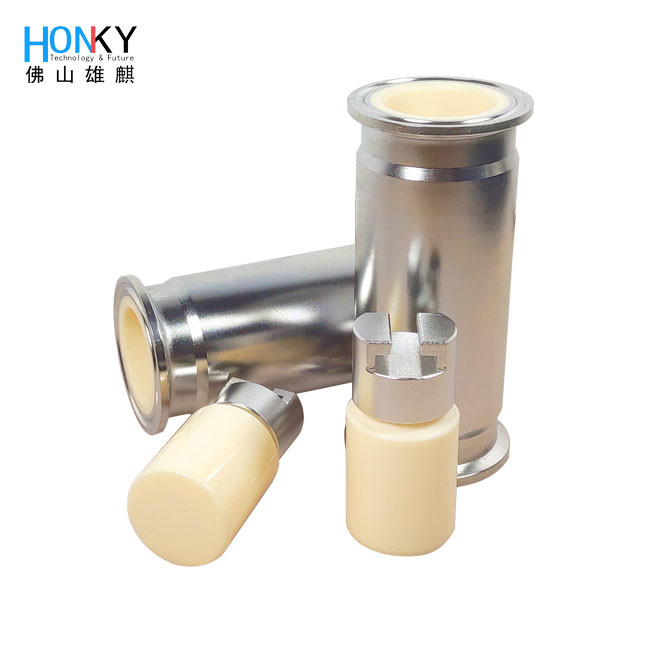

Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
