500ml Alcoholic Gel Washing Paste Filling And Capping Machine 40BPM 380V

Automatic Alcoholic Gel Washing Paste Filling And Capping Machine With High Precision Filling Pump For Washing Gel Pack

Automatic Alcoholic Gel Washing Paste Filling And Capping Machine With High Precision Filling Pump For Washing Gel Pack

Characteristic Of Gel Washing Paste Filling And Capping Machine

XQSRG-2S is designed for various cosmetic bottles, which can be filled and capped for liquid and cream Paste products. Its working method is manual bottle feeding, automatic filling, automatic stopper screwing, and automatic bottle discharge all in one rotary table. The filling part uses XQQG ceramic piston pumps to ensure filling accuracy, fast filling speed, and wide range. The capping part adopts the servo capping method, and the torque is adjustable to prevent the cap from being damaged. The self-developed system is to make the whole machine operation easy. The whole machine has a compact design. What's more, the machine can connect the conveyor to finish the packing in the box process or quality check process.

Technical data Of Gel Washing Paste Filling And Capping Machine

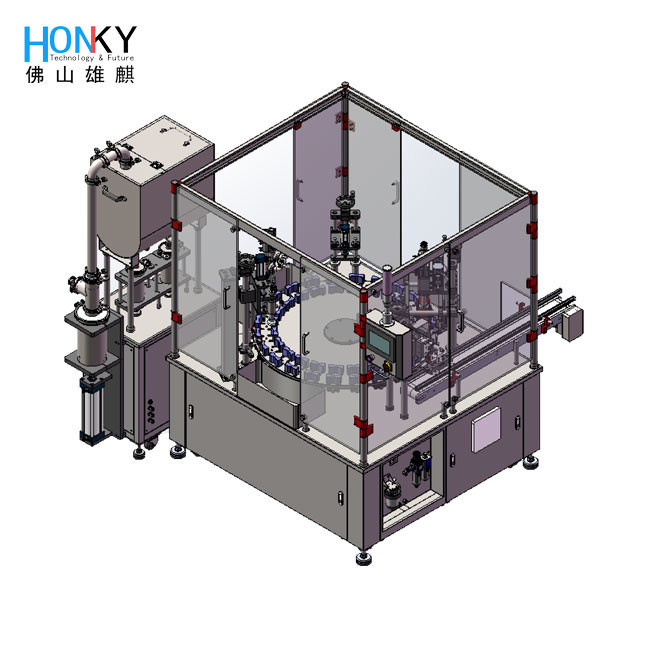

Machine display Of Gel Washing Paste Filling And Capping Machine

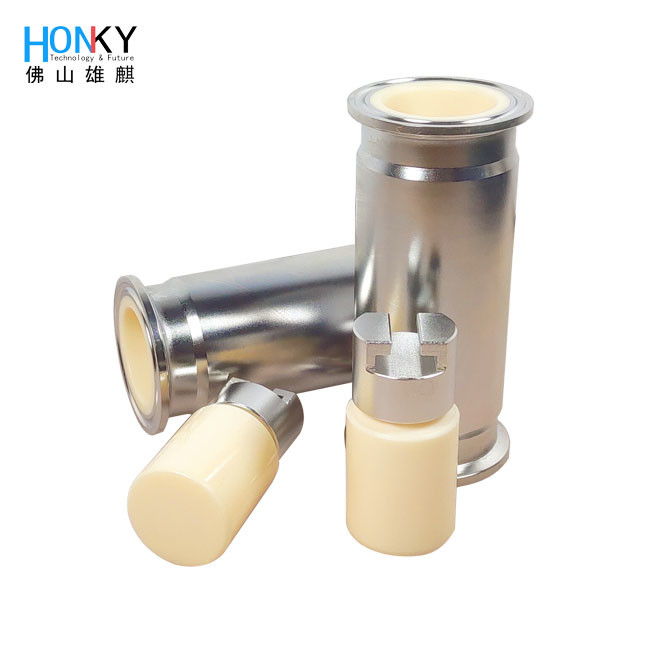

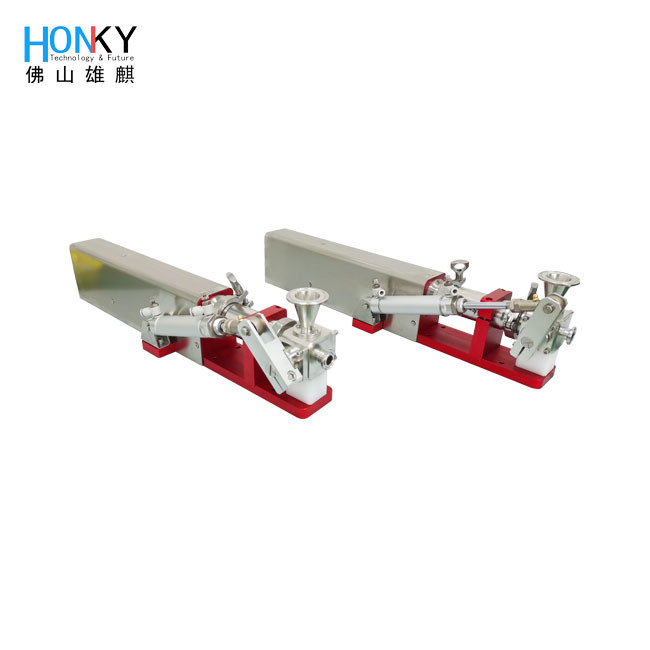

Advantage of our piston pump:

1.The working pressure, volumetric efficiency and total efficiency are all the highest. Because the plunger and cylinder bore are easy to process, the dimensional accuracy and surface quality can reach very high requirements, so the matching accuracy is high, the oil leakage is small, and the working pressure that can be achieved is generally 20-40 MPa, and the highest can reach 100 MPa.

2.The transmittable power is the largest. As long as the plunger diameter or the number of plungers is increased appropriately, the flow rate will increase. High pressure and high current can transmit high power.

3.Wide speed range.

4.Long service life and high power density. The main parts of the plunger pump are under pressure, so that the material strength can be fully utilized, so use long life, and low weight per unit power.

5.Good bidirectional variable capacity. Changing the stroke of the plunger can change the flow rate, making it easy to make various variable types.

About HonkyTech

Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
