hihigh purity alumina Ceramic Filling Metering Pump Kits With high precision for Filling Machine Spare Partsgh purity alumina Ceramic Filling Metering Pump Kits With high precision for Filling Machine Spare Parts
Characteristic
Good corrosion resistance: Ceramic materials have good chemical corrosion resistance to acids, alkalis, salts, and other chemicals. Therefore, ceramic plunger pumps can handle some corrosive liquids and extend the life of equipment.
Good wear resistance: The plungers and valve seats of ceramic plunger pumps are generally made of hard ceramic materials, which have high hardness and good wear resistance. They are not prone to wear or deformation problems during long-term use.
Good stability: Ceramic plunger pumps have low vibration and noise during high-speed operation, and the plunger moves smoothly. Therefore, their flow rate and pressure stability are good.
Good temperature adaptability: Ceramic materials have a small thermal expansion coefficient and can adapt to a wide range of temperatures. Therefore, ceramic plunger pumps can work normally in high or low temperature environments.
No leakage or pollution: Ceramic plunger pumps have good sealing performance and are not prone to leakage problems. Also, ceramic materials are non-toxic, tasteless, and free of pollution, which will not cause secondary pollution to the transported liquid.
Application
The ceramic plunger pump can be used for conveying liquids with high viscosity, high temperature, corrosiveness, and prone to crystallization. Common applications include conveying, pressurizing, metering, and mixing processes in industries such as petrochemicals, food processing, and pharmaceutical manufacturing.
Technical data
| Item No. |
-03 |
-06 |
-09 |
-12 |
-15 |
-18 |
-21 |
-24 |
-27 |
| Pump material |
Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc. |
| Metal part: 316L stainless steel |
| Filling range |
4-80ul |
10-140ul |
20-240ul |
50-700ul |
0.2-1.5ml |
0.2-2.9ml |
0.6-6ml |
1-12ml |
2-25ml |
| Bore diameter |
φ4 |
φ5 |
φ7 |
φ10 |
φ13 |
φ15 |
φ22 |
φ25 |
φ36 |

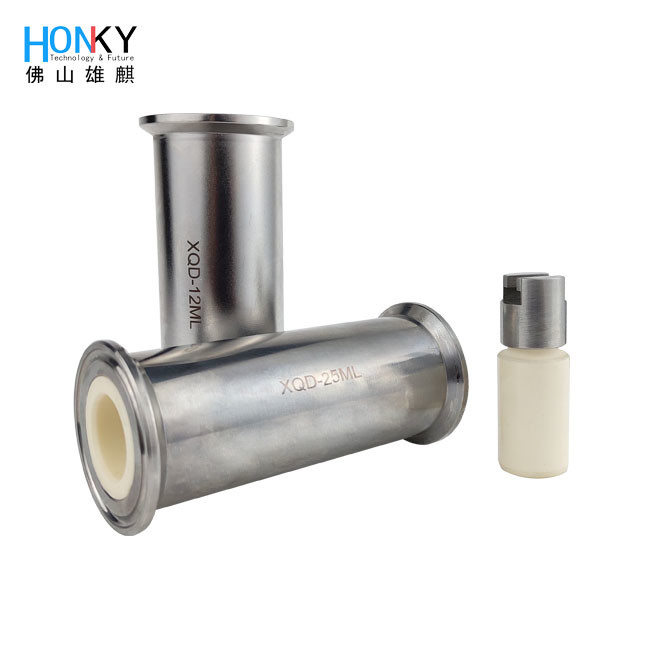

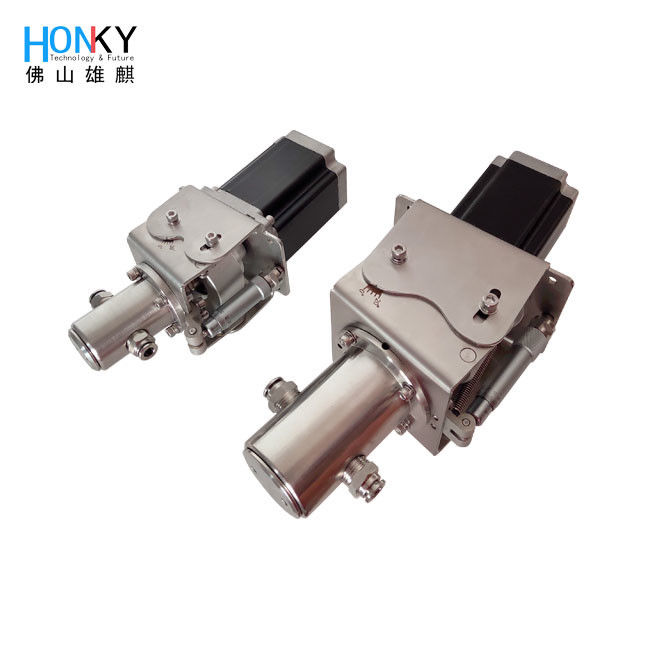

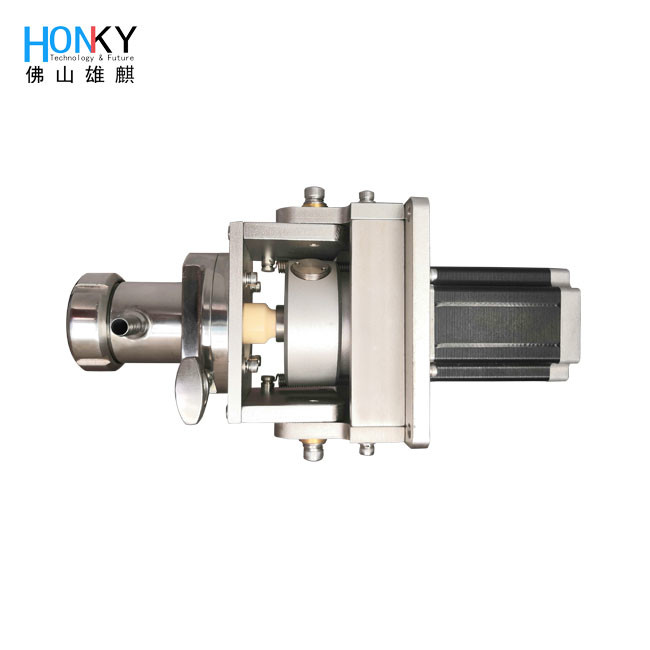

Product display
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
