DDesktop 15ml E-Liquid Filling Machine With Hgih Precision Ceramic Pump For E-Cigar Oil Fillingesktop 15ml E-Liquid Filling Machine With Hgih Precision Ceramic Pump For E-Cigar Oil Filling
Characteristic of Desktop 15ml E-Liquid Filling Machine:
XQZPG adopts a double-channel design, which is specially designed for filling small round bottles. The filling part uses high-precision ceramic pumps to ensure filling accuracy. The filling speed is fast, up to 4,000 bottles per hour. The appearance adopts a desktop design, a small area, and the material is made of 304 stainless steel, which is easy to clean.
Technical parameters of Desktop 15ml E-Liquid Filling Machine:
| Model |
XQZPG-2B Double channel
|
| Pump head |
High purity ceramics |
| Filling accuracy |
≦±0.25% |
| Filling range |
0.5-2ml |
1.5-5ml |
3-10ml |
2-25ml |
|
| Bottle Diameter |
12-78mm |
| Manufacturing speed |
40-80 PCS/min |
| Size of Host Machine |
1130*430*240(mm) |
| Power |
AC 220V 50-60Hz 650W |
Highlights of Desktop 15ml E-Liquid Filling Machine:
This equipment has been tested to meet the requirements of GMP certification.
1. Adopt an intelligent operating system.
2. The liquid separation part is high purity ceramic pump, which controls the amount of liquid injected in each circle by adjusting the angle of the pump head.
3. 304 stainless steel appearance, desktop structure, practical and convenient.
4. Especially suitable for stable bottle shape.
5. Convenient and rapid change of bottle species with different diameters.
6. Support Modbus 485 communication protocol.
7. This equipment adopts a German sensor to realize the function of no filling without bottle.

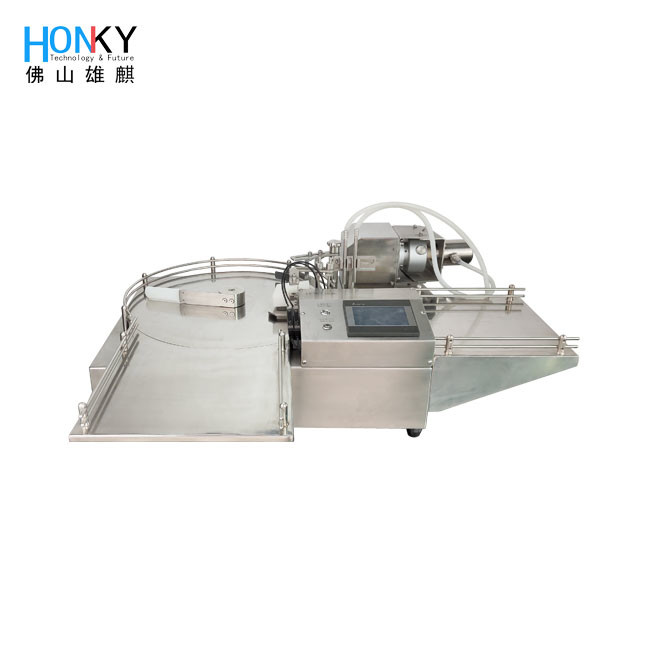

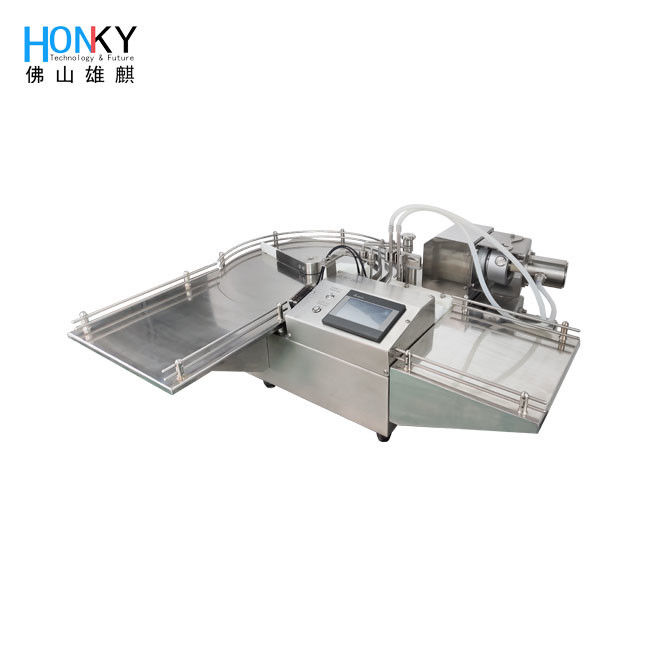

Machine display of Desktop 15ml E-Liquid Filling Machine:
Totally desktop design to cut down the space cost and make the operation easy.
Automatic dual-channel bottle loading, multi-head filling. Suitable for a variety of standing stability products.
The machine is made of stainless steel 304. And the size of the machine can be customized according to the customer’s need.

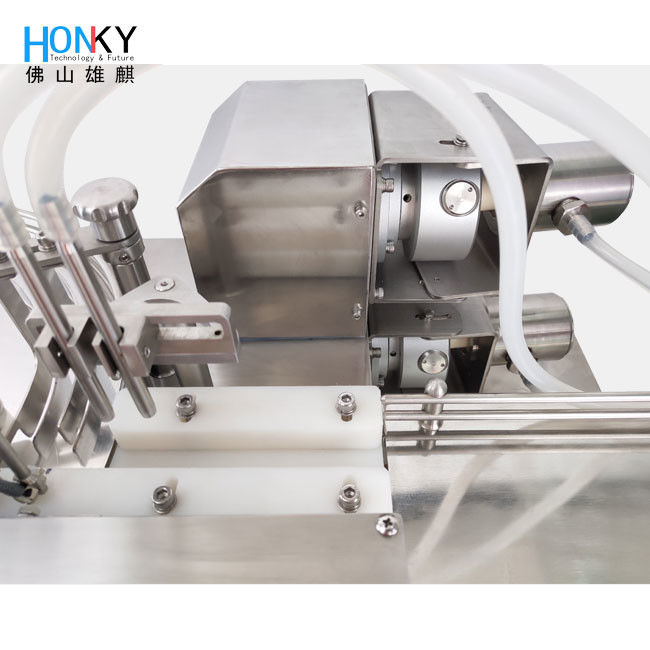

The filling part adopts the precision ceramic pump developed independently, and the repeated accuracy can reach ±0.3%.
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
