| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQQG |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 9500-9600 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Driven Type: | Servo Motor Driven | Warranty: | 13 Months |
|---|---|---|---|
| Filling Speed: | 30-40 Times Per Minute | Air Pressure: | No Need |
| Application: | Food, MEDICAL, Chemical, Machinery & Hardware, Comestic | Filling Range: | 10-100 Ml |
| Highlight: | 100ml Liquid Ceramic Filling Pump,Servo Motor Driven Ceramic Filling Pump |
||
10-100ml Single Way Valve Liquid Ceramic Filling Pump With Servo Motor Driven
10-100ml Single Way Valve Liquid Ceramic Filling Pump With Servo Motor Driven
Parameter of Single-way valve liquid ceramic filling pump
| Model | Plunger diameter |
Stroke | Volume | Accuracy | Speed | Size of the pump(mm) | |||||
| ml | CPM | A | B | C | D | E | F | ||||
| Q-12S | 15 | 70 | 1-12 | ±0.8-1% | 40-60 | 500 | 50.50 | 144 | 50 | 30 | φ5.5 |
| Q-25S | 22 | 2-25 | 500 | 50.50 | 144 | 50 | 30 | φ5.5 | |||
| Q-50S | 30 | 5-50 | 500 | 50.50 | 144 | 50 | 30 | φ5.5 | |||
| Q-100S | 45 | 80 | 10-100 | 518 | 50.50 | 144 | 90 | 35 | φ5 | ||
| Q-200S | 50 | 110 | 20-200 | 518 | 50.50 | 144 | 90 | 35 | φ5 | ||
| Q-300S | 70 | 30-300 | 518 | 50.50 | 144 | 90 | 35 | φ5 | |||
Features of Single-way valve liquid ceramic filling pump
QD-S series ceramic pump integration adopts a precision ceramic plunger design, which is suitable for quantitative injection of low-viscosity liquids. The pump uses a servo screw to control the filling volume. It only needs to be set on the control screen without manual intervention. It has high measurement accuracy and repeat consistency, and the accuracy is better than ±0.8%. The metal part in contact with the material is made of 316L stainless steel, which has better corrosion resistance. Fully quick-release connection is easy to disassemble and clean, which is in line with the cleaning requirements of food hygiene standards.

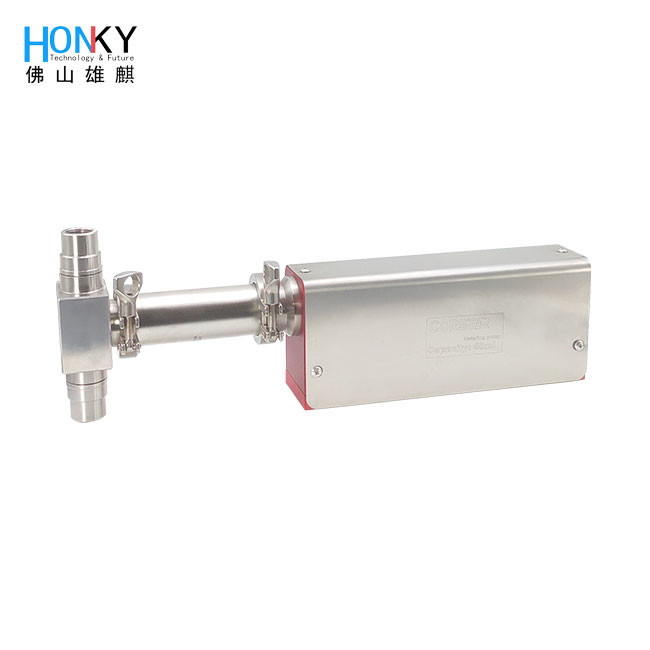

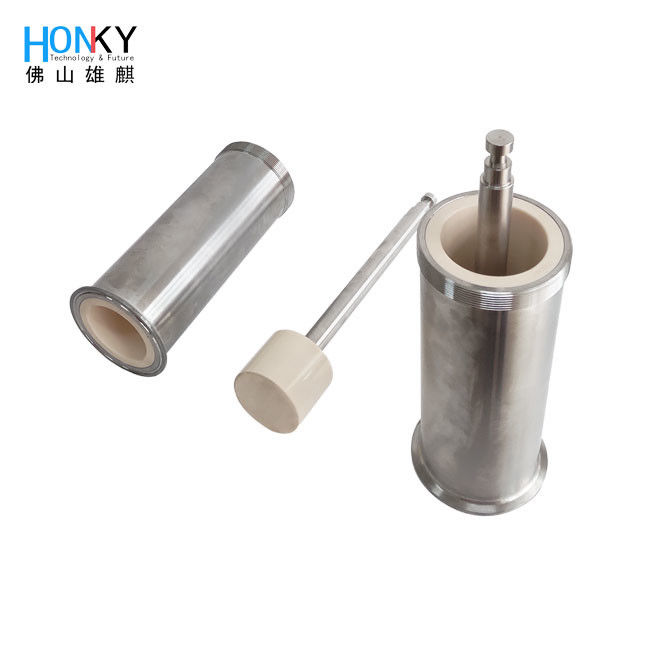

Product display of Single-way valve liquid ceramic filling pump

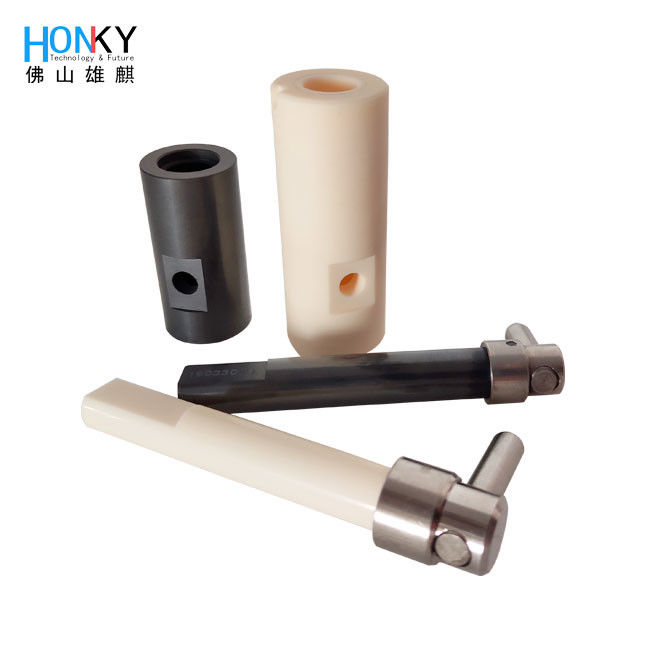

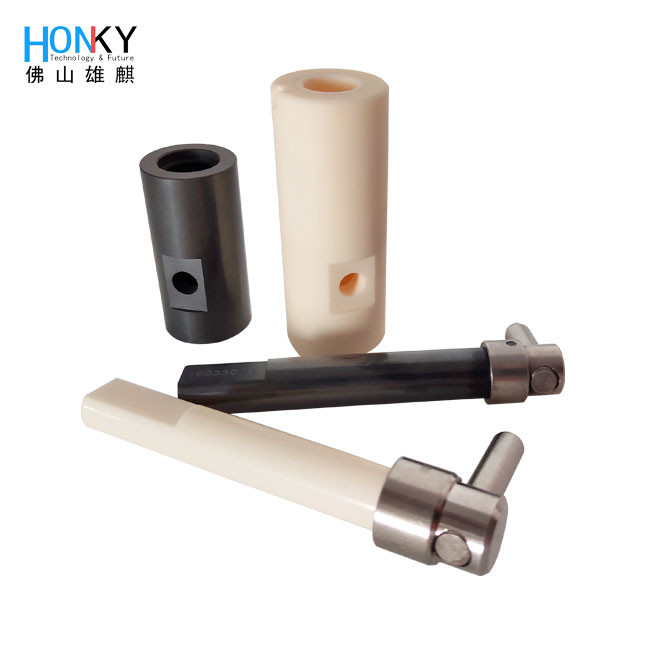

Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
