2400BPH Reagent Tube Filling And Capping Machine For Bio Liquid Packing
Desktop 2400BPH Reagent Tube Liquid Filling And Capping Machine with servo capping function designed specifically for bio liquid packaging applications.
Product Overview

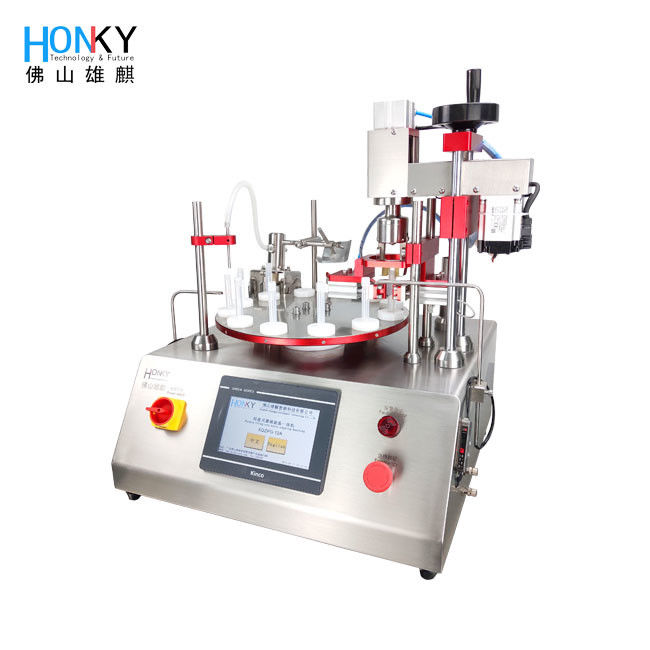

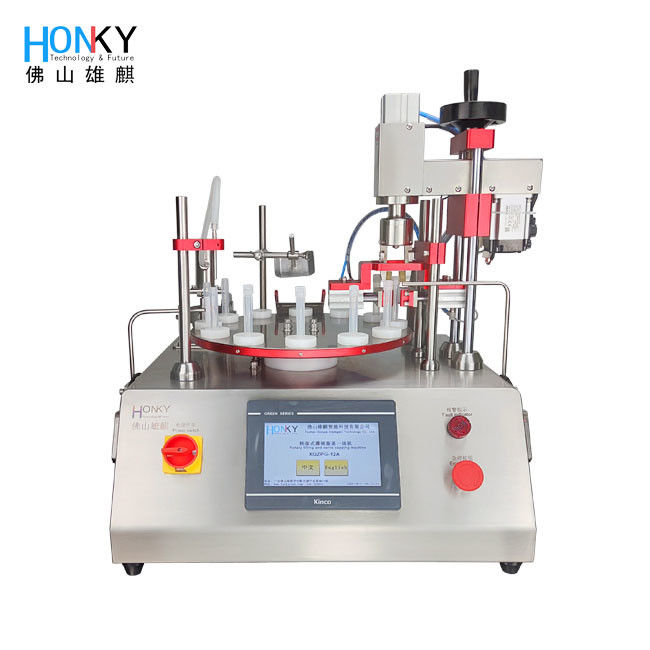

The XQZGX-12s features a compact desktop design specifically engineered for cryo tube and reagent filling applications. Constructed from 304 stainless steel for easy cleaning, this machine utilizes high-precision ceramic pumps to ensure exceptional filling accuracy at speeds up to 2400 bottles per hour. The bottle mold fast loading system enables quick and convenient bottle type changes.
Key Features
- GMP certification compliant design
- Intelligent touch operating system
- High-purity ceramic pump with precise volume control via pump head angle adjustment
- 304 stainless steel construction with desktop structure
- SERVO MOTOR torsional screwing for secure lid tightness
- Bottle mold fast loading system for quick bottle type changes
- German sensors for no-filling without bottle and no-capping without lids functionality
- Customizable plug or cover functions available
- Taiwan brand pneumatic components
Technical Specifications
| Model |
XQZXG-12S |
| Pump Type |
Ceramic pump |
| Filling Accuracy |
≤±0.5% |
| Filling Range |
0.2-2.9ml |
| Manufacturing Speed |
25-40 PCS / minute |
| Power |
AC 220V 50-60Hz 550W |
| Air Pressure |
0.4-0.6Mpa |
| Machine Size |
710×660×670mm (Main machine roughly) |
Machine Display
This equipment has been tested to meet the requirements of GMP certification.
The capping part adopts SERVO torsional screwing to ensure the tightness and no-damaging of the lid.

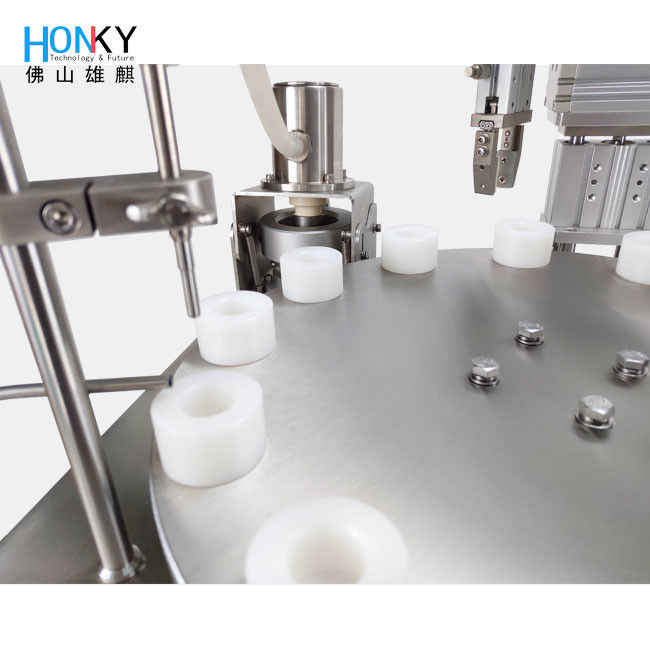

The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
Why Choose HonkyTech?
Rich Experience: Skilled engineering staff with many years of experience in the precision-filling industry.
Quality Assurance: Strict quality control system with CE approval and ROHS Certificate.
In Stock: Comprehensive inventory of ceramic pump parts, electronic components, and filling machine spare parts for immediate delivery.
Mature Technology: Numerous in-house service technicians and engineers ready to provide technical support.
Frequently Asked Questions
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine includes a 1-year warranty with lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We provide user manuals and videos for installation, debugging, and machine operation.
Q: What info will be needed to confirm machine models?
A: 1. The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
