Focus on the high-precision filling solutions.
The best quality products are for you to choose from.
Contact us: +8613178532062 honkyxq@aliyun.com
| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQQG |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 9500-9600 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Driven Mode: | Air Driven | Warranty: | 13 Months |
|---|---|---|---|
| Filling Speed: | 60 Times Per Minute | Air Pressure: | 0.41-0.6Mpa |
| Application: | Chemical Industry | Filling Range: | 3-30 Ml |
| Material: | Stainless Steel And Ceramic | Power: | No Need |
| Temperature Range: | 0-80℃ | ||
| Highlight: | Single Way Valve Ceramic Filling Pump,30ml Liquid Ceramic Filling Pump |
||
3-30ml Single Way Valve Liquid Ceramic Filling Pump With High Precision Ceramic Plunger And Piston Hibar pump system
3-30ml Single Way Valve Liquid Ceramic Filling Pump With High Precision Ceramic Plunger And Piston Hibar pump system
Characteristics of 3-30ml Single Way Valve Liquid Ceramic Filling Pump
HB-S ceramic pneumatic pump integration adopts precision plunger design, which is suitable for quantitative injection of low-viscosity liquids. The pump has high metering accuracy and repeatability, with an accuracy better than ±0.8%. The metal part in contact with the material is made of 316L stainless steel, which has better corrosion resistance.
Industry application of 3-30ml Single Way Valve Liquid Ceramic Filling Pump
It can be used for supporting and transforming the filling part of the packaging machine. It is suitable for filling low-viscosity homogeneous liquid materials such as electrolytes, medicinal liquids, biochemical reagents, chemical liquids, essential oils, essences, and perfumes. It can be used with packaging equipment such as multi-station bag packing machines, multi-column packaging machines, and blister machines.
Parameter of 3-30ml Single Way Valve Liquid Ceramic Filling Pump
| Model | Plunger diameter |
Stroke | Volume | Accuracy | Speed | Size of the pump(mm) | |||||
| ml | CPM | A | B | C | D | E | F | ||||
| HB-10S | 25 | 25 | 1-10 | ±0.5-1% | 50-60 | 308.90 | 77 | 179.05 | 91 | 35 | φ50.50 |
| HB-30S | 42 | 3-30 | 308.90 | 77 | 179.05 | 91 | 35 | φ50.50 | |||
| HB-50S | 54 | 5-50 | 308.90 | 77 | 179.05 | 91 | 35 | φ50.50 | |||
| HB-100S | 54 | 50 | 10-100 | 308.90 | 77 | 179.05 | 106 | 35 | φ50.50 | ||
| HB-200S | 60 | 90 | 20-200 | 450 | 97 | 199.05 | 106 | 35 | φ50.50 | ||
| HB-300S | 70 | 30-300 | 510 | 97 | 199.05 | 106 | 35 | φ50.50 | |||

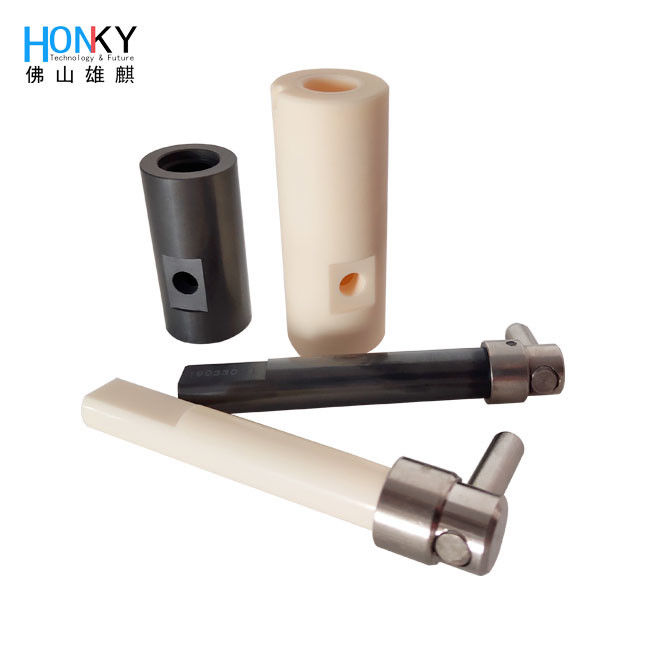

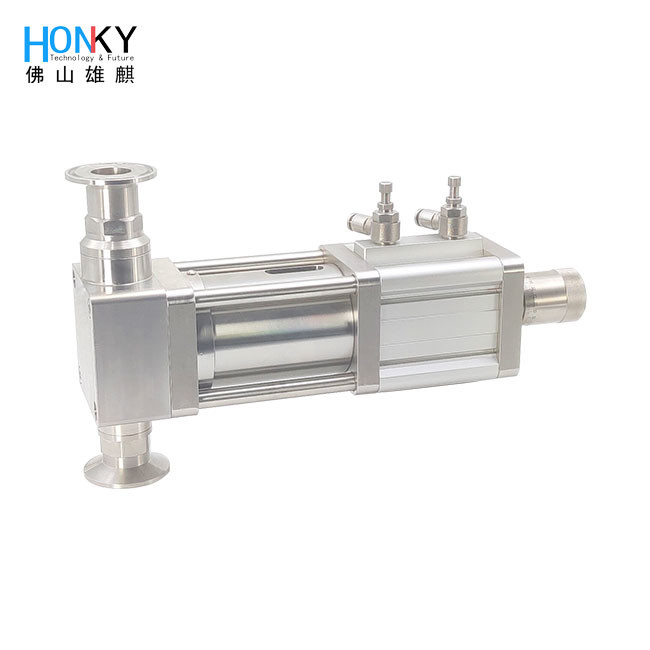

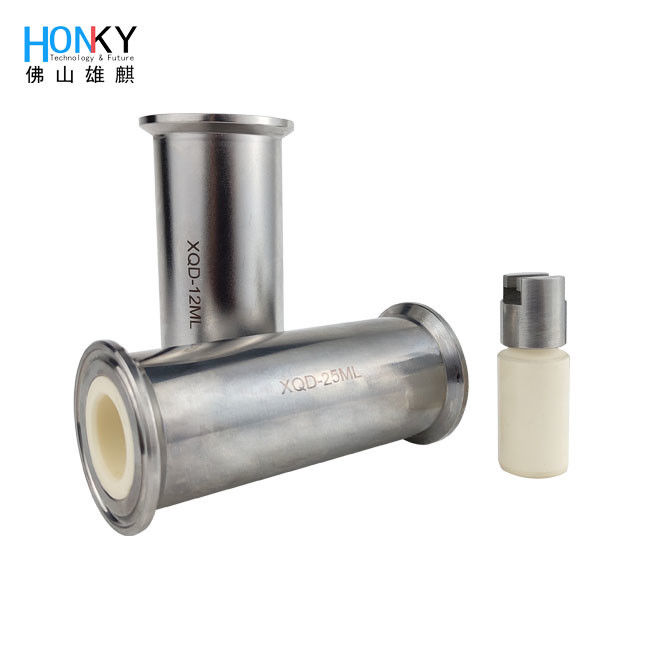

Product display of Single-way valve liquid ceramic filling pump
Advantages for using the ceramic:
1. Low Friction, Increased Packing Life
2. Extreme Wear Resistance
3. Increased Corrosion Resistance
4. Improved Anti-Galling Surface
