MiMicro scale Zin paste High Viscosity servo driven Ceramic Filling Pump 0.6 gram For Battery Zin paste fillingcro scale Zin paste High Viscosity servo driven Ceramic Filling Pump 0.6 gram For Battery Zin paste filling
HBD-R ceramic pneumatic pump integration adopts precision ceramic plunger design, suitable for medium and high viscosity liquids, homogeneous creams (1000-100,000CPS) and quantitative perfusion of materials containing certain particles. The pump has high metering accuracy and repeatability, with an accuracy better than ±0.8%. The metal part in contact with the material is made of 316L stainless steel, which has better corrosion resistance.
Industry application of Micro scale Zin paste High Viscosity servo driven Ceramic Filling Pump
1.Micro scale: The device uses micro-scale technology to ensure precise and efficient filling of zinc paste into the battery.
2.Ceramic material: The device is made of high-quality ceramic material, which provides good chemical resistance and wear resistance, ensuring long-term and stable operation in the harsh environment of battery production.
3.Filling accuracy: The device has high filling accuracy, which can accurately control the amount of zinc paste to be filled, and ensure the quality and performance of the battery.
4.Cleaning and sterilization: The device is easy to clean and sterilize, which can meet the hygiene requirements of battery production.
5.High efficiency: The device has a high filling efficiency, which can greatly improve the production efficiency of the battery.
Parameter of Micro scale Zin paste High Viscosity servo driven Ceramic Filling Pump
|
Model
|
Plunger diameter
|
Stroke
|
Volume |
Accuracy
|
Speed |
| ml |
CPM |
| HBD-0.6R |
8 |
25 |
0-0.63 |
±0.5-1% |
30-45 |
| HBD-1R |
11 |
0-1.2 |
| HBD-2R |
16 |
0-2.5 |
| HBD-7R |
19 |
0-7 |

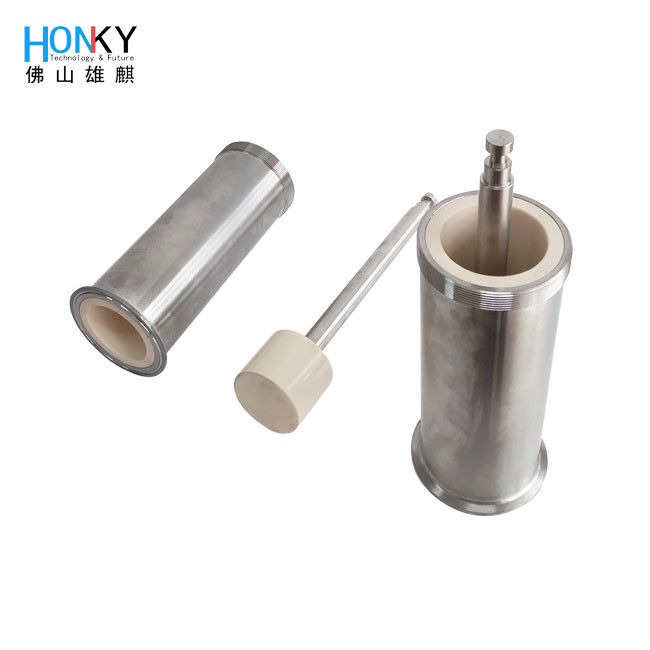

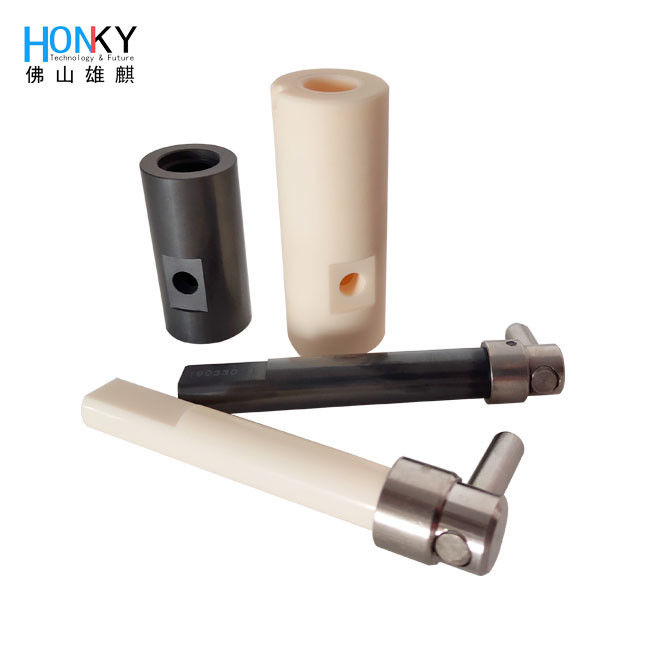

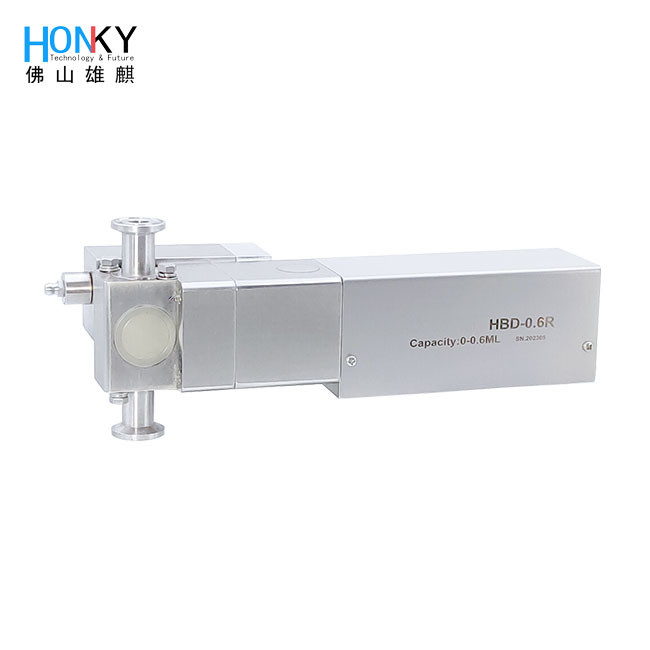

Product display of Micro scale Zin paste High Viscosity servo driven Ceramic Filling Pump
