| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQXG-70A |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Product Function: | Bottle Filling And Capping | Pump Filling Range: | 0.65-6 Ml |
|---|---|---|---|
| Power Range: | AC 220V 50-60Hz 550W | Air Range: | 0.46-0.6 MPa |
| Packing Speed: | 2390 Bottle Per Hour | Appearance: | 304 Stainless Steel And Luminum Alloy |
| Filling Material: | Bio Reagent | Bottle Type: | 2ml Reagent Or More |
| Driven Mode: | Electric And Air | Filling Pump: | XQX2 Ceramic Pump |
| Highlight: | 2ml Bottle Filling And Capping Machine,Reagent Bottle Filling And Capping Machine,Semi Automatic Bottle Filling Machine |
||
Semi Automatic 2ml Bio-Reagent Bottle Filling And Capping Machine With High Precision Filling Pump For Reagent Kit FillSemi Automatic 2ml Bio-Reagent Bottle Filling And Capping Machine With High Precision Filling Pump For Reagent Kit Fill
Features of Semi Automatic 2ml Bio-Reagent Bottle Filling And Capping Machine
A semi-automatic 2ml bio-reagent bottle filling and capping machine is a device used for filling bio-reagents into 2ml bottles and sealing them with caps. It is commonly used in laboratories and other medical and pharmaceutical applications.
Some of the common features and characteristics of a semi-automatic 2ml bio-reagent bottle filling and capping machine include:
1.Semi-automatic operation: The machine operates with the assistance of an operator, who typically loads the empty bio-reagent bottles onto the machine and initiates the filling and capping process. The machine automatically fills the bottles with the bio-reagent and seals them with caps, reducing the need for manual intervention.
2.Precision filling: The machine is equipped with precision pumps and meters to ensure accurate and consistent filling of the bio-reagent into the bottles. This helps to maintain the quality and consistency of the bio-reagents.
3.Material compatibility: The machine is made of materials that are chemically inert and compatible with the various bio-reagents used. This ensures that the machine does not react with the bio-reagent and does not affect its quality or properties.
4.Safety features: The machine is equipped with safety features to protect operators and minimize the risk of spillage or contamination. This may include features such as leak-proof design, sealed chambers, and automatic stoppages in case of malfunctions.
5.Easy cleaning and maintenance: The machine is designed for easy cleaning and maintenance, allowing operators to clean and maintain the machine efficiently, ensuring its operational reliability and longevity.
Characteristic of Semi Automatic 2ml Bio-Reagent Bottle Filling And Capping Machine
This equipment has been tested to meet the requirements of GMP certification.
1. The intelligent touch operating system is adopted.
2. The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
3. 304 stainless steel appearance, desktop structure, practical and convenient.
4. The capping part adopts SERVO torsional screwing to ensure the tightness and no-damaging of the lid.
5. the machine adopts bottle mold fast loading method, different bottle type can be exchanged quickly and conveniently.
6. The device adopts German sensor to achieve the functions of no filling without bottle, no capping without lids.
7. Additional plug or cover functions can be customized as required.
8. Taiwan brand pneumatic components are adopted.
Technical data of Semi Automatic 2ml Bio-Reagent Bottle Filling And Capping Machine
| Model | XQXG-70A |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±0.5% |
| Filling range | 0.6-6ml |
| Manufacturing speed | 25-30 PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 710*660*670mm (Main machine roughly) |

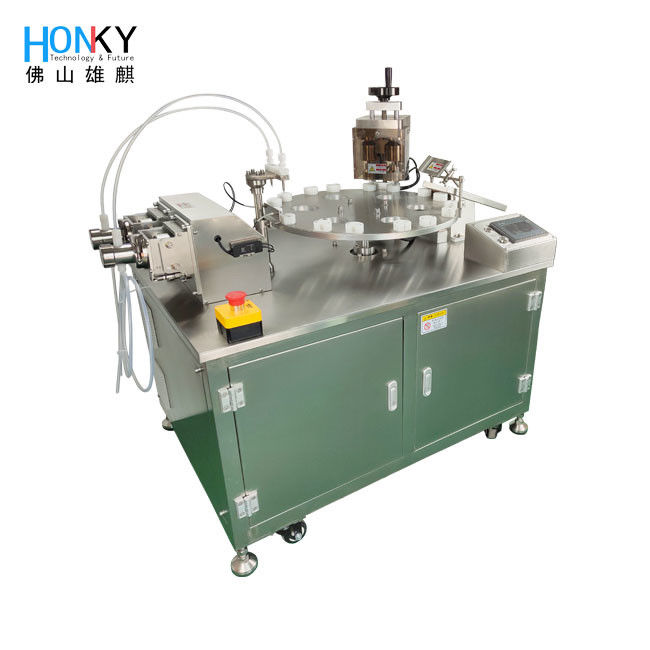

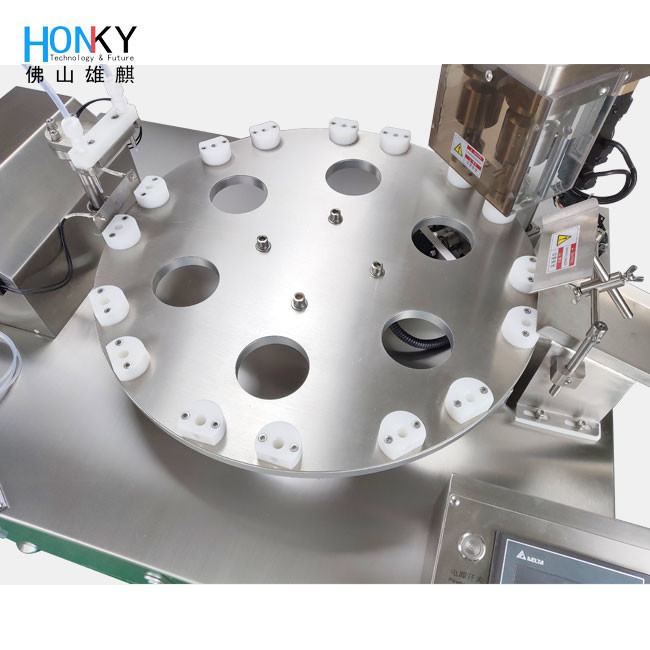

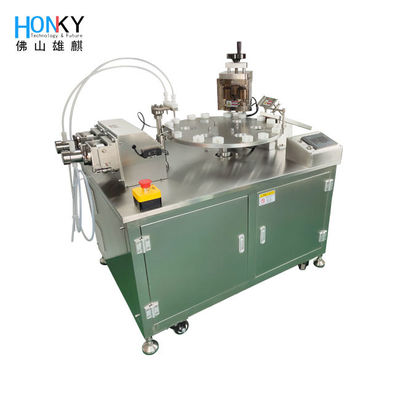

Product display of Semi Automatic 2ml Bio-Reagent Bottle Filling And Capping Machine
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easily.
The capping part adopts SERVO torsional screwing to ensure the tightness and no-damaging of the lid.
Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.
Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.
Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.
Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
