| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQGM-30A |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（130*85*75cm 125KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Filling Range: | 0.6-6 Ml | Packing Speed: | 26-30 Bottle Per Minute |
|---|---|---|---|
| Filling Material: | Pharma Liquid | Bottle Type: | 3ml Glass Vial |
| Machine Dimension: | 120*100*75cm | Machine Weight: | 200Kg |
| Air Consumption: | 0.3m3/min | Air Pressure: | 0.5-0.8MPa |
| Bottle Diameter: | φ16-φ24mm | Noise: | ≤80dB |
| Highlight: | 3ml Glass Vial Filling Capping Machine,Desktop Automatic Vial Filling Capping Machine,Desktop Pharma Liquid Vial Packing Machine |
||
Desktop Automatic 3ml Glass Vial Filling Capping Machine With High Precision Filling Pump For Pharma Liquid Vial Packing
Desktop Automatic 3ml Glass Vial Filling Capping Machine With High Precision Filling Pump For Pharma Liquid Vial Packing
Characteristic of Desktop Automatic 3ml Glass Vial Filling Capping Machine
Design and use: The equipment is designed to be used in pharmaceutical, biotechnology, research laboratories and other places, and is used for automated filling and sealing of small glass bottles.
It can improve production efficiency, reduce manual operation, and ensure consistent filling and capping quality.
This equipment has been tested to meet the requirements of GMP certification.
1. the intelligent operating system is adopted.
2. The liquid filling part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
3. 304 stainless steel appearance, desktop structure, practical and convenient.
4. Riveting part adopts special material coating hardening treatment, which has long service life.
5. The equipment is fast installed by mould, and it can be replaced conveniently between different bottle types.
6. This device adopts the German sensor to achieve the functions of no filling without bottle, no rivet cover without lids.
7. Automatic plug loading and cap loading are adopted to realize the full automatic functions.
Technical data of Desktop Automatic 3ml Glass Vial Filling Capping Machine
| Model | XQGM-30B | |||
| Filling range | 0.2-6ml | 1-12ml | 2-25ml | |
| Filling accuracy | ≤0. 5% | |||
| sealing diameter | φ13mm / φ15mm / φ20mm | |||
| Manufacturing speed | 25 PCS/min | |||
| Power | AC 220V 50-60Hz 1500W | |||
| Air pressure | 0.4-0.5Mpa | |||
| Size of Host Machine | 1230*800*750(mm) | |||

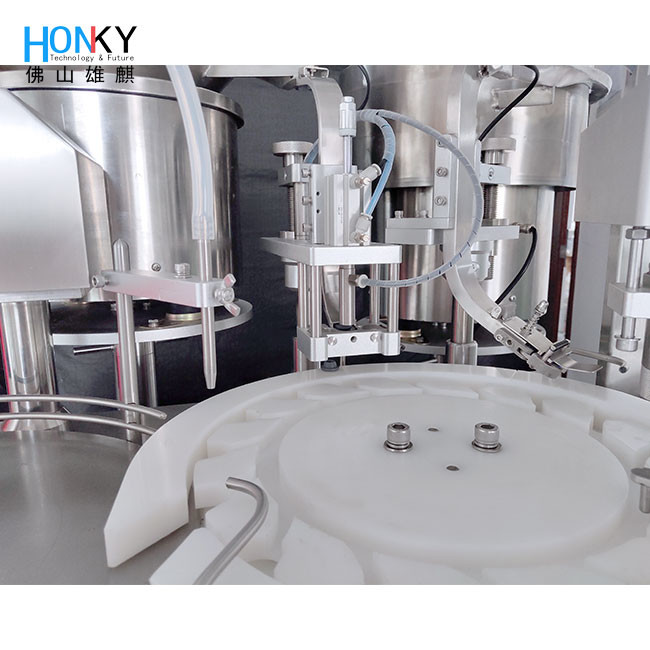

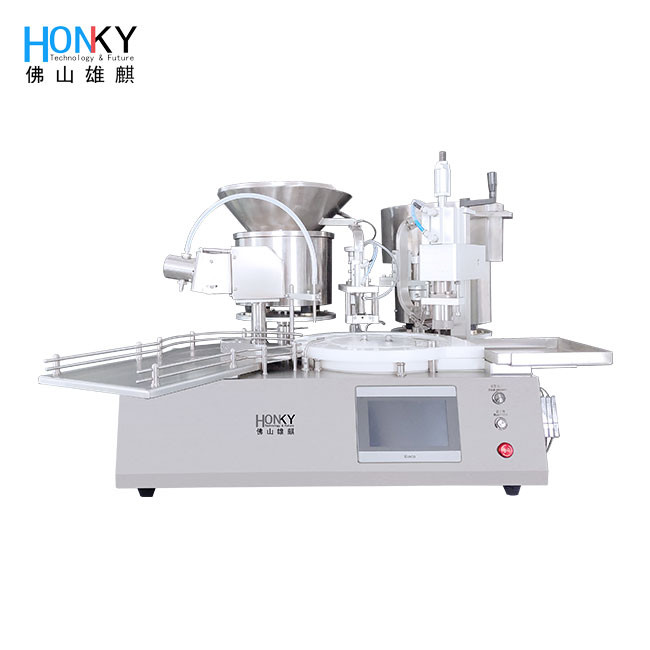

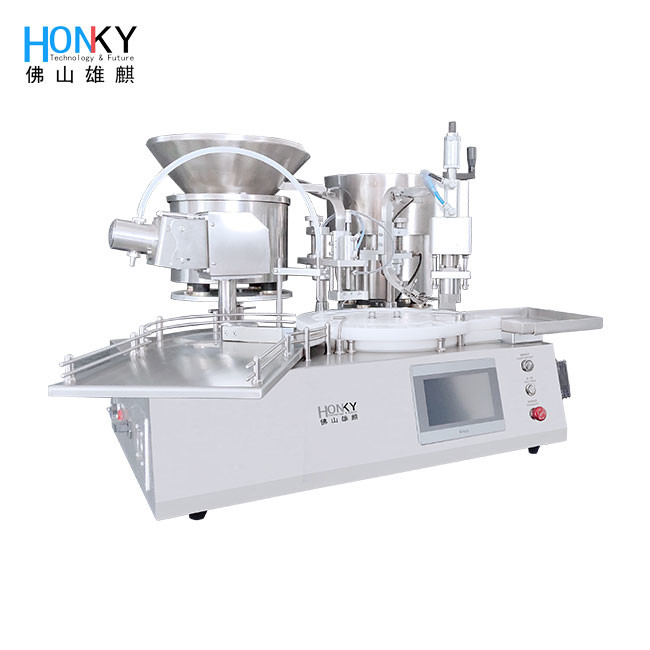

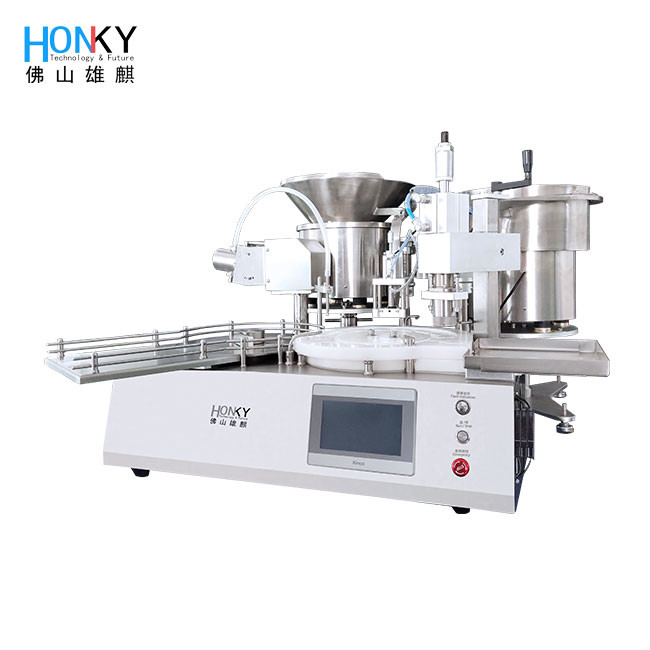

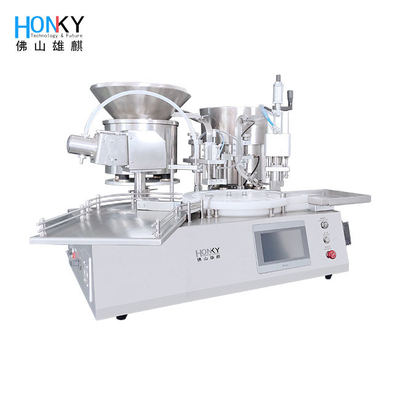

Product Display of Desktop Automatic 3ml Glass Vial Filling Capping Machine
This equipment has been tested to meet the requirements of GMP certification.
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.
Fully desktop design to make operation easy.
