| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQET-4S |
| Minimum Order Quantity: | 1 |
| Price: | USD 20000-25000/ SET |
| Packaging Details: | Wooden packing（76*76*83cm 90KG） |
| Delivery Time: | 20 days |
| Payment Terms: | T/T |
| Supply Ability: | 50 SET per Month |
| Function: | Filling And Sealing | Pump Filling Range: | 0.1-10ml |
|---|---|---|---|
| Packing Speed: | 50-60 Bottle Per Minute | Working For: | Extration Tube |
| Pump Type: | Ceramic Pistion Pump | Size: | 92*122*132cm |
| Display Screen: | Touch Screen | Filling Accuracy: | ≤±1% |
| Material: | Stainless Steel And Aluminum Alloy | Power Supply: | 220V/50HZ |
| Highlight: | 0.1ml Extraction Tube Filling Machine,Multi Function Extraction Tube Filling Machine |
||
Fully-Automatic 0.1ml Extraction Tube Filling Machine With Multi-Function For Antigen Self Test TubeFully-Automatic 0.1ml Extraction Tube Filling Machine With Multi-Function For Antigen Self Test Tube
XQET-4S works for Fully automatic extraction tube filling and film sealing with a rotary tray structure. The sealing part is the high precision aluminum foil sealing structure, which is simple and efficient and the torque is adjustable. High-precision ceramic metering pumps are applied to ensure filling accuracy within ±1%. The whole machine has a compact design to save space and fit for the GMP workshop standard.
Characteristic of Fully-Automatic 0.1ml Extraction Tube Filling Machine
This equipment has been tested to meet the requirements of GMP certification.
1. The intelligent touch operating system is adopted in Reagent tube Filler.
2. the machine adopts bottle mold fast loading method, different bottle type can be exchanged quickly and conveniently.
3. The device adopts German sensor to achieve the functions of no filling without bottle, no capping without lids.
4. Additional plug or cover functions can be customized as required.
5. Taiwan brand pneumatic components are adopted.
Technical data of Fully-Automatic 0.1ml Extraction Tube Filling Machine
| Model | XQET-4S |
| Pump type | Ceramic pump |
| Filling accuracy | ≦±1% |
| Filling range | 0.01-1 ml |
| Manufacturing speed | 60 PCS / minute |
| Power | AC 220V 50-60Hz 550W |
| Air pressure | 0.4-0.6Mpa |
| Machine size | 90*120*130cm (Main machine roughly) |

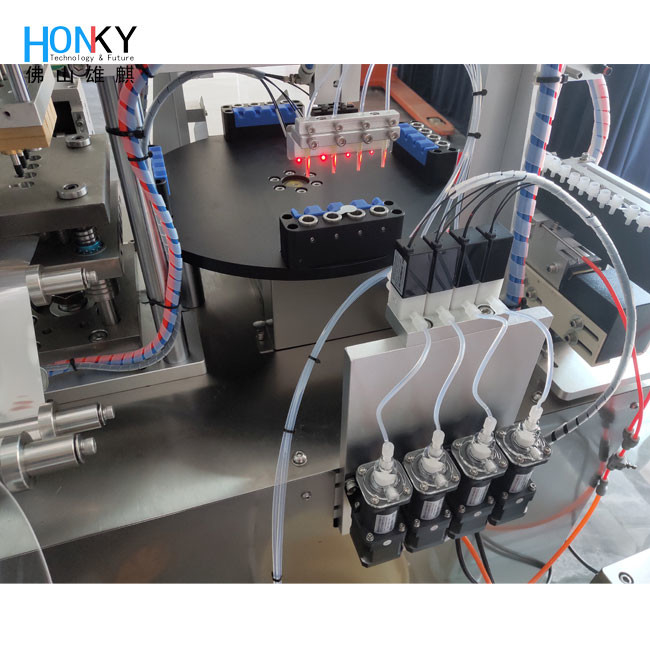

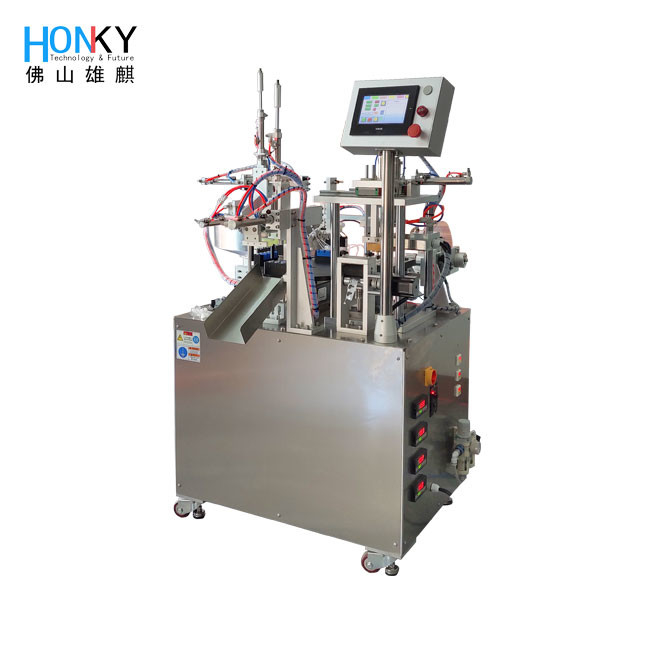

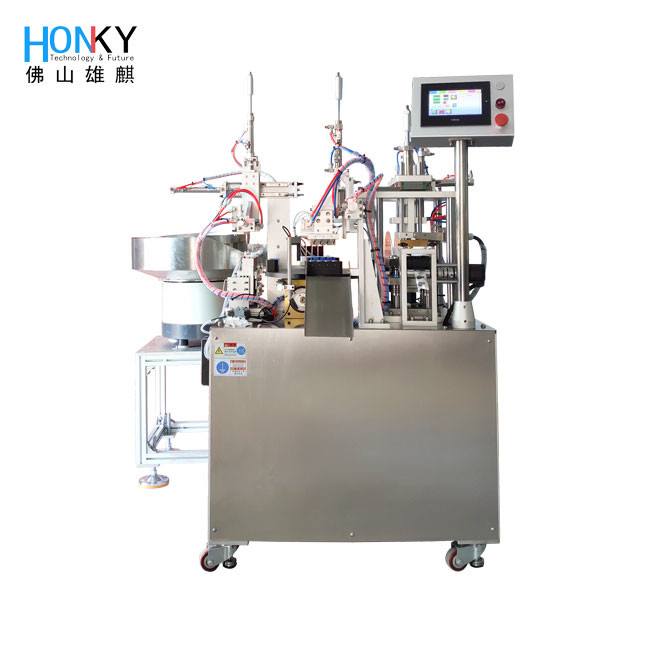

Product display
This equipment has been tested to meet the requirements of GMP certification.

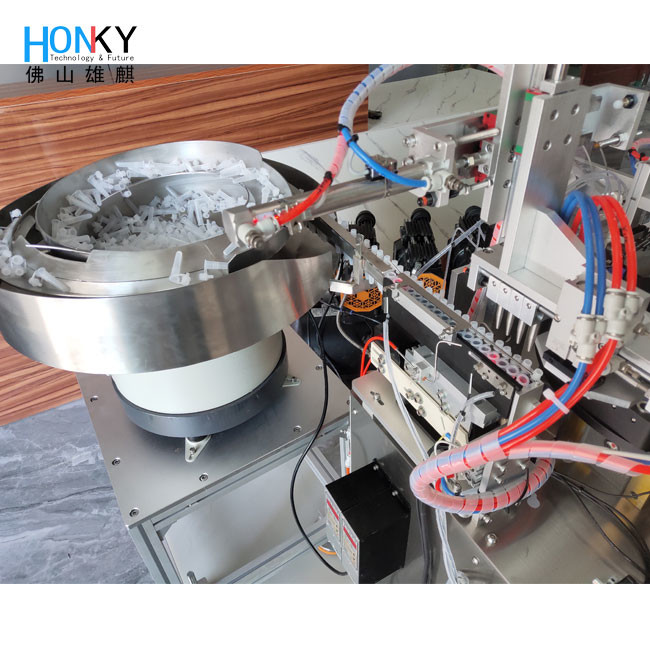

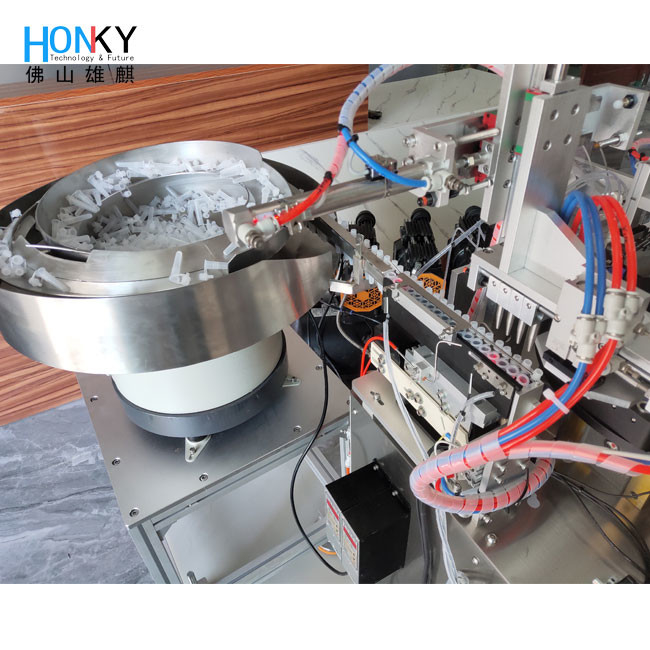

Automatic bottle feeding to make sure the speed and filling save the labor.
Finished product showing
