| Place of Origin: | China |
|---|---|
| Brand Name: | XQ |
| Certification: | CE |
| Model Number: | XQX1/X2 system |
| Minimum Order Quantity: | 1 SET |
| Price: | USD 500-2000 Per Set |
| Packaging Details: | Wooden Packing |
| Delivery Time: | 10 days |
| Payment Terms: | T/T |
| Supply Ability: | 100 Sets per month |
| Filling Area: | Lithium Battery Liquid | Filling Range: | 50ml |
|---|---|---|---|
| Material Contact Part: | Stainless Steel 316L And High Purity Ceramic | Ceramic Part Material: | High Purity Alumina |
| Suitable For: | Filling Machine Upgrading | Volume Adjustment: | Automatic Adjusting |
| Highlight: | 50ml Ceramic Filling Pump,Automatic Adjusting 50ml Ceramic Filling Pump |
||
Automatic Adjusting 50ml Ceramic Filling Pump With High Precision For Lithium Battery Liquid DispensingAutomatic Adjusting 50ml Ceramic Filling Pump with high precision For Lithium Battery Liquid Dispensing
Features of Automatic Adjusting 50ml Ceramic Filling Pump
X2-L-N Series Ceramic Pump Integration is a type of precision metering pump that utilizes the rotary motion of a plunger to meter or deliver chemical liquids and high-purity fluids with high accuracy and repeatability. The axial linear motion is generated based on the adjustable pump head angle during the plunger's rotation, enabling precise stroke adjustment to control input and output. This series of metering pumps achieves a very high level of metering accuracy and repeatability, with an accuracy better than ±0.5%.
1. The metal part of the contact material is made of 316 stainless steel, the pump body has better corrosion resistance.
2. This series of metering pumps have very high metering accuracy and repeat consistency, and the accuracy is better than plus or minus five thousandths.
3. The X1 series is based on the lateral differential angle, and the adjustment is more sensitive. The X2 series is the most widely used and has a simple structure.
4. The X1/X2 SYSTEM series is an implanted device that integrates the X1/X2 series ceramic pump and control system, with reasonable structure, compact design, and simple operation. It is an ideal matching solution for high-end packaging equipment.
Parameter of Automatic Adjusting 50ml Ceramic Filling Pump
| Item No. | -3 | -6 | -9 | -12 | -15 | -18 | -21 | -24 | -27 |
| Pump Material | Ceramic parts: high purity alumina(Al2O3), zirconia(ZrO2), silicon carbide(SiC), etc |
||||||||
Metal part: 316L stainless steel |
|||||||||
| Filling Range | 4-80ul | 10-140ul | 20-240ul | 50-700ul | 0.2-1.5ml | 0.2-2.9ml | 0.6-6ml | 1-12ml | 2-25ml |
| Bore Diameter | Φ4 | Φ5 | Φ7 | Φ10 | Φ13 | Φ15 | Φ22 | Φ25 | Φ36 |
RPM |
450 | 350 | 300 | 250 | 200 | ||||
| Accuracy | Better than ±0.5% | ||||||||
| Motor Type | 2 phase 4 line No.42 | 2 phase 4 line No.57 | 2 phase 4 line No.86 | ||||||
| Power Supply | AC220V 50/60Hz (110V can be customized) | ||||||||
| Power Rate | 75w | 75w | 75w | 150w | 150w | 150w | 240w | 240w | 240w |

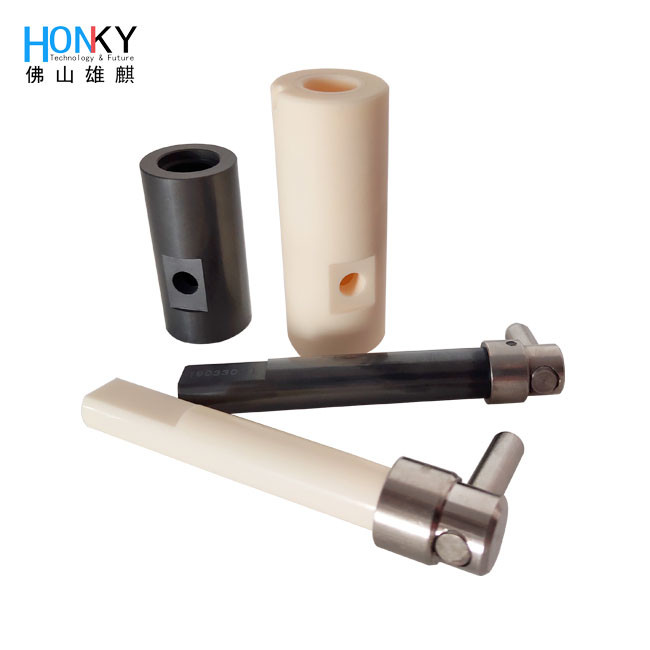

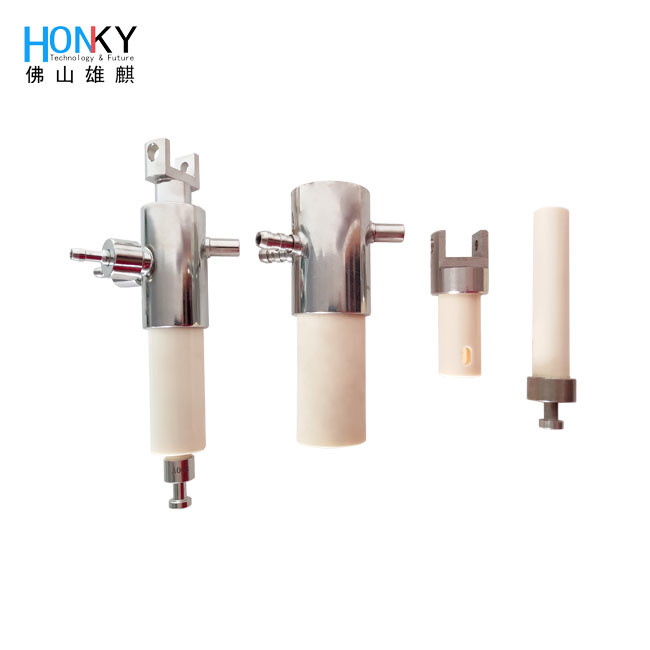

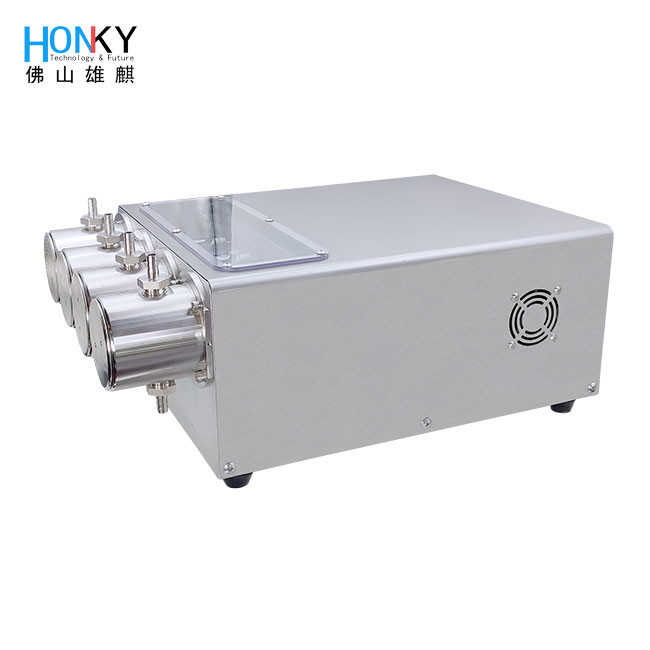

Product display of Automatic Adjusting 50ml Ceramic Filling Pump
About HonkyTech
Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.
Why choose HonkyTech?
Rich Experience
There is skilled engineering staff with many years of experience, many of them have been engaging in this precision-filling industry for many years.
Quality Assurance
With a strict and effective quality control system, our products are CE approved, and we have ROHS Certificate.
In Stock
We keep stock of ceramic pump parts, electronic components, filling machine spare parts, etc. ready for immediate delivery.
Mature Technology
With numerous in-house service technicians and engineers, HONKY is ready to assist when you need technical support.
