Desktop 10ml Roller Ball Tube Filling And Capping Machine With High Precision Filling Pump

Desktop 10ml Roller Ball Tube Filling And Capping Machine With High Precision Filling Pump

10ml Tube Filling And Capping Machine

Desktop Tube Filling And Capping Machine

Place of Origin:

China

Brand Name:

XQ

Certification:

CE

Model Number:

XQZGD-12B

Contact Us
Request A Quote
Product Details
Filling Range:
1-11ml
Filling Speed:
2390 BPH
Warranty:
13 Months
Filling Material:
Perfume Or Essential Oil
Pump Type:
XQX2 Ceramic Pump
After-sales Service Provided:
Video Technical Support,Online Support
Machine Size:
61*76*51cm
Air Consumption:
0.3m³/min
Air Pressure:
0.4-0.6Mpa
Control System:
PLC
Highlight:

10ml Tube Filling And Capping Machine

,

Desktop Tube Filling And Capping Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
USD 20000-25000/ SET
Packaging Details
Wooden packing(76*76*83cm 90KG)
Delivery Time
20 days
Payment Terms
T/T
Supply Ability
50 SET per Month
Product Description

DDesktop Semi Automatic 10ml Roller Ball Tube Filling And Capping Machine With High Precision Filling Pump For Cosmeticesktop Semi Automatic 10ml roller ball tube filling and capping machine with high precision filling pump for cosmetic



Characteristic of Desktop Semi Automatic 10ml roller ball tube filling and capping machine

This equipment has been tested to meet the requirements of GMP certification. The intelligent touch screen and self-developed operating system are adopted to make the operation easy. The filling part adopts the XQX2 high purity ceramic pump, which controls the filling accuracy within ±0.5%. 304 stainless steel is applied for the appearance, which has good behavior in corrosive resistance. It adopts the bottle mold fast loading method, different bottle types can be changed quickly and conveniently. This device adopts German electric eye detection to achieve the function of bottling without filling. The Pneumatic components adopt Taiwan brand.



Technical data of Desktop Semi Automatic 10ml roller ball tube filling and capping machine

Model XQZGD-12B
Pump type Ceramic pump
Filling accuracy ≦±0.5%
Filling range 0.6-6ml
Manufacturing speed 25-30 PCS / minute
Power AC 220V 50-60Hz 550W
Air pressure 0.4-0.6Mpa
Machine size 710*660*670mm (Main machine roughly)


Product display of Desktop Semi Automatic 10ml roller ball tube filling and capping machine
2400BPH Plastic Ampoule Semi-Automatic Desktop Filling And Capping Machine With Ceramic Pump For Cosmetic

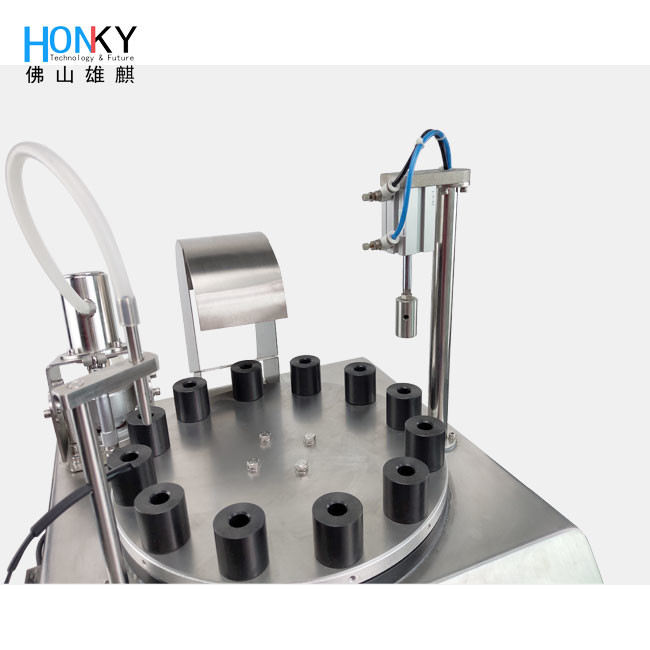

Desktop 10ml Roller Ball Tube Filling And Capping Machine With High Precision Filling Pump 0
This equipment has been tested to meet the requirements of GMP certification.

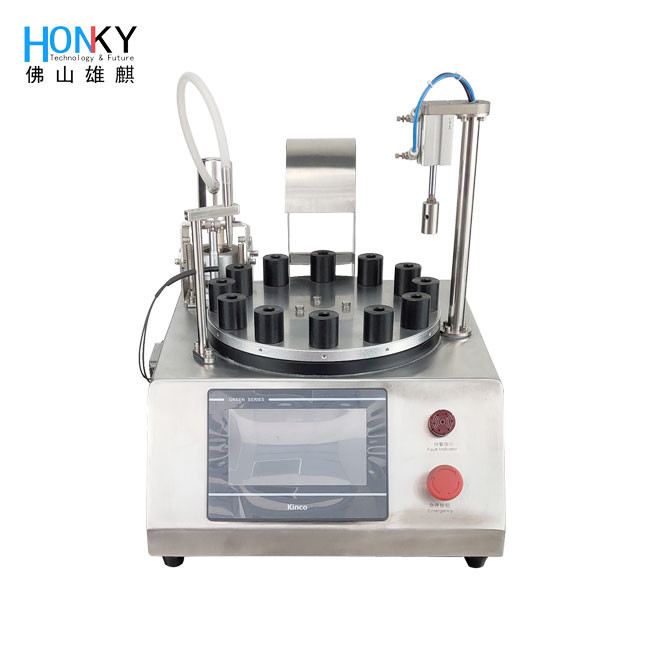

Desktop 10ml Roller Ball Tube Filling And Capping Machine With High Precision Filling Pump 1
The separation part adopts high purity ceramic pump, which controls the injection volume of each lap by adjusting the angle of the pump head, and has extremely high measuring accuracy and repeated consistency.

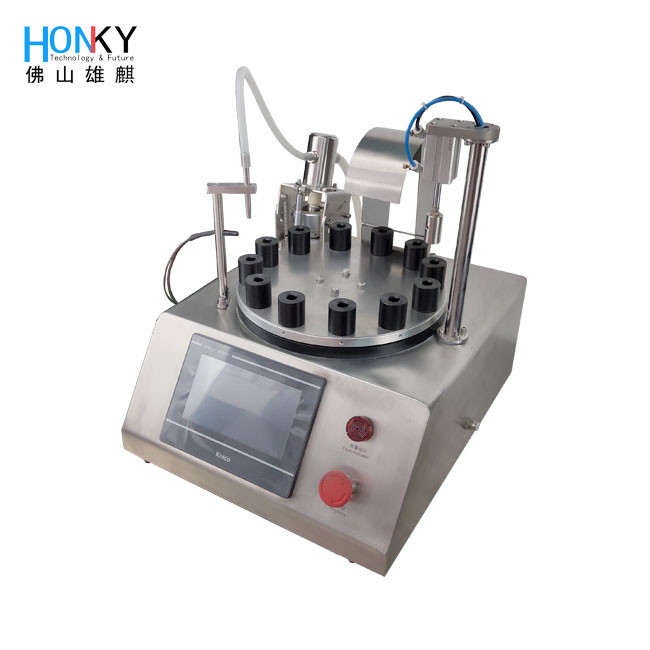

Desktop 10ml Roller Ball Tube Filling And Capping Machine With High Precision Filling Pump 2
Fully desktop design to make operation easy.

About HonkyTech

Foshan Xiongqi Intelligent Technology Co., Ltd(HONKY) is a leading manufacturer of all kinds of fluid filling solutions. The main products contain the ceramic pump, ceramic pump filling line series, ceramic pump spare parts or filling equipment, filling solution ODM, etc. Our products have a good reputation for quality, reliability, and efficiency.

Q & A
Q: Do you offer OEM services, I am a distributor from overseas?
A: Yes, we can offer both OEM Services and technical support. Welcome to start your OEM business.

Q: How about the after-sales service?
A: The machine is a 1-year warranty. And we offer lifetime after-sale service and technical support.

Q: What are your Installation Services?
A: Installation Services are available with all new machine purchases. We will provide the user manual and videos to support installing, debugging, operation of the machine, which will indicate to you how to use this machine well.

Q: What info will be needed to confirm machine models?
A: 1.The material status.
2. Filling range.
3. Manufacturing speed.
4. Requirements for the production process.
